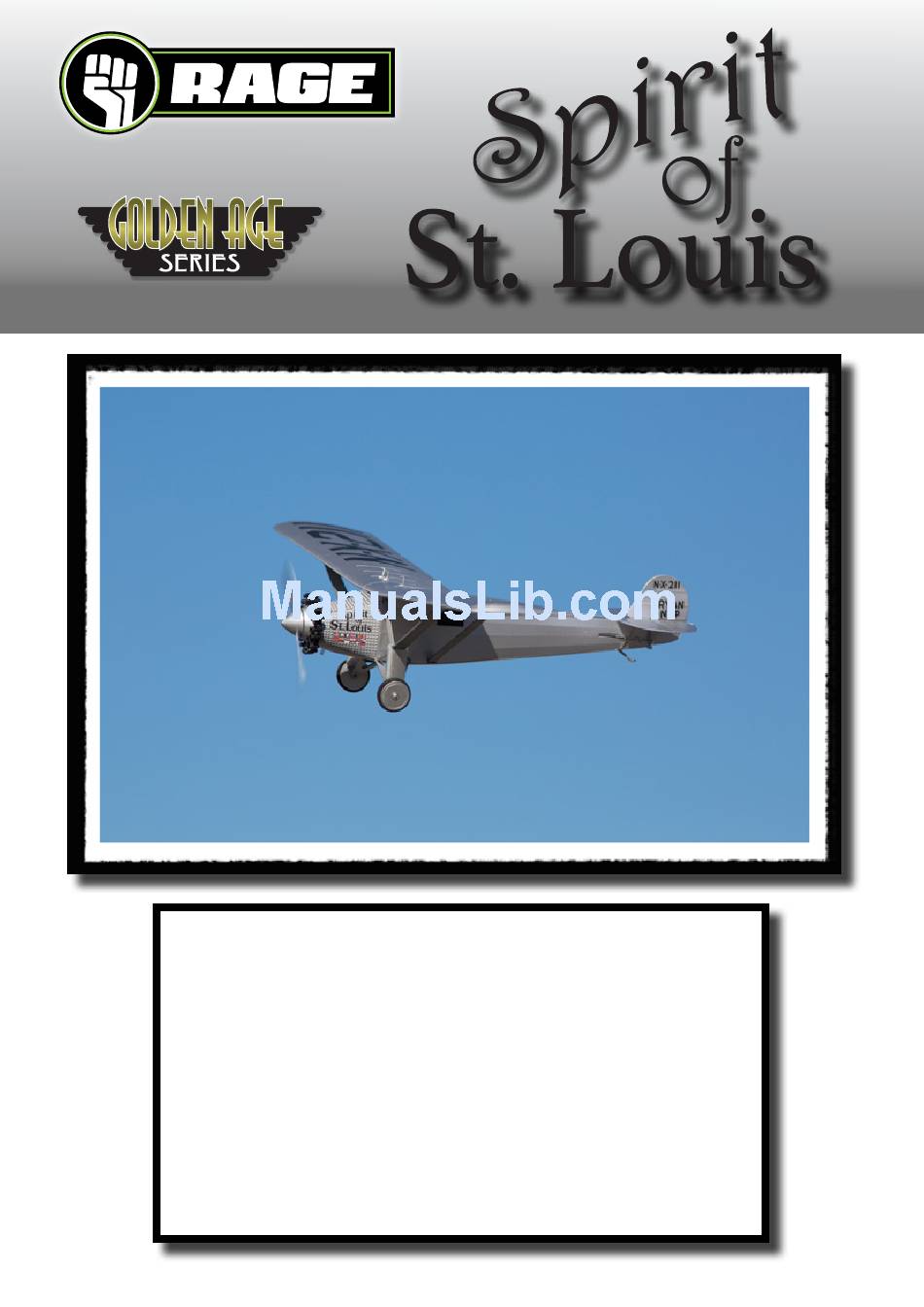

Page 1: Instruction Manual
Instruction Manual Wingspan 22.75 in. (578mm) Wing Chord 7.50 in. (190.5mm) Wing Area 75.5 sq. in. Length 13.75 in (349mm) Flying Weight 1.5 oz. (41 grams) Battery 1S 3.7V 150mAh LiPo 3-in-1 Board 2.4Ghz Rx, ESC, 2 Servos Prop 4.7x2.75 (120x70mm) -
Page 2: Table Of Contents
Table of Contents Table of Contents ����������������������������������������������������������������������������������������������������� 2 Introduction �������������������������������������������������������������������������������������������������������������� 2 Safety Precautions ��������������������������������������������������������������������������������������������������� 3 General Precautions ������������������������������������������������������������������������������������������������ 3 FCC Information ������������������������������������������������������������������������������������������������������� 3 Spirit of St� Louis RTF Contents ����������������������������������������������������������������������������� 4 LiPo Battery Warning ����������������������������������������������������������������������������������������������� 4 Center of Gravity ������������������������������������������������������������������������������������������������������ 4 Charging Flight Battery ��������������������������������������������������������������������������������������������... -
Page 3: Safety Precautions
Safety Precautions Failure to use this product in the intended manner as described in the following instruction can result in damage and/or personal injury. A Radio Controlled (RC) airplane/helicopter/quadcopter is not a toy! If misused it can cause serious bodily harm and damage to property. Keep items that could become entangled away from the propeller, including loose clothing, tools, etc. -
Page 4: Spirit Of St. Louis Rtf Contents
Spirit of St. Louis RTF Contents The Spirit of St. Louis comes completely built and ready for flight. All that is required is to install the included AA batteries in the 2.4Ghz transmitter and charge the LiPo flight battery from the included charge connector on the transmitter. LiPo Battery Warning IMPORTANT NOTE: Lithium Polymer batteries are significantly more volatile than the alkaline, NiCd or NiMH batteries also used in RC applications�... -
Page 5: Charging Flight Battery
Charging Flight Battery Open door on lower left of transmitter Move charge plug out and close door Yellow Charge Light Plug flight battery into charge plug. Make sure to The yellow charge light on the transmitter maintain correct polarity by aligning the red dots lights during charging. -
Page 6: Prop Replacement
Prop Replacement If your prop becomes damaged and needs to be replaced, gently pry the spinner free from the prop. A thin piece of plastic like a credit card works well. Spin the prop off of the shaft in a counter clockwise direction when viewed from the front. -
Page 7: Control Functions
Control Functions Up Elevator When the right stick is moved toward the bottom of the transmitter the elevator on the airplane moves up. This raises the nose of the airplane. Down Elevator When the right stick is moved toward the top of the transmitter the elevator on the airplane moves down. -
Page 8: Flying
Flying The Spirit of St. Louis is a very light airframe and intended primarily for indoor flying. It can also be flown outdoors when the conditions are suitable. This would be when thare is very little wind, usually early in the morning or just before sunset. Flight times are 5 minutes+ depending on throttle use. The airplane will take off and land on its wheels or can be hand launched. -
Page 9: Warranty
Purchaser’s Remedy - Rage R/C’s sole obligation and purchaser’s sole and exclusive remedy shall be that Rage R/C will, at its option, either (a) service, or (b) replace, any Product determined by Rage R/C to be defective. Rage R/C reserves the right to inspect any and all Product(s) involved in a warranty claim. Ser- vice or replacement decisions are at the sole discretion of Rage R/C. - Page 10 HRP Distributing, Inc...
