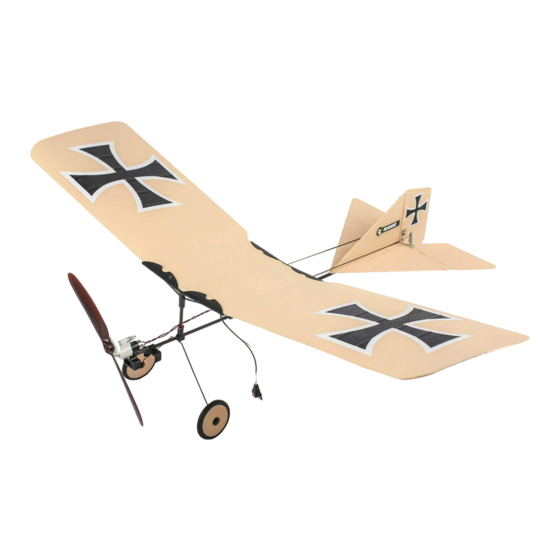

Versatile and Nostalgic Flying Fun
Wingspan:
Length:
Flying Weight:
Battery:
Motor:
On-Board Electronics:
Wing Area:
Transmitter:
Specifications
16-5/8" (422.3mm)
14-3/4" (374.7mm)
1 oz. (28g)
3.7V 1S 150mAh LiPo
Brushed w/Gearbox
4-in-1 Receiver (2 Servos/ESC)
75 sq.in. (4.84 dm/sq)
4-Channel 2.4GHz w/Integrated LiPo Charger
