Summary of Contents for Rage Super Cub 750
-

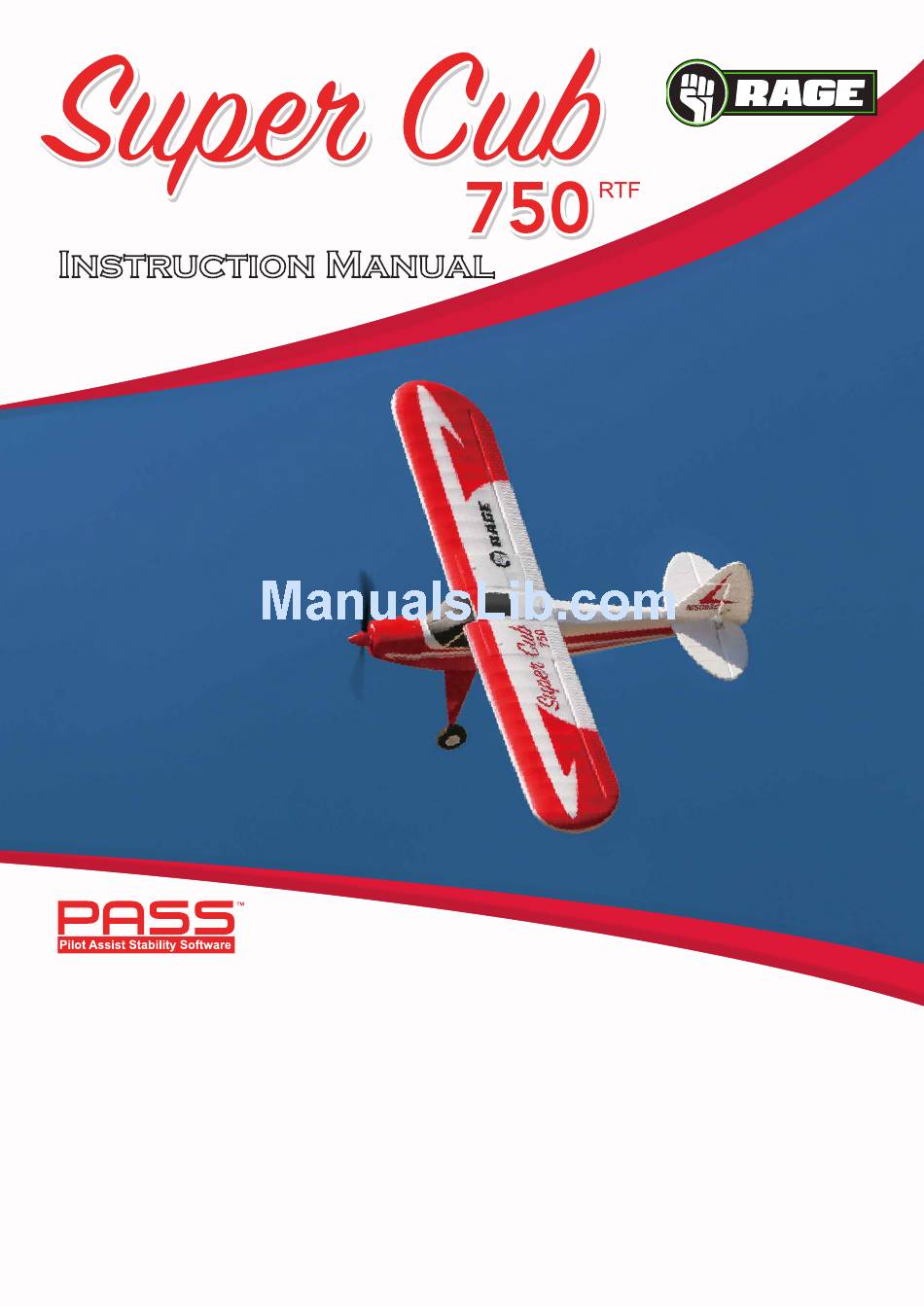

Page 1: Specifications
Specifications Wingspan: 750mm (29.52 inches) Length: 520mm (20.47 inches) Flying Weight: 210g (7.40 oz.) Battery: 7.4V 2S 500mAh LiPo Motor: 180 Brushed/Geared ESC: 10A Brushed Charger: USB 2S LiPo Charger Gyro: PASS (Pilot Assist Stability Software) Transmitter: 2.4 GHz 4 channel... -
Page 2: Table Of Contents
Table of Contents General Precautions Super Cub Story Safety Precautions FCC Information LiPo Battery Warning Charging LiPo Battery Super Cub 750 RTF Contents Super Cub Assembly Battery Install Center of Gravity Control Functions Transmitter Details Servo Reversing Arming the Motor... -
Page 3: Super Cub Story
Super Cub 750 Story The Rage™ Super Cub 750 is a great airplane for learning to fly RC. It comes with everything you need to get in the air and is made from durable EPO foam to help survive rough landings, plus is the perfect size for easy transport to and from flying locations. The most important feature is the PASS (Pilot Assist Stability System) control system that allows the capabilities of the airplane to grow as your flying skills advance. The system is controlled by a conveniently located 3-posi- tion switch on the transmitter that can be moved during flight between Full Assist, Partial Assist, and No Assist modes. Full Assist limits the bank angle during flight and provides the necessary assistance for making coordinated turns. Partial Assist allows greater bank angles and tighter turns. In either switch location, if you feel the airplane is not in control, just release the con- trol sticks and it will quickly return to level flight. When your skills have progressed to fly in No Assist Mode (system off), PASS is still available if the Cub ever feels out of control. All you have to do is move the switch to either Full Assist or Partial Assist mode and you’re back in level flight within seconds! The Super Cub 750 comes in a highly visible, attractive trim scheme and everything you need to get started flying is in the box; including a 2.4GHz standard size 4-channel transmitter, a pre-in- stalled electronics system, a powerful 7.4V 500mAh LiPo battery, a convenient USB charger, and even the AA batteries needed to provide power to the transmitter. There’s nothing left to pur- chase, so you can you can be making your maiden flight within minutes of opening the box! Safety Precautions Failure to use this product in the intended manner as described in the following instruction can result in damage and/or personal injury. A Radio Controlled (RC) airplane/helicopter/quadcopter is not a toy! If misused it can cause serious bodily harm and damage to property. Keep items that could become entangled away from the propeller, including loose clothing, tools, etc. Be especially sure to keep your hands, face and other parts of your body away from the propeller. As the user of this product you are solely and wholly responsible for operating it in a manner that does not endanger yourself and others or result in damage to the product or the property of others. This model is controlled by a radio signal that is subject to possible interference from a variety of sources outside your control. This interference can cause momentary loss of control so it is advisable to always keep a safe distance from objects and people in all directions around your model as this will help to avoid collisions and/or injury. -
Page 4: Fcc Information
FCC Information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This product contains a radio transmitter with wireless technology which has been tested and found to be compliant with the applicable regulations governing a radio transmitter in the 2.400GHz to 2.4835GHz frequency range. The associated regulatory agencies of the following countries recognize the noted certifications for this product as authorized for sale and use: USA, UK, AU LiPo Battery Warning IMPORTANT NOTE: Lithium Polymer batteries are significantly more volatile than the alkaline, NiCd or NiMH batteries also used in RC applications. All instructions and warnings must be followed exactly to prevent property damage and/or personal injury as mishandling of LiPo batteries can result in fire. -
Page 5: Super Cub 750 Rtf Contents
Super Cub 750 RTF Contents Super Cub 750 Assembly The Super Cub 750 comes nearly ready to fly, all that is required to complete is the installation of the landing gear. Insert the landing gear wire into the slot at the front of the battery box. Fasten the two supplied screws to secure the gear as shown using the included Philips- head screwdriver. Battery Install Insert the battery into the battery box located on the bottom of the fuselage. Turn the transmitter on first with the throttle off (left transmitter stick all the way down)and then plug the JST (red) connector in, this powers up the aircraft. The Super Cub 750 includes a bright LED light in the nose of the aircraft. Plug the balance connector (white) in to activate the LED. Unplug both at the end of each flight. Center of Gravity The center of gravity (CG) for the Super Cub 750 is a point that is 30mm + or - 5mm back from the leading edge of the wing where it meets the fuselage. Maintaining the correct CG is critical to optimum flight performace. A plane with too aft a CG (tail heavy) will be very pitch sensitive and difficult to control. If the CG is too far forward (nose heavy) the plane will be too pitch stable and not responsive enough. With the supplied battery installed in the battery box the Super Cub’s CG will automatically be in the correct location. If a different battery is used or repairs have been made to the airframe the CG should be rechecked and weight adjusted to acheive the proper CG. -
Page 6: Control Functions
Aileron Trim On/Off Control Functions The Super Cub 750 comes nearly completely assembled. All the control surfaces have been pre-connected. Check that the of movement is correct for each of the control func- This is accomplished by first turning on your... -
Page 7: Arming The Motor
Arming the Motor The left stick on the transmitter controls both the throttle and the rudder functions. When the transmitter is on and the aircraft flight battery is plugged in, the electronics will be active but the motor will not be armed. To arm the motor, cycle the throttle stick from the OFF to the ON posi- tion and then back to OFF. You will hear an arming tone and the next time that the throttle stick is raised the motor will start. Throttle Throttle Down Note: Perform the following control tests with the motor armed. Be careful not to raise the throttle stick during these tests as the prop will rotate. If you perform the tests with the motor not armed you run the risk of reversing the direction of servo operation. -
Page 8: Control Movement
Control Movement When the rudder stick is moved to the left of the transmitter the rudder should move left. When in flight this will yaw the tail to the right (the nose of the aircraft will move to the left). Rudder Left When the rudder stick is moved to the right of the transmitter the rudder should move right. When in flight this will yaw the tail to the left (the nose of the aircraft will move to the right). Rudder Right When the aileron stick is moved to the right of the transmitter the right aileron should move up and the left one move down. Aileron Right This will roll the wing to the right. When the aileron stick is moved to the left of the transmitter the left aileron should move up and the right one move Aileron down. This will roll Left the wing to the left. -
Page 9: Pilot Assist Stability System (Pass)
Pilot Assist Stability Software (PASS) PASS (Pilot Assist Stability Software) is incorporated into your Super Cub 750. It allows the pilot to tailor the response of the airplane to his abilities. As your piloting skills grow the capabilities of the Super Cub grow with you. Full Assist (Switch toward pilot) In this mode, the amount of roll, rate of climb, and rate of dive are limited. Self leveling is also engaged. The reduced roll, climb and dive angles are to aid the newer pilot in not overcontrolling the aircraft. If at any time the airplane feels out of control, simply let go of the sticks and the model will return to normal flight. Partial Assist (Switch center position) This mode allows for greater pilot input and increases the maximum roll angle and the climb and dive angles possible. The aircraft still cannot be rolled inverted or looped. As in Full Assist, the aircraft is self leveling if the sticks are released. No Assist (Switch away from pilot) In this mode all electronic stability control is turned off. The full range of aerobatic flight is possible including rolls, loops, inverted flight and snap rolls. If while first attempting these advanced maneuvers you become disoriented simply switch to Partial or Full Assist to automatically level the aircraft and regain control. -
Page 10: First Flight
Calibration The PASS system used in the Super Cub 750 is pre-calibrated from the factory. Recalibration is only necessary if the aircraft does not respond correctly (pitches up or down) when the PASS switch is activated. With the aircraft sitting on a level surface and the tail raised to a "wings level"... -
Page 11: Limited Warranty
Limited Warranty Warranty Period: Rage R/C warrants that the Super Cub 750 (“Product”) will be free from original factory defects in materials and workmanship upon purchase (“Warranty Period”). What is Not Covered - This warranty is not transferable and does not cover (a) cosmetic damage, (b) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (c) modification to any part of the Product, (d) attempted service by anyone other than a Rage R/C authorized service center, or (e) Product not purchased from an authorized Rage R/C dealer. OTHER THAN THE EXPRESS WARRANTY ABOVE, RAGE R/C MAKES NO OTHER WARRANTY OR REPRESENTATION, AND THREFORE DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUD- ING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND SUITABILITY FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL MEET THE REQUIREMENTS OF THEIR INTENDED USE. Purchaser’s Remedy - Rage R/C’s sole obligation and purchaser’s sole and exclusive remedy shall be that Rage R/C will, at its option, either (a) service, or (b) replace, any Product determined by Rage R/C to be defective. Rage R/C reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Rage R/C. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY. Limitation of Liability - RAGE R/C SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF RAGE R/C HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Rage R/C exceed the individual price of the Product on which liability is asserted. As Rage R/C has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase. Law - These terms are governed by Utah law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Rage R/C reserves the right to change or modify this warranty at any time without notice. Rage R/C, an exclusive brand of: HRP Distributing, Inc. - Page 12 2017 HRP Distributing, Inc...
