Summary of Contents for AIMS Power PICOGLF6W12V120V

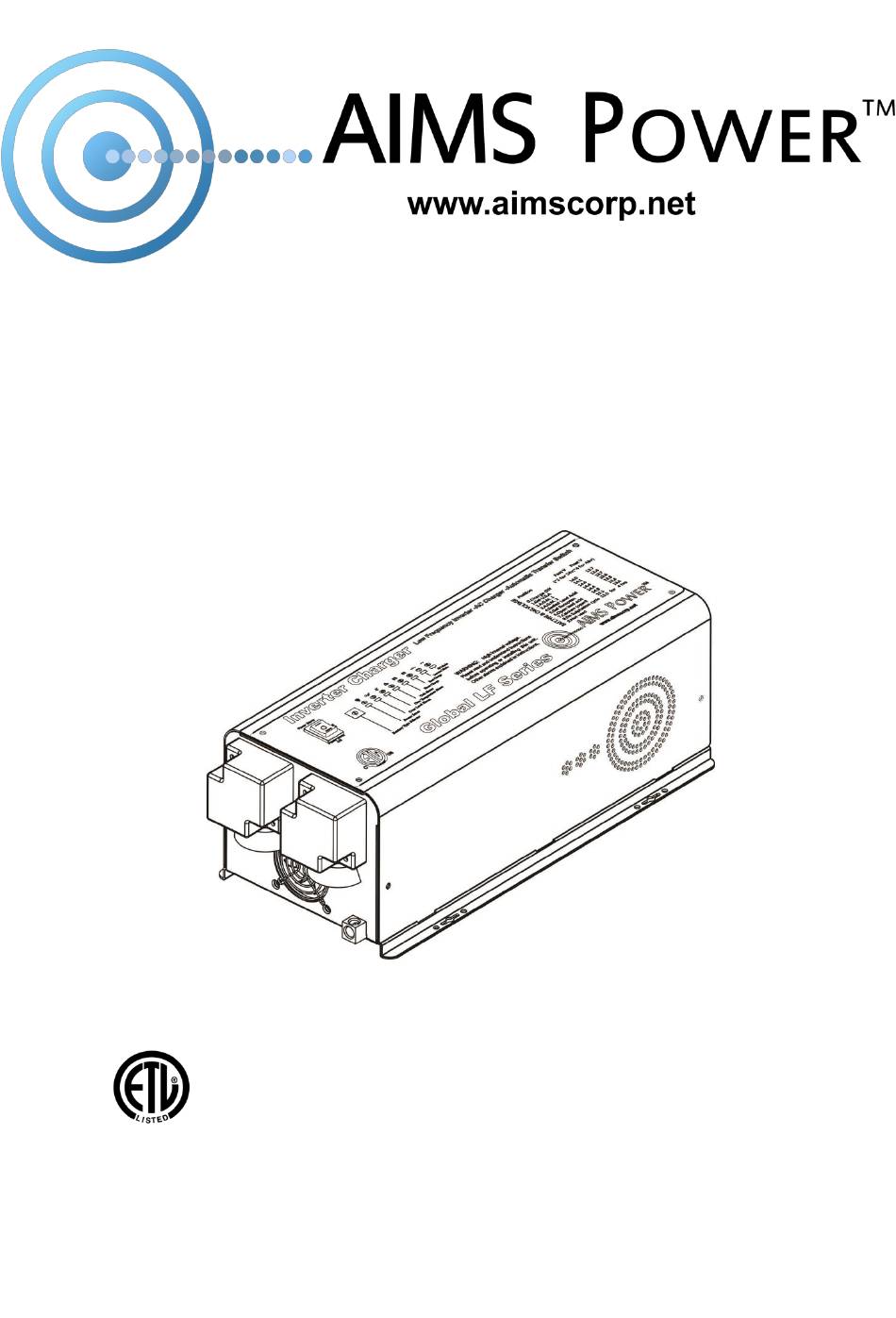

- Page 1 Global LF Series Pure Sine Wave Inverter Charger User’s Manual PICOGLF6W12V120V ETL Listed to UL 458 and CSA 22.2 No. 107...
-
Page 2: Table Of Contents
AIMS Power www.aimscorp.com Table of Contents 1. Important Safety Information ........................- 2 - 1.1 General Safety Precautions ......................- 2 - 1.2 Precautions When Working with Batteries ..................- 2 - 2. Introduction ............................... - 3 - 2.1 General Information ........................- 3 - 2.2 Application ............................ -
Page 3: Important Safety Information
AIMS Power www.aimscorp.com 1. Important Safety Information WARNING! Before using the Inverter, read and save the safety instructions. All wiring must follow the National Electric Code, The Canadian Electrical Code Part 1, Provincial or other codes in effect at the time of installation, regardless of suggestions in this manual. All wires should be copper conductors. -
Page 4: Introduction
AIMS Power www.aimscorp.com 1-2-5. To reduce the risk of injury, charge only deep-cycle lead acid, lead antimony, lead calcium gel cell, absorbed mat, LIFEPO4 lithium or NiCad/NiFe type rechargeable batteries. Other types of batteries may burst, causing personal injury and damage. -
Page 5: Mechanical Drawing
AIMS Power www.aimscorp.com 2.3 Mechanical Drawing PICOGLF6W12V120V DC Side Figure 1 PICOGLF6W12V120V AC Side Figure 2 - 4 -... -
Page 6: Features
AIMS Power www.aimscorp.com PICOGLF6W12V120V Side Figure 3 Figure 4 2.4 Features • High overload ability up to 300% of rated power (20 sec) • Low quiescent current, low power “Power Saving Mode” to conserve energy Automatic Generator Start • Battery Temperature Sensing for more precise charging •... - Page 7 AIMS Power www.aimscorp.com • Extensive protections against various harsh situations • 13VDC battery recovery point, dedicated for renewable energy systems - 6 -...
-
Page 8: Electrical Performance
AIMS Power www.aimscorp.com 2.5 Electrical Performance 2.5.1 Inverter Topology The Global LF inverter/charger is built according to the following topology. Invert: Full Bridge Topology. Charge: Isolated Boost Topology High efficiency mosfets and 16bit, 4.9MHZ microprocessor and heavy duty transformers outputs PURE SINE WAVE AC with an average THD of 8% (min 3%, max 10%) depending of load connected and the battery voltage. - Page 9 AIMS Power www.aimscorp.com There are 3 charging stages: Bulk Charging: (fast charge LED solid) This is the initial stage of charging. While Bulk Charging, the charger supplies the battery with controlled constant current. The charger will remain in Bulk charge until the Absorption charge voltage (determined by the Battery Type selection) is achieved.
- Page 10 AIMS Power www.aimscorp.com Battery type selector Switch setting Description Boost / Vdc Float / Vdc Charger Off Gel USA 14.0 13.7 AGM 1 14.1 13.4 AGM 2 14.6 13.7 Sealed lead acid/LIFEPO4 14.4 13.6 Gel EURO 14.4 13.8 Open lead acid 14.8...
-
Page 11: Transfer
AIMS Power www.aimscorp.com 2.5.3 Transfer While in the Standby Mode, the AC input is continually monitored. Whenever AC power falls below the VAC Trip voltage 90VAC for 120VAC, the inverter automatically transfers back to the Invert Mode with minimum interruption to your appliances - as long as the inverter is turned on. The transfer from Standby mode to Inverter mode occurs in approximately 10 milliseconds. -
Page 12: Protections
AIMS Power www.aimscorp.com Note: The minimum power of a load to take inverter out of sleep mode (Power Saver On) is 25 Watts. The Global LF Series is designed with extraordinarily low idle power consumption which is only a mere 2-3 % of its rated power. -
Page 13: Remote Control
AIMS Power www.aimscorp.com 2.5.6 Remote Control Apart from the switch panel on the front (or top) side of the inverter, an extra LCD remote switch panel (Figure 11, sold separately Part #: REMOTELF) connected to the remote port at the DC side of the inverter through a standard Ethernet cable can also control the operation of the inverter. -
Page 14: Led Indicator
AIMS Power www.aimscorp.com 2.5.7 LED Indicator AC MODE GREEN LED lit in AC Mode INVERTER MODE GREEN LED lit in Inverter Mode FAST CHARGE YELLOW LED lit in Fast Charging FLOAT CHARGE GREEN LED lit in Float Charging UNIT ALARM... -
Page 15: Audible Alarm
AIMS Power www.aimscorp.com Figure 12 2.5.8 Audible Alarm Battery Voltage Low Inverter green LED lit, and the buzzer beeps 0.5s every 5s. Inverter green LED lit, and the buzzer beeps 0.5s every 1s and Fault after Battery Voltage High 60s. - Page 16 AIMS Power www.aimscorp.com Frequency Switch 50Hz 60Hz Battery/AC Priority AC Priority Battery Priority Low Battery Trip Point(SW1): Deep discharge of the lead acid battery leads to high losses in capacity and early aging. In different applications a different low voltage disconnection level is preferred. For example, for solar applications, user may intend to have less DOD to prolong the battery life cycle.
-
Page 17: Battery Temperature Sensing
AIMS Power www.aimscorp.com AC/Battery Priority(SW5): Our inverter is designed with AC priority by default. This means, when AC input is present, the battery will be charged first, and the inverter will transfer the input AC to power the load. Only when the AC input is stable for a continuous period of 15 days will the inverter start a battery inverting cycle to protect the battery. -
Page 18: Auto Generator Start
AIMS Power www.aimscorp.com Inverter Condition Temperature on BTS Charger Operation BTS ≥ 50℃(122℉) Automatically turns off charger Charger Mode BTS ≤ 40℃(104℉) Automatically turns on charger 40℃(104℉)≤ BTS ≤50℃(122℉) Increases low voltage shut down point by 0.5Vdc Inverter Mode BTS ≥ 50℃(122℉) -
Page 19: Other Features
D'autres types peuvent tomber pour fonctionner correctement lorsqu'ils sont connectés à cet appareil Conformal Coating AIMS Power entire line of Global LF inverters have been processed with a conformal coating on the PCB, making it water, rust, dust and corrosion resistant. -
Page 20: Installation
AIMS Power www.aimscorp.com 3. Installation * All wiring must follow the National Electric Code, Install shall be in accordance with the Canadian Electrical Code Part 1 3.1 Location Follow all the local regulations to install the inverter. Install the equipment in a location that is dry, clean, cool with good ventilation. -
Page 21: Ac Wiring
AIMS Power www.aimscorp.com CAUTION The torque rating range for DC terminal is 12.5NM-20.5NM, and the suggested torque rating is 17NM. Over torquing may cause the bolt to break. WARNING In the event of reverse polarity the unit could be totally destroyed and warranty voided! -
Page 22: Install Flange
AIMS Power www.aimscorp.com 3.5 Install Flange 600W Model Side View - 21 -... -
Page 23: Troubleshooting Guide
AIMS Power www.aimscorp.com 4. Troubleshooting Guide Troubleshooting contains information about how to troubleshoot possible error conditions while using the Global LF Inverter & Charger. The following chart is designed to help you quickly pinpoint the most common inverter failures. Indicator and Buzzer... - Page 24 AIMS Power www.aimscorp.com Symptom Possible Cause Recommended Solution Check the batteries and cable Batteries are not connected, loose connections. Check DC fuse and Inverter will not turn on during battery-side connections. breaker. initial power up. Low battery voltage. Charge the battery.
-
Page 25: Limited Warranty
In no event shall AIMS be liable for indirect, special or consequential damages. This warranty only applies to AIMS Power branded products. All other name brand products are warranted by and according to their respective manufacturer. - Page 26 AIMS Power www.aimscorp.com Appendix 1 Global LF Series Inverter & Charger Spec Sheet Electrical Specifications Power Rating 600W Continuous Output Power 600W Surge Rating(20s) 1800W Output Waveform Pure Sine wave/Same as input(Bypass mode) Nominal Efficiency 80%(Peak) Line Mode Efficiency >95%...
- Page 27 AIMS Power www.aimscorp.com Calcium 15.1 13.6 De-sulphation 15.5 for 4hrs Remote Control Yes. Optional Input Voltage Waveform Sine wave (Grid or Generator) Nominal Voltage 120Vac Low Voltage Trip 80V/90V±4% Low Voltage re engage 90V/100V±4% High Voltage Trip 140V±4% High Voltage re engage 135V±4%...
- Page 28 614-00046-00...
