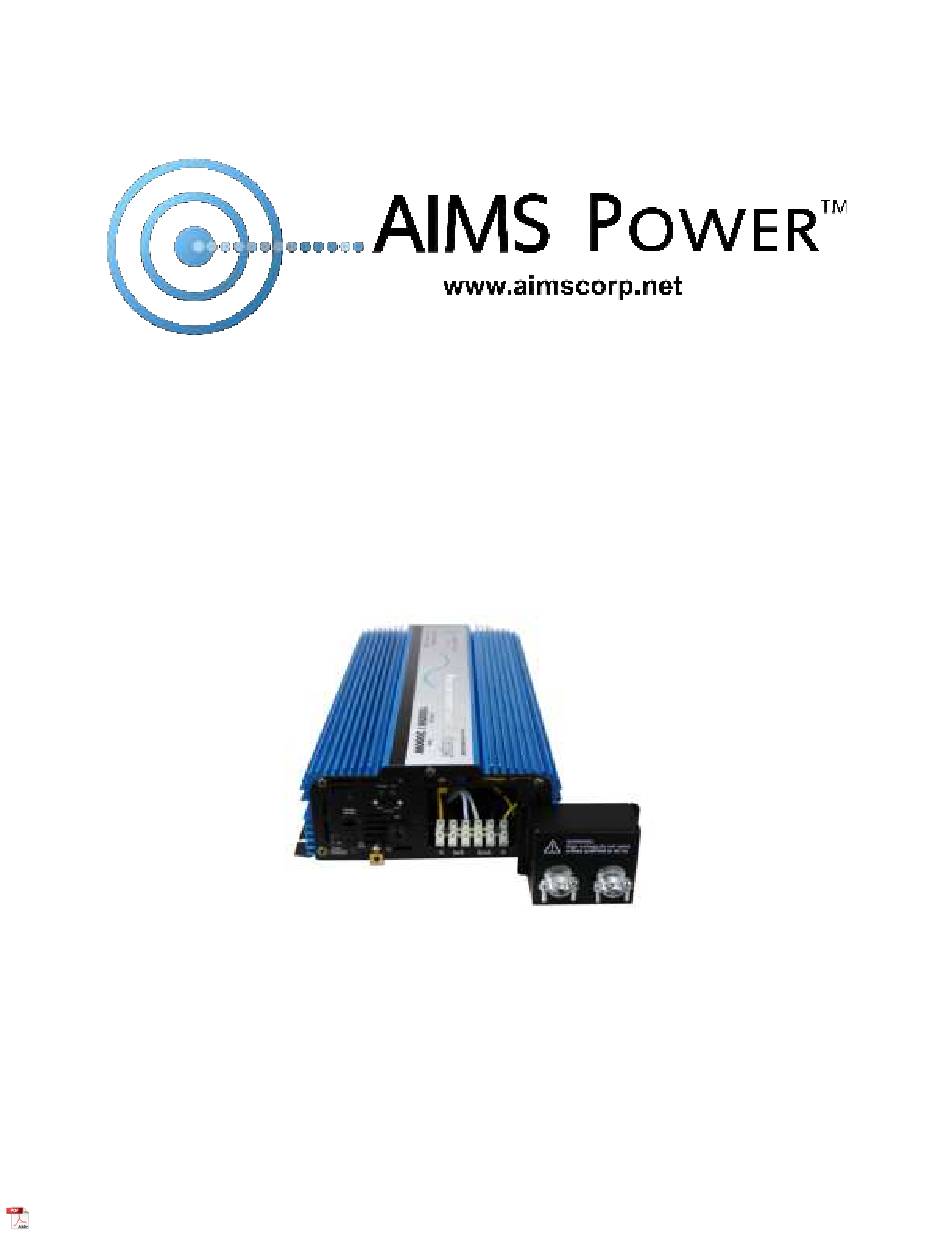

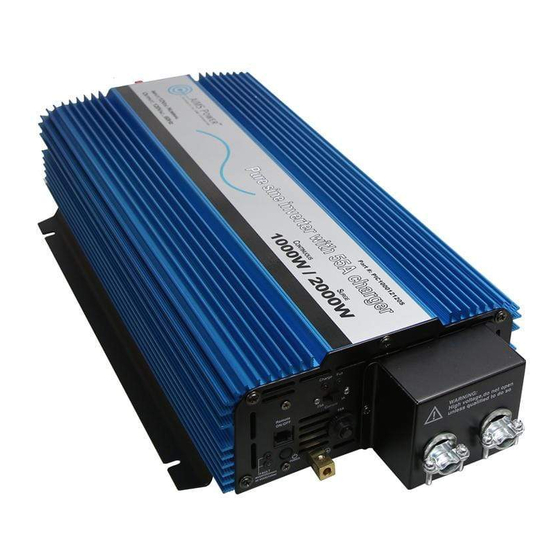

- Page 1 DC TO AC PURE SINE POWER INVERTER WITH CHARGER & TRANSFER SWITCH PIC100012120S INSTRUCTION MANUAL 4/21...
-
Page 2: Warning And Safety
A. INTRODUCTION The AIMS Power pure sine inverter product line is used for back-up power. The pure sine product line is ideal for sensitive equipment and provides clean power, which is more efficient for back-up power applications. The power inverter... -
Page 3: Inverter Features
Note: Performance of this unit may vary depending on the available battery power or appliance wattage. Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by operator. -
Page 5: Installation
D. INSTALLATION Ensure there is enough space for the installation, and the location should meet the following requirements: 1. Water should not access the inverter. 2. The ambient temperature should be 32~104°F, and the preferred temperature is 50-77°F. The lower the better in this range of ambient temperature. 3. - Page 6 2. Battery operating time depends on battery capacity and load. The formula for operating time is: battery capacity divided by the value of the load divided by battery voltage times 1.10%. For example, using the numbers from above, the battery specification is 12V, 200Ah capacity and the load is 1000W. Take battery capacity 200Ah / 91.6 amps = 2.18 hours of run time if you fully deplete the battery.
- Page 7 Do not loosen or touch the rear set screws on the terminal block. WARNING The output voltage of this unit must never be connected in its input AC terminal, overload or damage may result. Always press power button to ON position before plugging in any appliance.
- Page 8 5. The cooling fans inside the inverter do not work until the case temperature reaches approximately 104°F. 6. If you do not plan to use the inverter for a long period of time, disconnect it from your battery bank. Leaving the inverter on and connected for long periods of time may harm the equipment and over discharge the battery.
- Page 9 115 VAC inverter is 1,250 VAC. For 230 VAC or dual voltage inverters, the hi-pot voltage is 1,500 VAC. This Aims power inverter is hi-pot tested before it leaves the factory. Hi-Pot testing is used to detect any electrical leakage between live metal components and the frame of the machine that is connected to earth ground.
-
Page 10: Troubleshooting Tips
TROUBLESHOOTING TIPS Fault / Display Cause Solutions Low input DC voltage Recharge or replace the battery Do not use it when the battery is charging. Check the rated voltage of the battery and make sure it is in within the range of the rated input voltage. -
Page 11: Specifications
SPECIFICATIONS... -
Page 12: Warranty
AIMS be liable for indirect, special or consequential damages. This warranty only applies to AIMS Power branded products. All other name brand products are warranted by and according to their respective manufacturer. Please do not attempt to return non-AIMS Power branded products to AIMS Power.
