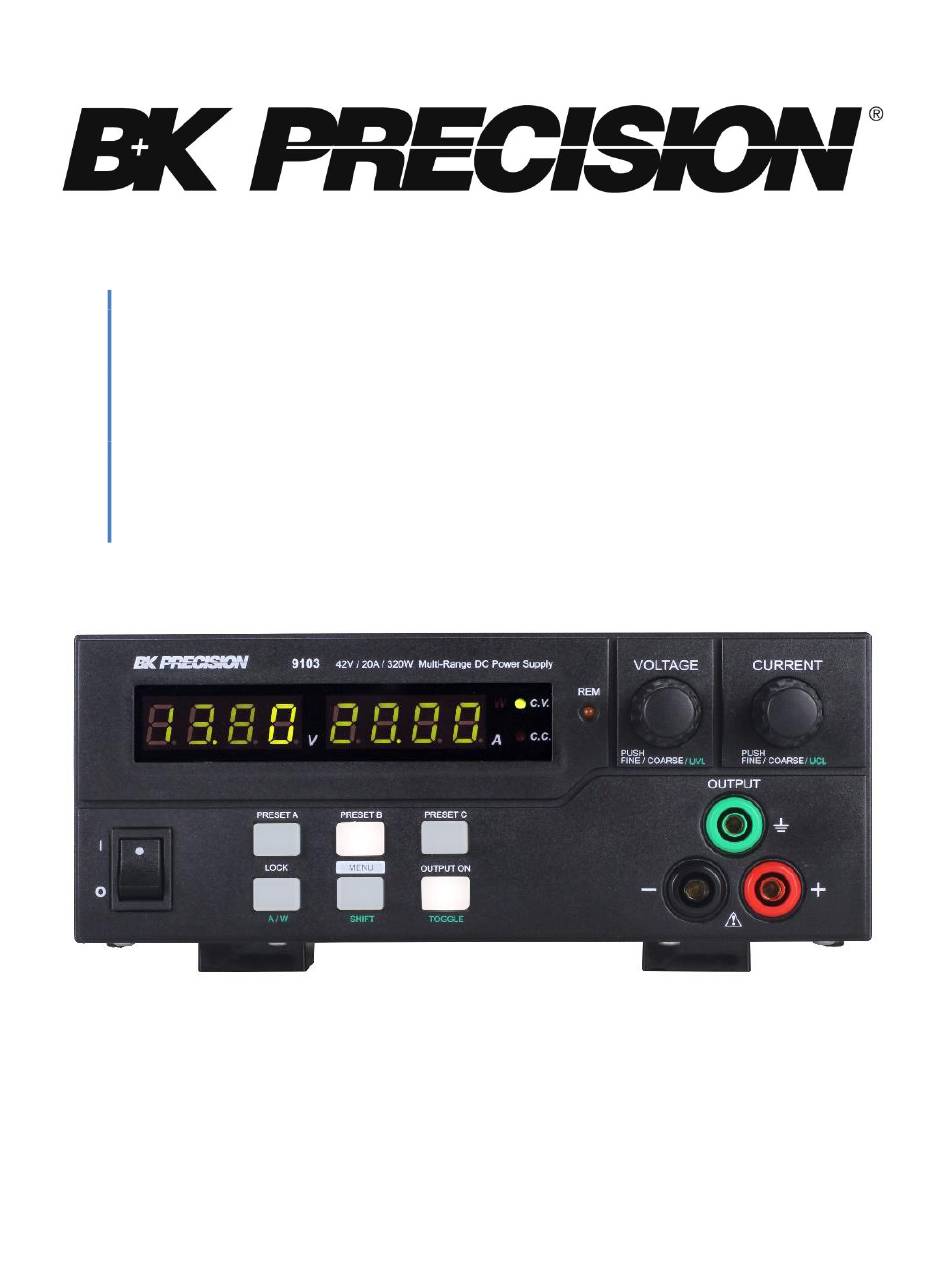

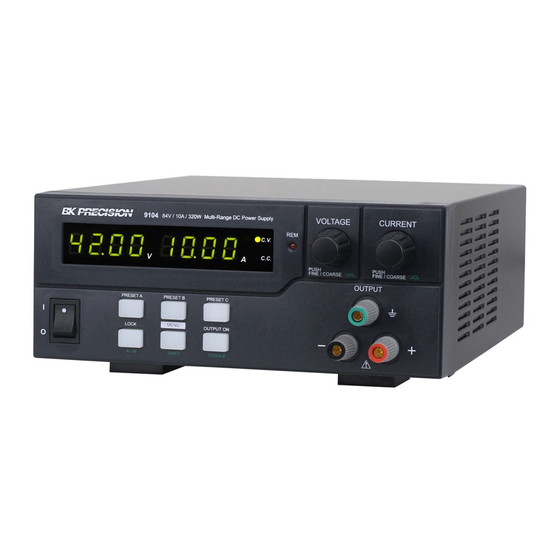

- Page 1 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com Model: 9103, 9104 Switching DC Power Supplies PROGRAMMING MANUAL...
-
Page 2: Table Of Contents
Table of Contents USB Interface Connection ......................3 Connecting Instrument to PC ...................... 3 USB (Virtual COM) Configuration ....................3 Command Set .......................... 4 SOUT< Output > [CR] ........................5 GOUT[CR] ............................ 5 VOLT< preset0/1/2/3><Voltage>[CR] ..................5 CURR< preset0/1/2/3><Current> [CR] ..................5 SOVP<voltage >[CR] ........................ -
Page 3: Usb Interface Connection
1. USB Interface Connection Users can remotely control the power supply via PC over the USB interface. Upon installation of the USB driver, the PC can control the instrument over virtual COM. Connecting Instrument to PC a) Download the USB drivers from www.bkprecision.com . b) Connect the included USB cable to the power supply and the USB port on the PC. -
Page 4: Command Set
2. Command Set In order to use remote commands, please make sure to use the following communication settings: 1. Baud rate: 9600 2. Data bits: 8 3. Parity: none 4. Stop bits: 1 If you are using HyperTerminal, make sure to check your ASCII setup to not append line feeds. Command line format: COMMAND<parameter1><parameter2>…[CR] Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com... -
Page 5: Sout< Output > [Cr]
Input Command and Return Description Example SOUT< Output > [CR] Set Output on/off. Input Command: SOUT0[CR] Set Output off: < Output > =0 Return Value: [OK] [CR] Return Value: [OK] [CR] Set Output on: < Output > =1 Result: Set Output off GOUT[CR] Get Output Status. -
Page 6: Setd
SETD<preset0/1/2/3><VOLTAGE> SET preset0/1/2/3 Voltage and Current. Input Command: <CURRENT>[CR] <preset0/1/2/3> =0 preset1 SETD 005001000 [CR] <preset0/1/2/3> =1 preset2 Return Value: [OK] [CR] Return Value: [OK] [CR] <preset0/1/2/3> =2 preset3 Result: Set preset1 voltage <preset0/1/2/3> =3 Normal Mode 5.00V Current 10.00A <voltage>... -
Page 7: Stop[Cr]
STOP[CR] Stop SW running Input Command: STOP [CR] Return Value: [OK] [CR] Result: Stop SW running Return Value: [OK] [CR] SESS[CR] Disable Keyboard Input Command: SESS [CR] Return Value: [OK] [CR] Result: Disable Keyboard Return Value: [OK] [CR] ENDS[CR] Enable Keyboard Input Command: ENDS [CR] Return Value: [OK] [CR] Result: Enable Keyboard... -
Page 8: Setm
<Setv[4] > =4000 <Seti[4]> =0400 SETM[CR] Configure Preset1/2/3 Input Command: SETM <Setv[1] > =???? 05001000010 <Setv[1] ><Seti[1] ><Swtime[1]><Setv[2] <Seti[1] > =???? 13801000015 ><Seti[2]><Swtime[2]><Setv[3] > <Swtime[1]>=??? 40000200020 <Seti[3] ><Swtime[3]> [CR] <Setv[2] > =???? [CR] <Seti[2] > =???? Return Value: [OK] [CR] Return Value: [OK] [CR] <Swtime[2]>=??? Result:... - Page 9 V121015...
