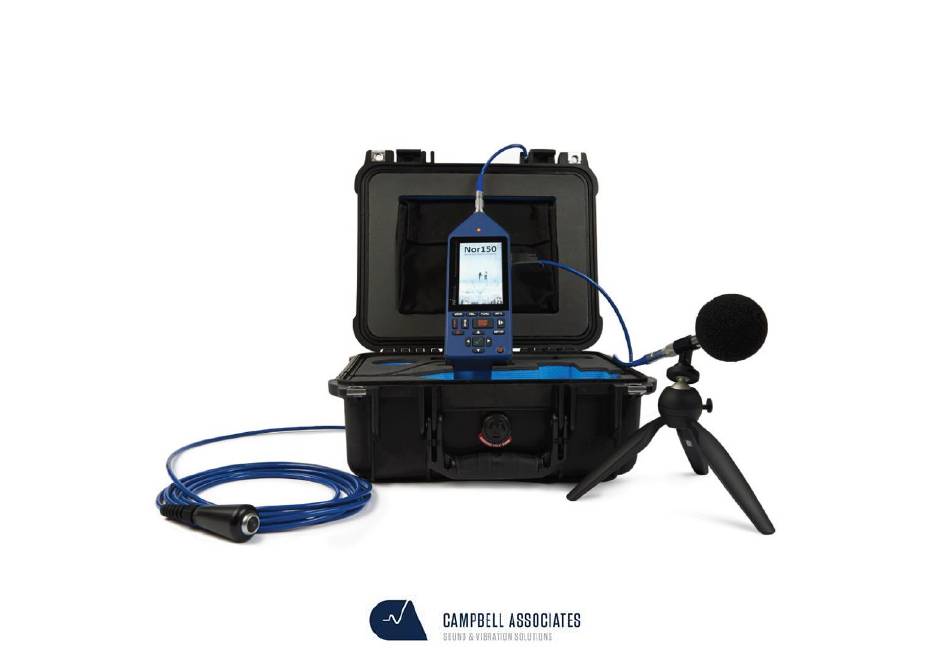

- Page 1 How to configure your Nor150 settings for Noise Nuisance Recording...
- Page 2 First we need a template setup file – you must load the Default setup first...
- Page 3 Press SETUP Key to start adjusting your settings for noise nuisance settings...
- Page 4 Set the Measurement Settings Set the Global Time (measurement duration) to 7 days...
- Page 5 Set the Profile A to 1 second resolution...
- Page 6 Set the frequency weighting = Network A at least...
- Page 7 Set one 90% percentile to...
- Page 8 Adjust the functions like so LAeq = G & PA are the minimum requirement...
- Page 9 Set the audio recording settings...
- Page 10 Set the Storage Mode Repeat = Repeat continuous repeat measurements of 7 days until you press STOP Automatic = Automatic stop and save of the measurement duration (7 days) Synchronised = Measurements are saved into hourly periods (12:00-13:00, 13:00-14:00, 14:00-15:00 and so on) Manual = Manual stop and save of the measurement...
- Page 11 You can set your meter to display a 3 second countdown after pressing the Start button...
- Page 12 How to set a hand switch to record audio Set events 1: ON Configure your audio parameters… (Max Action Time = Audio Recording Length)
- Page 13 Set a reference tone marker at 70dB...
- Page 14 Turn ON battery markers and event markers...
- Page 15 Reduce the number of views in the main measurement display to just one view (Level v Time) Level vs Time, Level vs Frequecny, SLM = Noise Levels Only...
- Page 16 Configure Your Instrument Enable the hand switch by changing Outputs 1 – 4 to: Recording S1...
- Page 17 Set the headphones to Playback and adjust the volume as required...
- Page 18 Set the Reference Tone...
- Page 19 Configure the level vs time screen – (main window) Press and hold the touch screen in the measurement window Select Functions > Set Max Functions In View > Turn of 2 & 3 Functions...
- Page 20 Set the zoom range of screen Set the time unit to absolute (displays current the date and time) To do this - press and hold your finger on the screen to display the menu...
- Page 21 Check everything works okay by starting a measurement and testing the hand switch lights up Press the button to clear the screen Go to SETUP menu and save the measurement setup file...
- Page 22 Save the measurement in the memory You may write protect the setup – but note you will not be able to change this later without saving the setup again as a new file name...
- Page 23 COMPLETE! Now go back to applications Make sure the hide button is shown at the bottom of the screen Now load up your setup icon to test it out!
- Page 24 Campbell Associates Ltd Sonitus House, Unit 5 Chelmsford Road Industrial Estate, Great Dunmow, Essex, CM6 1HD Tel +44 (0) 1371 871030 Fax +44 (0) 1371 879106 Www.Campbell-Associates.Co.Uk Company Registered In England Number 03700715 Registered Office: 12 Alma Square, Scarborough, North Yorks, YO11 1JU...
