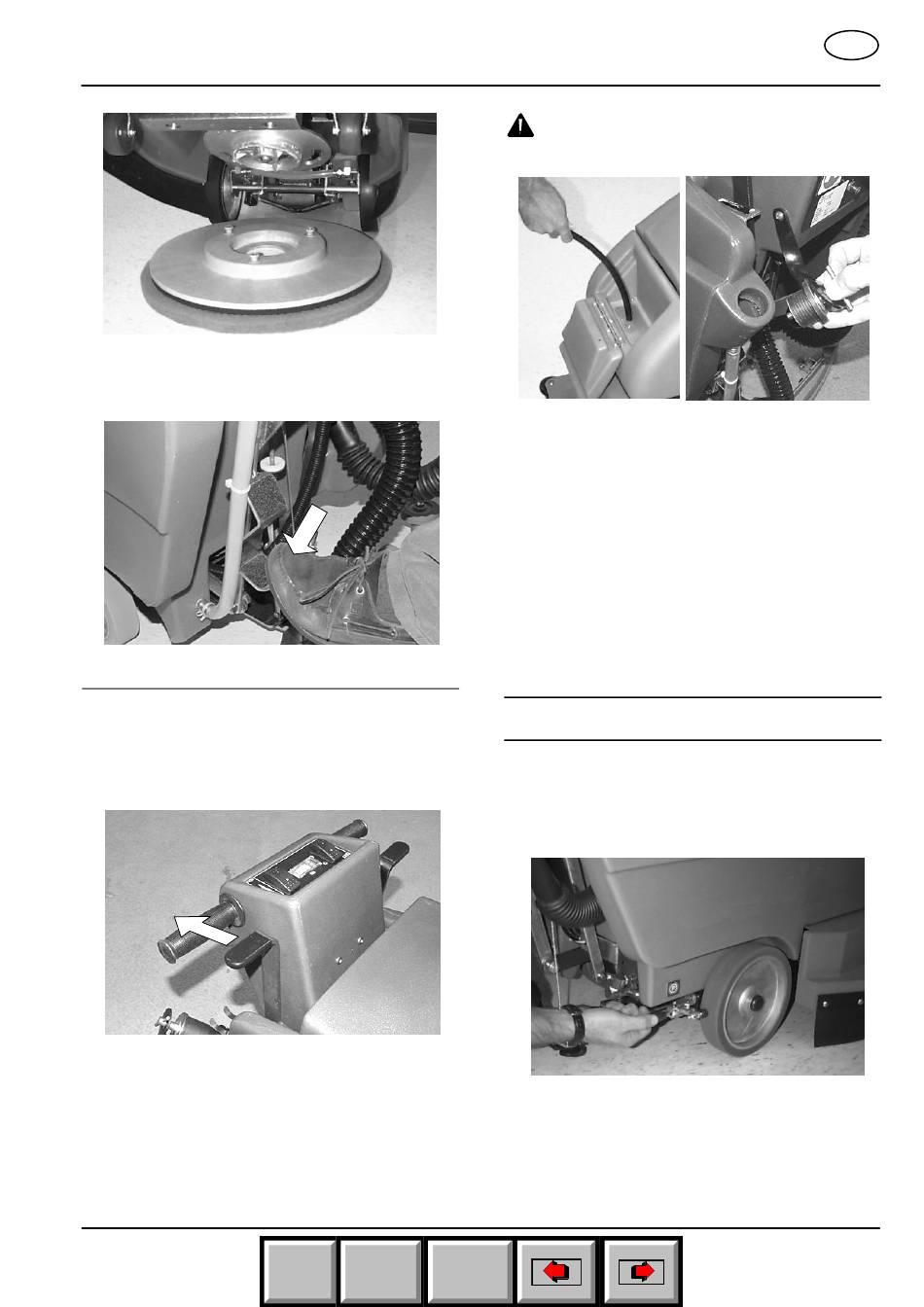

FIG. 7
8. Raise brush head. To raise brush head, step down
firmly on the bottom brush lift foot pedal until brush
locks into the raised position (Figure 8).
FIG. 8

FILLING SOLUTION TANK

1. Push/Drive machine to fill station. Raise squeegee
and brush when transporting.
2. Shut off solution flow. Pull back completely on
solution flow lever to shut off (Figure 9).
FIG. 9
3. Open solution fill door at front of machine and fill
solution tank with 38L (10 gal) of clean water,
60°C (140°F) maximum temperature. Or use the
rear fill port to fill solution tank. The clear tube
below the fill port has 19L (5 gal) increment
markers to indicate amount of water in tank
(Figure 10).
5200 (01–02)
Home Find... Go To..
WARNING: Flammable materials can cause
an explosion or fire. Do not use flammable
materials in tank(s).
FIG. 10
NOTE: If filling with a bucket be certain that bucket is
clean. This will prevent the chance of clogging the
solution lines.
4. Add cleaning chemicals to the proper dilution ratio
according to the bottles instructions.
FOR SAFETY: When using machine, follow
mixing and handling instructions on chemical
containers.
ATTENTION: Use only recommended cleaning
detergents, DO NOT use substitutes. Consult an
authorized distributor for cleaning detergent
recommendations.

MACHINE OPERATION

FOR SAFETY: Do not operate machine unless
operator manual is read and understood.
1. Release parking brake lever, if equipped
(Figure 11).
FIG. 11
2. Adjust control grips to a comfortable operating
height (three settings). Squeeze together two
levers under console to raise or lower control grips
(Figure 12).
ENGLISH EN
7
