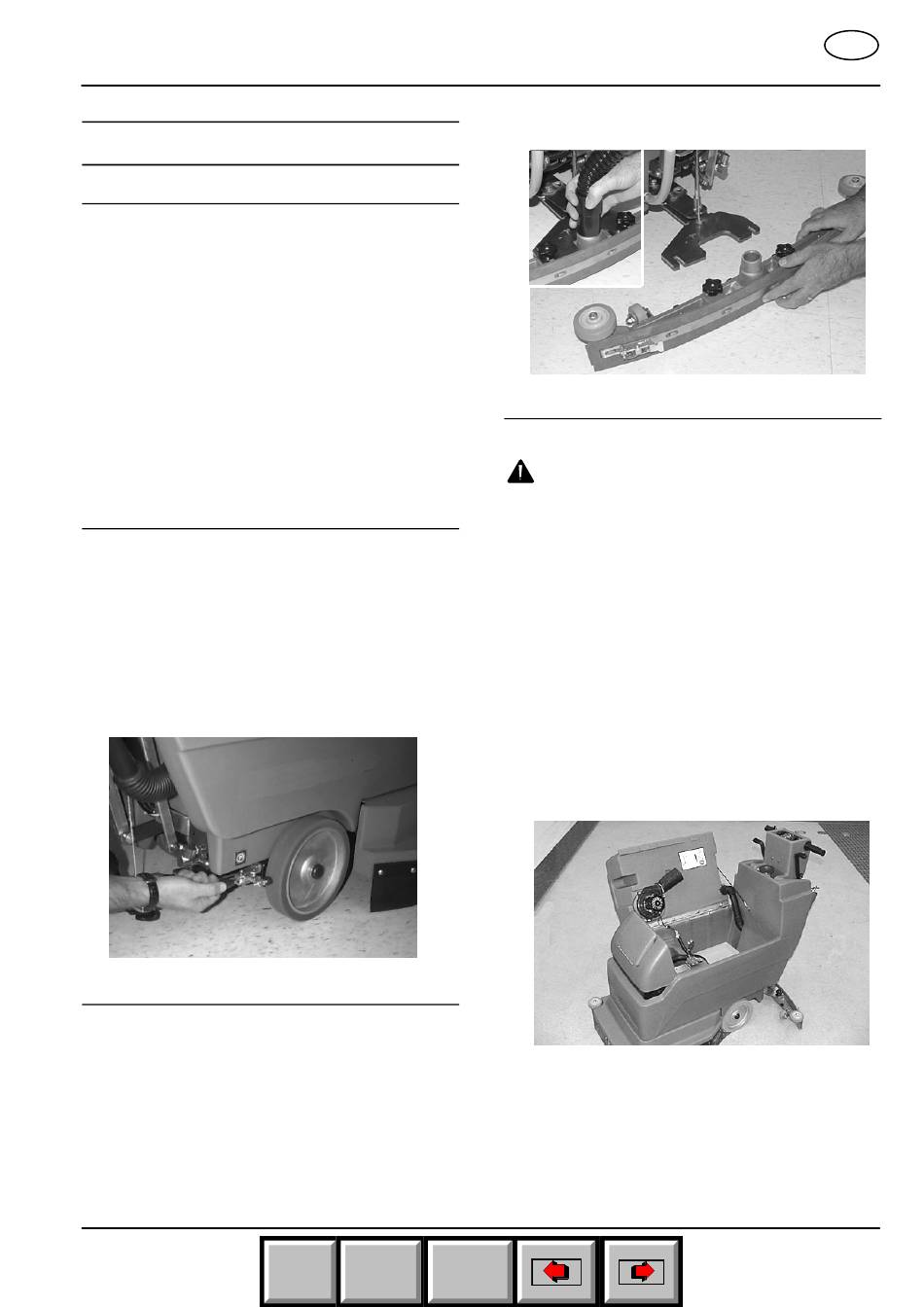

MACHINE INSTALLATION

UNCRATING MACHINE

Carefully check carton for signs of damage. Report
damages at once to carrier. Check carton contents to
ensure all accessories are included.
To uncrate your machine, remove straps and raise
brush head. To raise brush head, step down firmly on
the bottom brush lift foot pedal until pedal locks into
the raised position. Carefully lift or create a ramp using
crate boards to remove machine from pallet.
ATTENTION: Do not roll machine off pallet,
damage may occur.
ATTENTION: To prevent possible machine
damage, install batteries after removing machine
from shipping pallet.
SETTING PARKING BRAKE
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off machine,
and set parking brake, if equipped.
NOTE: Only models with automatic drive are
equipped with a parking brake.
1. Locate red parking brake lever at rear right wheel.
2. Push lever forward to set parking brake (Figure 1).
FIG. 1
ATTACHING SQUEEGEE
1. Pull back on squeegee lift lever to raise squeegee
mount bracket.
2. Loosen two thumb knobs on squeegee and slide
squeegee into slot at rear of squeegee mount
bracket (Figure 2). Tighten thumb knobs securely.
5200 (02–01)
Home Find... Go To..
3. Connect vacuum hose to squeegee assembly
(Figure 2).
FIG. 2

INSTALLING BATTERIES

WARNING: Batteries emit hydrogen gas.
Explosion or fire can result. Keep sparks and
open flame away. Keep battery compartment open
when charging.
FOR SAFETY: When servicing machine, wear
protective glove when handling batteries or
battery cables. Avoid contact with battery acid.
Recommended Battery Specifications:
Two 12 volt deep cycle 130 amp hour batteries.
Tennant Part Number #130869. Maximum battery
dimensions are 180 mm W (7.13 in.) x 330mm L (13
in.) x 254 mm H (10 in.).
1. Remove key from machine.
2. Carefully hinge open recovery tank to access
battery compartment. Remove loose battery cable
and PVC battery spacer from compartment
(Figure 3).
FIG. 3
