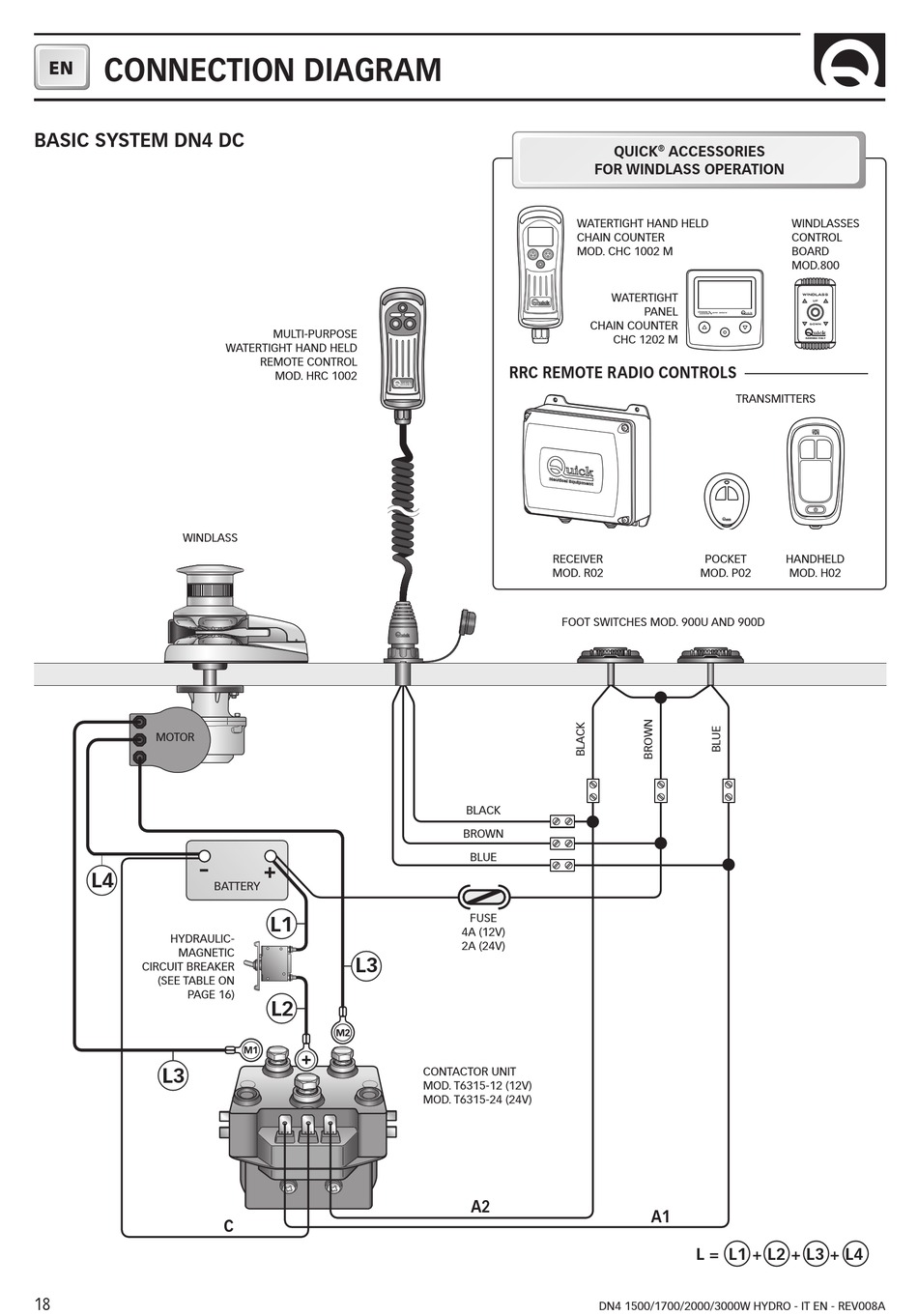

CONNECTION DIAGRAM

EN

BASIC SYSTEM DN4 DC

WINDLASS
MOTOR
-
L4
HYDRAULIC-
MAGNETIC
CIRCUIT BREAKER
(SEE TABLE ON
PAGE 16)
L3
18
MULTI-PURPOSE
WATERTIGHT HAND HELD
REMOTE CONTROL
MOD. HRC 1002
+
BATTERY
L1
L3
L2
C
FOR WINDLASS OPERATION
WATERTIGHT HAND HELD
CHAIN COUNTER
MOD. CHC 1002 M
CHAIN COUNTER

RRC REMOTE RADIO CONTROLS

RECEIVER
MOD. R02
FOOT SWITCHES MOD. 900U AND 900D
BLACK
BROWN
BLUE
FUSE
4A (12V)
2A (24V)
CONTACTOR UNIT
MOD. T6315-12 (12V)
MOD. T6315-24 (24V)
A2
QUICK ACCESSORIES
®
RADIO POCKET
WATERTIGHT
PANEL
CHC 1202 M
TRANSMITTERS
POCKET
MOD. P02
A1
L = L1 + L2 + L3 + L4
DN4 1500/1700/2000/3000W HYDRO - IT EN - REV008A
WINDLASSES
CONTROL
BOARD
MOD.800
HANDHELD
MOD. H02
