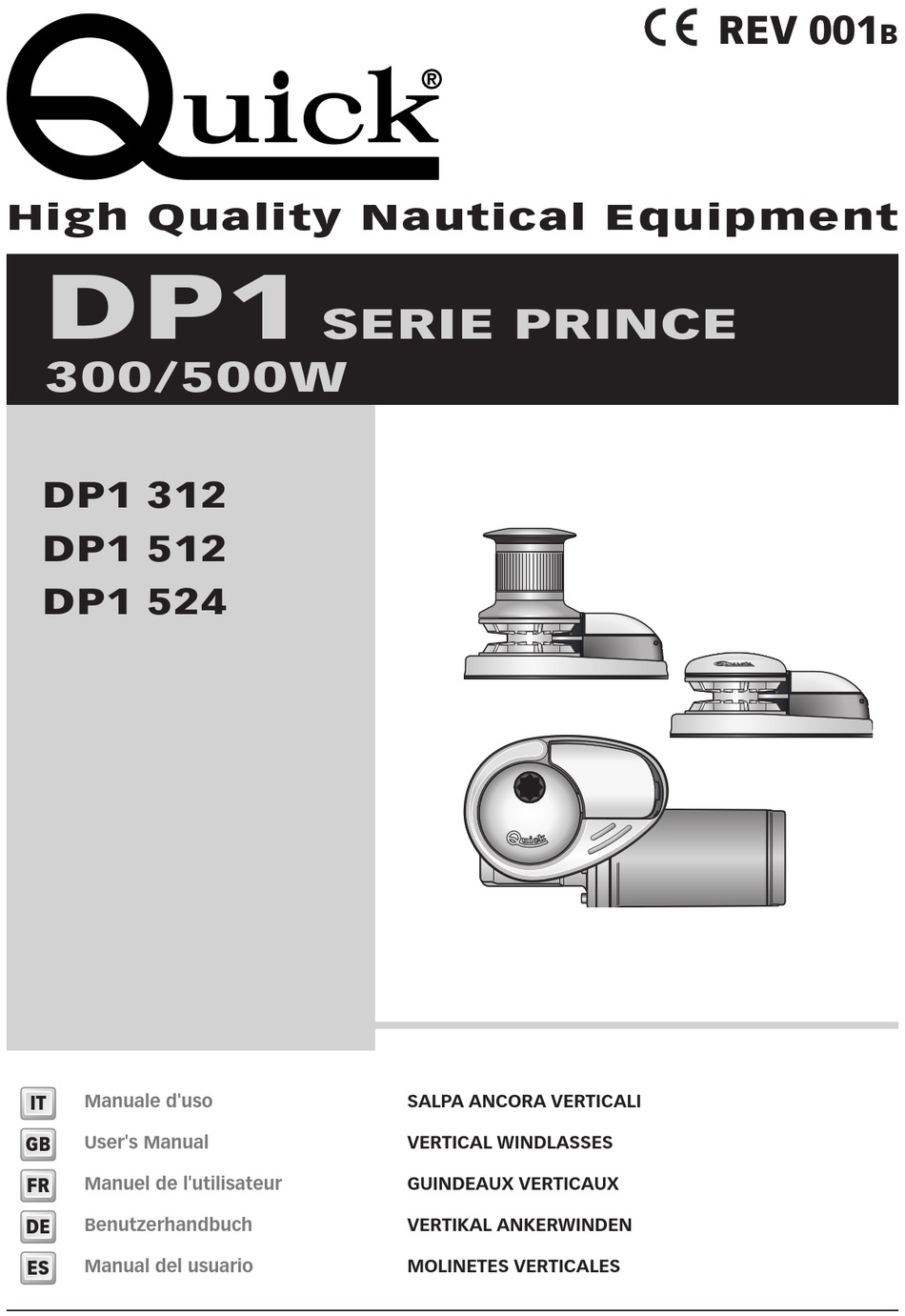

- Page 1 REV 001 High Quality Nautical Equipment SERIE PRINCE 300/500W DP1 312 DP1 512 DP1 524 Manuale d'uso SALPA ANCORA VERTICALI User's Manual VERTICAL WINDLASSES Manuel de l'utilisateur GUINDEAUX VERTICAUX Benutzerhandbuch VERTIKAL ANKERWINDEN Manual del usuario MOLINETES VERTICALES...
- Page 2 INDICE Pag. 4 Caratteristiche tecniche Pag. 7 Uso - Avvertenze importanti Pag. 5 Installazione Pag. 8/9 Manutenzione Pag. 6 Schema di collegamento Pag. 10/11 Set INDEX Pag. 12 Technical data Pag. 15 Usage - Warning Pag. 13 Installation Pag. 16/17 Maintenance Pag.
- Page 3 DIMENSIONS OF MODELS mm ( inch ) • DP1 300 / 500W - / D 181 (7 271 (9 Quick ® reserves the right to introduce changes to the equipment and the contents of this manual without prior notice. In case of discordance or errors in translation between the translated version and the original text in the Italian language, reference will be made to the Italian or English text.
- Page 4 Check that there are no swimmers nearby before dropping anchor. The splice between the rope and the chain must be tightly woven for the rope to slide easily into the gypsy shape. For any problem or request, feel free to contact Quick Technical Service.
- Page 5 CONNECTION DIAGRAM QUICK ACCESSORIES ® RADIO POCKET FOR WINDLASS OPERATION BASIC SYSTEM WATERTIGHT HAND HELD WINDLASSES CHAIN COUNTER CONTROL SEE PAGE 44 BOARD SHOWING THE MAIN CONNECTION DIAGRAM WATERTIGHT PANEL CHAIN COUNTER MULTI-PURPOSE WATERTIGHT HAND HELD REMOTE CONTROL REMOTE RADIO CONTROLS MOD.
- Page 6 : do not operate the windlass by using the electrical power when the handle is inserted in the drum or into the gypsy cover. WARNING : Quick recommend using a circuit breaker designed for direct current (DC) with delayed-action (thermal- ®...
- Page 7 MAINTENANCE POS. DESCRIPTION CODE Straight windlass lever - nylon PVLVSDN00000 Bush SGMSD0400000 Drum MSE050000R03 Gypsy cover ZSPMSGB05R03 Clutch cone DP1 MSFDP1000000 Gypsy 500W 6mm MSB040600000 Oil seal 20*42*7mm PGPRL2042700 Anello elastico interno MBAN4217Y000 Anello elastico esterno MBAE2012Y000 DP1 300/500W - REV001B...
- Page 8 Stud MBP080608X00 Gearbox flange gasket PGFLRDTG4000 Remove any oxide deposits from the terminals of the electric motor 300/500W and the reversing contactor unit; grease them. Gearbox 500W Quick series SLMR05TG4000 Gearbox “Hi Speed” 500W Quick series SLMR05TG40HS Washer MBR08X000000 Spring washer...
- Page 9 DRUM - DP1 CODE OSP WINDLASS DRUM 500W Ø50MM FVSSMSE04000A00 * CHAIN GUIDE COVER KIT COMPLETE BASE - DP1 CODE TOP WITH DRUM - DP1 CODE OSP WINDLASS BASE SERIES DP1 COMP FVSSBDP110C00A00 OSP TOP DP1 1/4” D FVSSTDP1D001A00 * OSP CHAIN GUIDE COVER KIT DP1 FVSSCPSCDP10A00 OSP TOP DP1 6MM D FVSSTDP1D006A00...
- Page 10 GEARBOX CODE OSP GEARBOX 500W WINDLASS QUICK TG40 FVSSMR05TG40A00 OSP GEARBOX 500W WINDLASS QUICK TG40 HS FVSSMR0540HSA00 MOTORGEARBOX CODE OSP MOTORGEARBOX 300W 12V QUICK FVSSR0312Q00A00 OSP MOTORGEARBOX 500W 12V QUICK FVSSR0512Q00A00 OSP MOTORGEARBOX 500W 12V QUICK HS FVSSR0512QHSA00 OSP MOTORGEARBOX 500W 24V QUICK...
- Page 11 DOWN BLUE BROWN BLACK BLUE BROWN BLACK DOWN SENSOR CAN L CAN L CAN H CAN H GREY CAN L CAN H GREEN BROWN WHITE BLUE BLACK BLUE BROWN BLACK DP1 300/500W - REV001B...
- Page 12 NOTE NOTES - NOTES - NOTIZEN - NOTAS...
- Page 13 NOTE NOTES - NOTES - NOTIZEN - NOTAS...
- Page 14 Code et numéro de série du produit Code- und Seriennummer des Produkts Código y número de serie del producto QUICK S.p.A. - Via Piangipane, 120/A - 48124 Piangipane (RAVENNA) - ITALY ® Tel. +39.0544.415061 - Fax +39.0544.415047 www.quickitaly.com - E-mail: quick@quickitaly.com...
