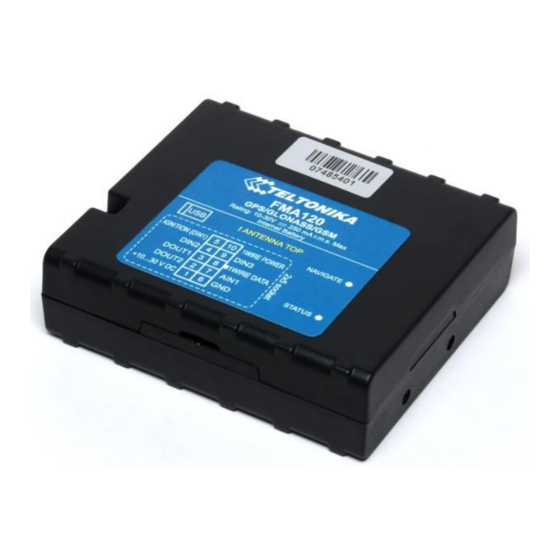

FMA120 User Manual
V1.06
*This version is suitable for device with firmware version 01.24.xx
Downloaded from
www.Manualslib.com
manuals search engine

Advertisement

Table of Contents
loading

Related Manuals for Teltonika FMA120

Summary of Contents for Teltonika FMA120

  • Page 1 FMA120 User Manual V1.06 *This version is suitable for device with firmware version 01.24.xx Downloaded from www.Manualslib.com manuals search engine...

  • Page 2: Table Of Contents

    ..............11 ECHNICAL NFORMATION ABOUT INTERNAL BATTERY ....................12 LECTRICAL CHARACTERISTICS ....................13 BSOLUTE AXIMUM ATINGS CONNECTION, PINOUT, ACCESSORIES .................. 14 FMA120 : ..............14 OW TO INSERT CARD INTO DEVICE FMA120 ....................15 NSTALLING DRIVERS LED ........................17 AVIGATE LED ........................
  • Page 3 SMS COMMAND LIST ......................54 ......................54 COMMAND LIST 6.1.1 getstatus ......................... 55 6.1.2 getweektime ......................56 6.1.3 getops ........................56 6.1.4 getcfgtime ......................56 6.1.5 getgps ........................56 6.1.6 ggps ........................56 6.1.7 getver ........................57 6.1.8 getinfo ........................57 6.1.9 getio ........................
  • Page 4 8.4.12 SMS Data send week time schedule (ID=1273) ............66 8.4.13 Authorized phone numbers (ID=1260-1270) ............66 8.4.14 SMS Event PreDefined Numbers (ID=150-159) ............66 8.4.15 Operator List (ID=1271 X) ..................66 8.4.16 Black Operator list (ID= 1272 X) ................67 ..................
  • Page 5 Send data with 0, if ignition is off (ID=1601) ............83 ....................83 EVENT CONFIGURATION 8.9.1 I/O#1 element SMS event configuration (ID=100) ..........83 FMA120 WITH LV-CAN200 AND ALL-CAN300 CAN ADAPTERS ..........87 LV-CAN200 ALL-CAN300 ............. 87 URPOSE OF DAPTERS...
  • Page 6 10.4 ....................104 ONNECTING ROUND CHANGE LOG ......................... 106 Downloaded from www.Manualslib.com manuals search engine...

  • Page 7: Introduction

    10 V...30 V DC. To avoid mechanical damage, it is advised to transport the FMA120 device in an impact- proof package. Before usage, the device should be placed so that its LED indicators are visible, which show the status of operation the device is in.

  • Page 8: Legal Notice

    AC/DC – Alternating Current/Direct Current I/O – Input/Output Record – AVL data stored in FMA120 memory. AVL data contains GPS and I/O information AVL packet - data packet that is being sent to server during data transmission. AVL packet contains from 1 to 50 records.
  • Page 9 • Firmware update over GPRS or USB port; • Configuration update over GPRS, SMS or USB port; • TCP/IP or UDP/IP protocol support; • 3500 record storing. Overvoltage protection (new devices with order code FMA120 Vxxxxx): Downloaded from www.Manualslib.com manuals search engine...

  • Page 10: Technical Features

    Storage relative humidity 5 ... 95 % (no condensation) Internal fuse: 3A, 125V Table 1. FMA120 specifications Energy consumption has been tested at 12V voltage with no battery charging. When in Deep Sleep mode no data storing and sending is activated.

  • Page 11: Technical Information About Internal Battery

    Figure 1 FMA120 view & dimensions (tolerance ±2mm) Technical Information about internal battery FMA120 internal battery is used for detecting external voltage disconnection. Charging Internal back-up battery Battery voltage V Nominal capacity (mAh) Power(Wh) temperature range (◦C) Li-Polymer rechargeable 3.75～3.90 0.64 - 0.66...

  • Page 12: Electrical Characteristics

    Electrical characteristics VALUE Min. Typ. Max. Unit CHARACTERISTIC DESCRIPTION Supply Voltage: Supply Voltage (Recommended Operating Conditions) Digital Output (Open Drain grade): Drain current (Digital Output OFF) Drain current (Digital Output ON, Recommended Operating Conditions) Static Drain-Source resistance (Digital mOhm Output ON) Digital Input: Input resistance (DIN1) kOhm...

  • Page 13: Absolute Maximum Ratings

    Short circuit current (U = 0) Note: Analog Input error margin can increase if temperature varies. If Analog input is not connected FMA120 will still measure certain numbers and it cannot be 0. This measurement is influenced by hardware components. Absolute Maximum Ratings VALUE Min.

  • Page 14: Connection, Pinout, Accessories

    3 CONNECTION, PINOUT, ACCESSORIES How to insert SIM card into FMA120 device:  Gently open FMA120 case using screwdrivers   Remove FMA120 case Insert SIM card as shown Downloaded from www.Manualslib.com manuals search engine...

  • Page 15: Installing Fma120 Drivers

    Virtual Port drivers from Teltonika website: http://avl1.teltonika.lt/downloads/FM11YX/vcpdriver_v1.3.1_setup.zip Installing drivers: Extract and run VCPDriver_V1.3.1_Setup.exe. This driver is used to detect FMA120 device connected to the computer. Click 'Next' in driver installation window (figures below): Downloaded from www.Manualslib.com manuals search engine...
  • Page 16 Setup will continue installing drivers and will display a window about successful process at the end. Click 'Finish' to complete setup: Figure 4 Driver installation window You have now installed drivers for FMA120 device successfully. Downloaded from www.Manualslib.com manuals search engine...

  • Page 17: Navigate Led

    Navigate LED Behaviour Meaning Permanently switched on GPS signal is not received Blinking every second Normal mode, GPS is working GPS is turned off because: • Deep sleep mode • GPS module is turned off Status LED Behaviour Meaning Blinking every second Normal mode Blinking every 2 seconds Deep sleep mode...

  • Page 18: Usb

    Table 2. Socket 2x5 pinout description Mini USB connector Figure 6 Mini USB type B connector FMA120 connected to PC creates an STM Virtual COM Port, which can be used as a system port (to flash firmware and configure the device): Figure 7 COM-Ports Downloaded from www.Manualslib.com...

  • Page 19: Accessories

    1 – Wire devices One of the realized features FMA120 is 1-Wire® data protocol, which enables connection of thermometer (DS1820, DS18S20 and DS18B20) and I-Button type: DS1990A (Figures 8 and 9 show FMA120 and 1-wire® device connection schemes).
  • Page 20 A fuel tank level sensor exists in most cars, which shows the approximate fuel level in the driver’s indicator panel. It is possible to connect FMA120 Analog input to it (if sensor returns analogue signal proportional to fuel level). Figure shows the connection scheme to the FMA120 and fuel tank sensor.
  • Page 21 In cases when sensor output signal is negative, an additional relay has to be installed to convert negative signal to positive. Figure 12 Inverting relay connection Immobilizer relay When connected as shown below, FMA120 disables engine starter when output is ON. More details about relays can be found below. Figure 13 Immobilizer relay connection Relays An ordinary automotive relay is used to invert input signal or to immobilize engine starter.

  • Page 22: Firmware

    FMA120 functionality is always improving, new firmware versions are developed. Current module firmware version can be retrieved from Configurator. Connect FMA120 to PC with the USB cable. Launch “Firmware Updater”, select COM port to which device is connected, click connect, and when IMEI and Firmware version fields are filled, start the update.

  • Page 23: Operational Basics

    GNSS data and I/O information. Module uses GNSS receiver to acquire GNSS data and is powered with four data acquire methods: time-based, distance-based, angle-based and speed- based method. Note, that if FMA120 loses connection to GNSS satellites, it continues to make records, however coordinate in these records remains the same (last known coordinate).

  • Page 24: Sleep Modes

    (defined period) starts counting when device is in STOP mode. After timeout is reached and all conditions for sleep mode are met, device goes to sleep mode. While in sleep mode, FMA120 turns GPS module off and it is not making new periodic records. Only event records is being recorded with last known coordinate and sent to AVL server.

  • Page 25: Virtual Odometer

    It keeps adding these intervals until it is time to make a record, then FMA120 records its location and adds odometer value, which is equal to the sum of all distances, measured every second.

  • Page 26: Trip

    (configured Ignition Source). Next time before driving user has to disable Auto Geofencing with iButton or by turning on ignition. In case of theft car leaves Auto Geofencing zone without authorization FMA120 device automatically sends high priority record to AVL application. 5.4.4...

  • Page 27: Configuration

    FMA120 has one user editable profile, which can be loaded from device, and saved. User can also revert to default settings, by pressing Load Defaults button. After any modification of configuration settings it has to be saved to FMA120 device, otherwise it will not be written to device.
  • Page 28 FMA120 is more configurable. Figure 18 Advanced Configuration window FMA120 Configurator is divided into main areas: 1 – main button area, 2 – information area, 3 –settings menu, 4 – parameters and values menu, 5 – recommended configuration values.

  • Page 29: Record Storage

    Record storage FMA120 can store up to 3500 data records if GSM or GPRS is not available at the moment. It will send data later when GPRS is available again. Note that FMA120 can have memory full of records.
  • Page 30 Stop Detection Vehicle on Stop mode Vehicle Moving mode Source Ignition If ignition (configured Ignition If ignition (configured Ignition (recommended) Source) is logic low Source) is logic high Msensor (movement Internal movement sensor does Internal movement sensor detects sensor) not detect movement movement GPS fix is available and vehicle GPS fix is available and vehicle...

  • Page 31: Records Settings

    Essential fields in ‘SMS’ part are ‘Login’ and ‘Password’. The login and password are used with every SMS sent to FMA120. If login and password are not set, in every SMS sent to FMA120 device two spaces before command have to be used (<space><space><command>).
  • Page 32 SMS request messages – answers are always sent back to sender telephone number. FMA120 can send binary SMS with 24-coordinates-in-one-SMS. It is used in areas where no GPRS coverage is available. Module collects data and sends to server binary SMS containing information about last 24 collected points.

  • Page 33: Gsm Settings, Operator List

    Figure 23 Operator list configuration If operator list is left empty, it will allow using GPRS to any GSM operator. Please note that FMA120 will work in Unknown mode only (make sure it is configured to allow data sending – GPRS context is enabled).

  • Page 34: Data Acquisition Mode Settings

    Figure 25 Black operator list configuration 5.13 Data Acquisition Mode settings Data Acquisition Modes are an essential part of FMA120 device, it is also highly configurable. By configuration user defines how records will be saved and sent. There are three different modes: Home, Roaming and Unknown.
  • Page 35 This functionality allows having different AVL records acquire and send parameters values when object is moving or stands still. Vehicle moving or stop state is defined by Stop Detection Source parameter. There are 3 ways for FMA120 to switch between Vehicle on Stop and Vehicle Moving modes see section 5.7.
  • Page 36 Figure 25 Data Acquisition Mode configuration Downloaded from www.Manualslib.com manuals search engine...
  • Page 37 New GPRS context is opened if time is 10 minutes till time checked in table. Therefore if all boxes are checked, FMA120 is able to open new connection anytime. At scheduled time match FMA120 checks for GPRS session activity.
  • Page 38 Note: Keep in mind that FMA120 operates in GMT:0 time zone, without daylight saving. FMA120 is able to collect records using three methods at the same time: time, distance and angle based data acquisition: Time based data acquiring (Min. period) – records are being acquired every time when defined interval of time passes.

  • Page 39: Features Settings

    5.14 Features settings For more information about available Scenarios, Trip, Geofencing and iButton list, refer to 5.4 chapter. 5.14.1 Scenarios settings In Scenarios window four different scenarios are available to use. More than one scenario can manage the same DOUT. If DOUT Control is disabled, scenarios can only generate events without digital output activation.

  • Page 40: Trip Settings

    time period and will be deactivated after time expires). If jamming ends before this timeout occurs, then digital output will be deactivated and timeout countdown will reset. Jamming can be deactivated with iButton. When jamming event is detected and DOUT is activated it can be deactivated with iButton.
  • Page 41 Figure 33 Trip continuous distance counting parameter example Continuous odometer calculates the distance if Total Distance I/O element is enabled. Odometer Value is constantly saved to flash memory every 30 seconds, but counted every second. After power is turned off, odometer value saved in flash does not reset. Start odometer value with can be set using configurator („set“...

  • Page 42: Geofencing Settings

    Figure 37 Remember iButton parameter in configurator 5.14.3 Geofencing settings FMA120 has 5 configurable Geofence zones and it can generate an event when defined Geofence zone border is crossed. Frame border – frame border is an additional border around Geofence zone. It is additional area around defined zone used to prevent false event recording when object stops on the border of the area and because of GPS errors some records are made inside area and some –...
  • Page 43 Figure 35 Geofence configuration AutoGeofencing settings AutoGeofence – the last known position after movement = off. If your car’s being taken away – you can be notified. The shape and size of the geofence zones are parameters. It is possibility to state whether entering in or out of the geofence triggers an asynchronous message.

  • Page 44: Sms Events

    • AutoGeofence • I/O event When any of the above events is triggered, FMA120 sends a configured SMS message to a defined phone number. If SMS events is activated, but there are no numbers defined in SMS events PreDefined Numbers list (figure 34), then the device will not send any messages.
  • Page 45 The sent SMS messages format is according to: “Date Time EventText” For example, if FMA120 is configured to send an SMS, when Digital Input 1 reaches High level, with priority High and configured to generate event on both range enter and exit (figure 35), then the sent SMS is: “2012/6/7 12:00:00 Digital Input 1”...

  • Page 46: Sms Events Configuration

    ATTENTION! If FMA120 is in Deep Sleep mode and SMS event occurs with LOW priority (which does not wake up FMA120), then the device does not send the message. It is saved in device memory until it wakes up from Deep Sleep mode and GSM modem starts working normally.
  • Page 47 Trip In order to configure Trip SMS events click on Trip window and Enable Trip feature (figure 37). Then go to GSM -> SMS -> SMS Events settings and Enable Trip SMS event. After enabling SMS Events (figure 38), trip event will be triggered and message sent, when Trip starts (GNSS speed exceeds the speed in Start Speed (ex.
  • Page 48 Figure 42 Geofence SMS event configuration AutoGeofence SMS events for AutoGeofence are configured the same as in Geofence. AutoGeofence is next to Geofence configuration (figure 40), for SMS events configuration, go to GSM -> SMS -> SMS Events. Downloaded from www.Manualslib.com manuals search engine...
  • Page 49 Figure 43 AutoGeofence SMS event configuration I/O events FMA120 sends SMS event message when a configured I/O property enters and/or exits its configured High/Low boundaries or Hysteresis event generation is chosen (Monitoring does not generate event, so SMS event could not be configured). Every IO element SMS event can be configured to send individual message to different numbers.

  • Page 50: I/Osettings

    Figure 44 I/O SMS event configuration 5.15 I/O settings When no I/O element is enabled, AVL packet comes with GPS information only. After enabling I/O element(s) AVL packet along with GPS information contains current value(s) of enabled I/O element. Permanent I/O elements (are always sent to server if enabled) Property Name Bytes...
  • Page 51 0 – not deep sleep mode, 1 – GPS sleep Sleep mode mode, 2 – deep sleep mode Cell ID GSM base station ID Location Area code (LAC), it depends on GSM operator. It provides unique number Area Code which assigned to a set of base GSM stations.

  • Page 52: Monitoring

    Figure 45 I/O settings Enabled or disabled field – allows enabling I/O element so it is added to the data packet and is sent to the server. By default all I/O element are disabled and FMA120 records only GPS coordinates.

  • Page 53: Event Generating

    Figure 46 I/O settings 5.15.2 Event Generating Events happen when the value of enabled I/O intersects thresholds (enter, exit or on both) predefined by High and Low level thresholds. Table below defines all available values of I/O settings. Setting Value Priority low, high High level...

  • Page 54: Sms Command List

    Figure 49 Event generation according hysteresis algorithm 6 SMS COMMAND LIST Read chapter 0 to know how to construct a proper SMS message and send it to FMA120 device. All commands are case sensitive. While FMA120 operates in Deep Sleep mode and user tries to send SMS message it cannot arrive to FMA120 device, because GSM/GPRS module is disabled most of the time (wake up depends on Send Period parameter).

  • Page 55: Getstatus

    getparam # Readout parameter value according entered ID. # - ID value. setparam # # Set parameter value according entered ID and Value. 1.# - ID value. 2.# - New Parameter Value getparam 1271 X X values can be 1,2,3. flush #,#,#,#,#,#,# Initiates all data sending to specified target server 1.# - IMEI...

  • Page 56: Getweektime

    6.1.2 getweektime Response details Description Clock Sync Indicates system clock synchronization status. 0 – System is not synchronized, 1 – System synchronized Day Of Week – indicates current day of week starting from 1 – Monday, 2 – Tuesday, etc. Time Indicates current GMT time WeekTime...

  • Page 57: Getver

    Example: D:2013/7/4 T:0:0:0 S:0 C:0, 0 Url: http://maps.google.com/?q=0,0&om=1speed:0 6.1.7 getver Response details Description Code Ver Firmware version Device IMEI IMEI Device ID Device ID is used to detect by server which type of configuration to load Bootloader Ver Bootloader Version Modem App Ver Version of modem application (veiks: nuo 00.05.14) Revision...

  • Page 58: Readio

    Example: DI1:0 DI2:0 DI3:0 AIN:0.0611 DO1:0 DO2:0 6.1.10 readio # Response details Description I/O element ID Value I/O Element value Example: I/O ID:3 Value:0 6.1.11 setdigout ## Y1 Y2 Sets digital outputs to ON or OFF state (for some time if needed). Value is written as a row for OUT1 and OUT2 values.

  • Page 59: Readops

    6.1.17 readops # Send from device Operator List. 1 – send first 20 operator codes, 2 – send from 21 to 40 operator codes, 3 – send all other operator codes. 6.1.18 flush #,#,#,#,#,#,# Initiates all data sending by GPRS to specified target server. Comma separated parameters go as numbered: 1.# - IMEI 2.# - APN...

  • Page 60: Debug Mode

    Response: “CAN Program Nr: XXXX” 7 Debug mode FMA120 is able to transmit its current state when connected to PC using USB cable. It is used to detect errors and provide information to possible solutions when operating as unexpected. Download Terminal from: http://avl1.teltonika.lt/Downloads/Software/Terminal.zip.

  • Page 61: Parameter List

    (value 1) module reduces level of power usage by turning GPS module to sleep, in deep sleep mode (value 2) module turns GPS module to sleep and switch GSM module off (note, that FMA120 do not receive SMS while in deep sleep). Minimum...

  • Page 62: Static Navigation (Id=1003)

    8.2.5 Static Navigation (ID=1003) When static navigation is enabled, FMA120 filters out GPS jumps, when it is not moving. When it is disabled, it does not make any changes to collected GPS data. Minimum Maximum Recommended Goes with (depends on)

  • Page 63: Gnss Fix Timeout (Id=1007)

    Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type 8.2.11 GNSS fix Timeout (ID=1007) This parameters defines GNSS fix Timeout for time synchronization via NTP. Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type 259200...

  • Page 64: Gsm Parameters

    ATTENTION! Some GSM operators may disconnect the device from an active data link if the device doesn’t send any data for a very long time, even if active data link timeout is set to maximum value. The amount of time that an operator keeps the link open depends solely on the operator.

  • Page 65: Domain (Id=1245)

    string Name (ID=1242) APN username (ID=1243) 8.4.5 Domain (ID=1245) Parameter defines AVL data destination server IP address. Example: 212.47.99.62 Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type 31 char GPRS content activation (ID=1240) S8[16] (ID=1245) string Domain 8.4.6...

  • Page 66: Sms Data Sending Settings (Id=1250)

    8.4.11 SMS data sending settings (ID=1250) Parameter allows or does not allow sending AVL data using binary SMS. If SMS use is not allowed value is 0 and 1 if SMS use is allowed. Minimum Maximum Recommended Goes with (depends on) Value value value...

  • Page 67: Black Operator List (Id= 1272 X)

    8.4.16 Black Operator list (ID= 1272 X) Parameter defines the operator list. X defines the starting position that will be changed: If X is between 0 and 49, X shows the index of the operator code from the blacklist (the operator code has to be previously configured in the list).

  • Page 68: Home Network Gsm Operator Code "Vehicle Moving" Parameters

    which means Sunday. Eighth bit (MSB) is not used. If bits value is 0 then device is not allowed to open GPRS context, but if it is already open – does not close it. If value is 1 it will work as day minutes are defined in rest of the bytes.

  • Page 69: Min Saved Records (Id=1553)

    8.5.2.4 Min Saved Records (ID=1553) This parameter defines minimum number of records in one data packet that can be sent to server. It has higher priority than Data Send Period (ID=1554). Minimum Maximum Recommended Goes with (depends on) Value value value value parameters...

  • Page 70: Min Saved Records (Id=1563)

    Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type 2592000 8.5.3.2 Min Saved Records (ID=1563) This parameter defines minimum number of records in one data packet that can be sent to server. It has higher priority than Data Send Period (ID=1564). Minimum Maximum Recommended...

  • Page 71: Min Saved Records (Id=1573)

    new record is stored. This parameter is operational, when speed is higher than 10km/h. If value is 0 it means no records by min angle will be saved. Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type Min Period (ID=1570) Min Distance (ID=1571)

  • Page 72: Unknown Network Gsm Operator Code "Vehicle On Stop" Parameters

    8.5.5 Unknown Network GSM operator code “Vehicle on STOP” parameters 8.5.5.1 Min Period (ID=1580) This parameter indicates time interval in seconds in order to acquire new record. If value is 0 it means no records by min period will be saved. Minimum Maximum Recommended...

  • Page 73: Min Angle (Id=1592)

    GPRS Week Time (ID=1595) 8.5.6.3 Min Angle (ID=1592) This parameter indicates angle in degrees in order to acquire new record. If angle difference between last recorded coordinate and current position is greater than defined value, new record is stored. This parameter is operational, when speed is higher than 10km/h. If value is 0 it means no records by min angle will be saved.

  • Page 74: Min Speed Source (Id=1597)

    8.5.6.8 Min Speed Source (ID=1597) This parameter defines Source for speed difference calculation: 0 – GPS, 1 – LVCAN Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type Min Speed (ID=1596) Features Parameters 8.6.1 Green driving scenario (ID=1890) This parameter lets enable/disable Green driving scenario.

  • Page 75: Overspeeding Scenario (Id=1895)

    Green driving scenario (ID=1890) Reference for Max Cornering Force values: • 0,4 - 0,45 G force – items that are left on the back seat start to slide to the side while the car is on turn; • 0,75 – 0,95 G force – most of the cars loose grip on turn (normal environment conditions). 8.6.6 Overspeeding scenario (ID=1895) This parameter enables/disables Overspeeding scenario.

  • Page 76: Jamming Timeout (Id=1901)

    Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type Jamming scenario (ID=1899) 8.6.12 Jamming Timeout (ID=1901) This parameter represents DOUT turning on timeout when jamming is detected. Minimum Maximum Recommended Goes with (depends on) Value value value value parameters...

  • Page 77: Start Speed (Id=1281)

    8.6.18 Start Speed (ID=1281) This parameter represents speed, which is detected as minimum speed to indicate TRIP START and generate event. Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type Trip (ID=1280) 8.6.19 Ignition Off Timeout (ID=1282) This parameter represents timeout to wait if ignition is off in order to detect TRIP STOP and generate event.

  • Page 78: Geofence Zone #1 Shape (Id=1030)

    value value value parameters type 1000000 1000 All Geofencing parameters 8.6.23.2 Geofence Zone #1 Shape (ID=1030) Geofence shape parameter can be: circle – value 0; rectangle – value 1. Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type All Geofencing parameters...

  • Page 79: Geofence Zone #1 Latitude (Y2) (Id=1036)

    For rectangle: Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type -180 All Geofencing parameters Float For circle: Minimum Maximum Recommend Goes with (depends on) Value value value ed value parameters type 1000000 1000 All Geofencing parameters Float 8.6.23.8 Geofence Zone #1 Latitude (Y2) (ID=1036) If shape is rectangular, then ID=1036 is right upper corner Y coordinate.

  • Page 80: Autogeofence Event Priority (Id=1103)

    8.6.24.4 AutoGeofence event Priority (ID=1103) Parameter defines AutoGeofence event priority: 0 is low, 1 – high; Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type Enable/Disable (ID=1101) AutoGeofence event generating (ID=1104) 8.6.24.5 AutoGeofence event generating (ID=1104) Generate event: 0 –...

  • Page 81: I/O#1 Priority (Id=1301)

    8.7.2 I/O#1 priority (ID=1301) Parameter defines I/O property type of priority: 0 is low, 1 – high, 2 – panic. Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type I/O#1 property parameter (ID=1300) I/O#1 High level (ID=1302) I/O#1 Low level (ID=1303) I/O# logic operand (ID=1304) I/O#1 Averaging length (ID=1305)
  • Page 82 Minimum Maximum Recommended Goes with (depends on) Value value value value parameters type I/O#1 property parameter (ID=1300) I/O#1 priority (ID=1301) 2592000 I/O#1 High level (ID=1302) I/O# Low level (ID=1303) I/O#1 Logic operand (ID=1304) Other I/O property elements can be configured in same logic. All I/O element parameters are listed in the next table.

  • Page 83: Lv-Can Parameters

    LLS Fuel3 1760- 1765 LLS Temp3 1770- 1775 LLS Fuel4 1780- 1785 LLS Temp4 1790- 1795 LLS Fuel5 1800- 1805 LLS Temp5 1810- 1815 Dallas Temperature 2 1830- 1835 Dallas Temperature 3 1850- 1855 Dallas Temperature 4 1870- 1875 Dallas Temperature ID 1 1820- 1825 Dallas Temperature ID 2 1840- 1845...
  • Page 84 LV-CAN200 is configured Element name (default SMS Event Text) Digital input 1 Digital input 2 Digital input 3 Analog input1 Digital output 1 Digital output 2 GNSS PDOP GNSS HDOP External voltage GNSS Status Movement sensor Trip distance GSM operator code Speed iButton ID Data mode...
  • Page 85 Geofence 2 Geofence 3 Geofence 4 Geofence 5 AutoGeofence ALL-CAN300 configured Element name (default SMS Event Text) Digital input 1 Digital input 2 Digital input 3 Analog input1 Digital output 1 Digital output 2 GNSS PDOP GNSS HDOP External voltage GNSS Status Movement sensor Trip Distance...
  • Page 86 Green Driving Overspeeding Jamming detection Immobilizer Trip Geofence 1 Geofence 2 Geofence 3 Geofence 4 Geofence 5 AutoGeofence LVC ModuleID LVC Engine Work time LVC Engine Work time(counted) LVC Total Mileage (counted) LVC Fuel Consumed (counted) LVC Fuel Rate LVC AdBlue Level (percent) LVC AdBlue Level (liters) LVC Engine Load LVC Engine Temperature...

  • Page 87: Fma120 With Lv-Can200 And All-Can300 Can Adapters

    LV-CAN200 is used to listening data from light vehicles, while ALL-CAN300 is used to listening data from any type of transport: light vehicles, Trucks, busses, agriculture and other special transport. With those adapters FMA120 device is able to collect and send vehicle data. Downloaded from www.Manualslib.com...

  • Page 88: Lv-Can200 And All-Can300 Program Number Selection

    LV-CAN200 FMA120 cable USB Cable FMA120 Figure 51 connection block diagram FMA120 shares the same USB port for connecting adapter and configuring device with PC. LV-CAN200 and ALL-CAN300 Technical characteristics: PARAMETER VALUE Supply voltage 9 to 50V Power supply current...

  • Page 89: Simple-Can - Contactless Can-Bus Reader

    • Release the SWITCH, then LED starts blinking and counting second digit of program number • To stop counter push SWITCH • Release the SWITCH, then LED starts blinking and counting third digit on program number • To stop counter push SWITCH •...

  • Page 90: Connecting Fma120 Can Adapters All-Can300 And Lv-Can200

    CAN-BUS transmission has failed or ignition during calibration was not ON. Connecting FMA120 Can adapters ALL-CAN300 and LV-CAN200 Connect USB Plug to FMA120 device, connect Light Vehicles Can adapter to other end of the cable. Connect Light Vehicles Can adapter Pin 1 and Pin 2 to cars CAN bus. CAN interface location of the supported light vehicle is described on mounting scheme.

  • Page 91: Fma110 Configuration

    FMA120 can be configured using “SCAN” function or “Offline Configuration” (Figure 58) SCAN function – is in use when FMA120 is connected to CAN adapter (Figure 55), then wait 10s (Note, that car engine must be started), disconnect adapter from FMA120, and connect PC USB cable to FMA120 Device (Figure 55).
  • Page 92 For example Speed changes, low fuel level, engine temperate, etc. Send data to server field – allows enabling CAN element so it is added to the AVL data packet and sent to the server. By default, all CAN elements are disabled and FMA120 records only GPS data.
  • Page 93 (Hysteresis). High and Low levels – defines CAN value range. If CAN value enter or exits this range, FMA120 generates event by “Data Acquisition Type” settings. Figure 57 show example of FMA120 CAN configuration.
  • Page 94 Program number lock Module ID lock Engine Work Time lock Engine Work Time lock (counted) Total Mileage (counted) lock Fuel Consumed (counted) lock Fuel Rate reset AdBlue Level (percent) lock AdBlue Level (liters) lock Engine Load reset Engine Temperature active Axle 1 Load lock Axle 2 Load...

  • Page 95: Parameters Id

    Driver1 Cumulative Driving active Time Driver2 Cumulative Driving active Time Parameters ID When no I/O element is enabled, AVL packet comes with GPS information only. After enabling I/O element(s) AVL packet along with GPS information contains current value(s) of enabled I/O element. AVL packet decoding is described in “FMXXXX Protocols” document. List of available CAN bus data, parameter size, ID and value range you can find in table 9.1 and 9.2.
  • Page 96 Ltr * 10 Fuel Consumed Fuel Consumed Ltr * 10 (counted) * proc.* Fuel Level [%] Ltrs * 10 Fuel Level [liters] (Ltrs * 10) / h Fuel Rate AdBlue Level proc. (percent) Ltrs * 10 AdBlue Level (liters) Engine RPM proc.
  • Page 97 Driver1 Continuous Driving Time Driver2 Continuous Driving Time Driver1 Cumulative Break Time Driver2 Cumulative Break Time Driver1 Duration Of Selected Activity Driver2 Duration Of Selected Activity Driver1 Cumulative Driving Time Driver2 Cumulative Driving Time Driver1 ID High ASCII Driver1 ID Low ASCII Driver2 ID High ASCII...
  • Page 98 0x04 – FAP 0x08 – Electronics pressure control 0x10 – Parking lights 0x20 – Dipped headlights 0x40 – Full beam headlights Byte3: 0x40 – Passenger's seat belt 0x80 – Driver's seat belt Agricultural Byte0 (LSB): machinery flags 0x01 – Mowing 0x02 –...
  • Page 99 0x20 – Right joystick moved left 0x40 – Right joystick moved front 0x80 – Right joystick moved back Byte5: 0x01 – Brushes turned on 0x02 – Water supply turned on 0x04 – Vacuum cleaner 0x08 – Unloading from the hopper 0x10 –...
  • Page 100 Byte3: 0x01 – Front left door opened 0x02 – Front right door opened 0x04 – Rear left door opened 0x08 – Rear right door opened 0x10 – engine cover opened 0x20 – trunk door opened Byte4: 0x01 – car was closed by the factory's remote control 0x02 –...

  • Page 101: Sms Configuration

    SMS Configuration CAN Bus IO elements can be configured remotely via SMS command. First ID number is always ‘2’, seconds ID number is always ‘0’. Third ID number refers to specific LV-CAN200 or ALL- CAN300 IO element (table 9.3). And the last ID number refers to sections – Property; Generation Type;...

  • Page 102: Can Program Number Request By Sms

    Driver1 States 2370-2373 Driver2 States 2380-2383 Driver1 Continuous Driving Time 2390-2393 Driver2 Continuous Driving Time 2400-2403 Driver1 Cumulative Break Time 2410-2413 Driver2 Cumulative Break Time 2420-2423 Driver1 Selected Activity Duration 2430-2433 Driver2 Selected Activity Duration 2440-2443 Driver1 Cumulative Driving Time 2450-2453 Driver2 Cumulative Driving Time 2460-2463...

  • Page 103: Get Can Info By Sms

    Get CAN info by SMS Full LV-CAN information via SMS: SMS Text: “lvcangetinfo” Response: “Prog: 139 SWRevison: 6 KernVer: 10 KernVar: 49 MdlID: 8884443332221110” Clear counted parameters value It is possible to clear Total Mileage (counted), Engine Work Time (counted), Fuel Consumed (counted) parameters with following SMS command.
  • Page 104 • FMA120 must be placed sticker on TOP (please refer picture below). • It’s forbidden to place FMA120 under metal surfaces. • It’s recommended to place FMA120 device far from car radio, speakers or alarm systems. • FMA120 must be placed so its state is as horizontal as possible.
  • Page 105 Figure 51 Correct placement of FMA120 Downloaded from www.Manualslib.com manuals search engine...
  • Page 106 11 CHANGE LOG Date Version Comments 2016-10-26 1.00 Preliminary draft release. 2016-12-29 1.01 Changes for LVD. Changes for Technical details and Electric characteristics and minor tweaks. ALLCAN AVL IDs updated. 2017-02-02 1.02 “Setdigout” command description updated 2017-02-16 1.03 Simple CAN description added 2017-03-20 1.04 New version release for new base firmware 01.24.xx...
