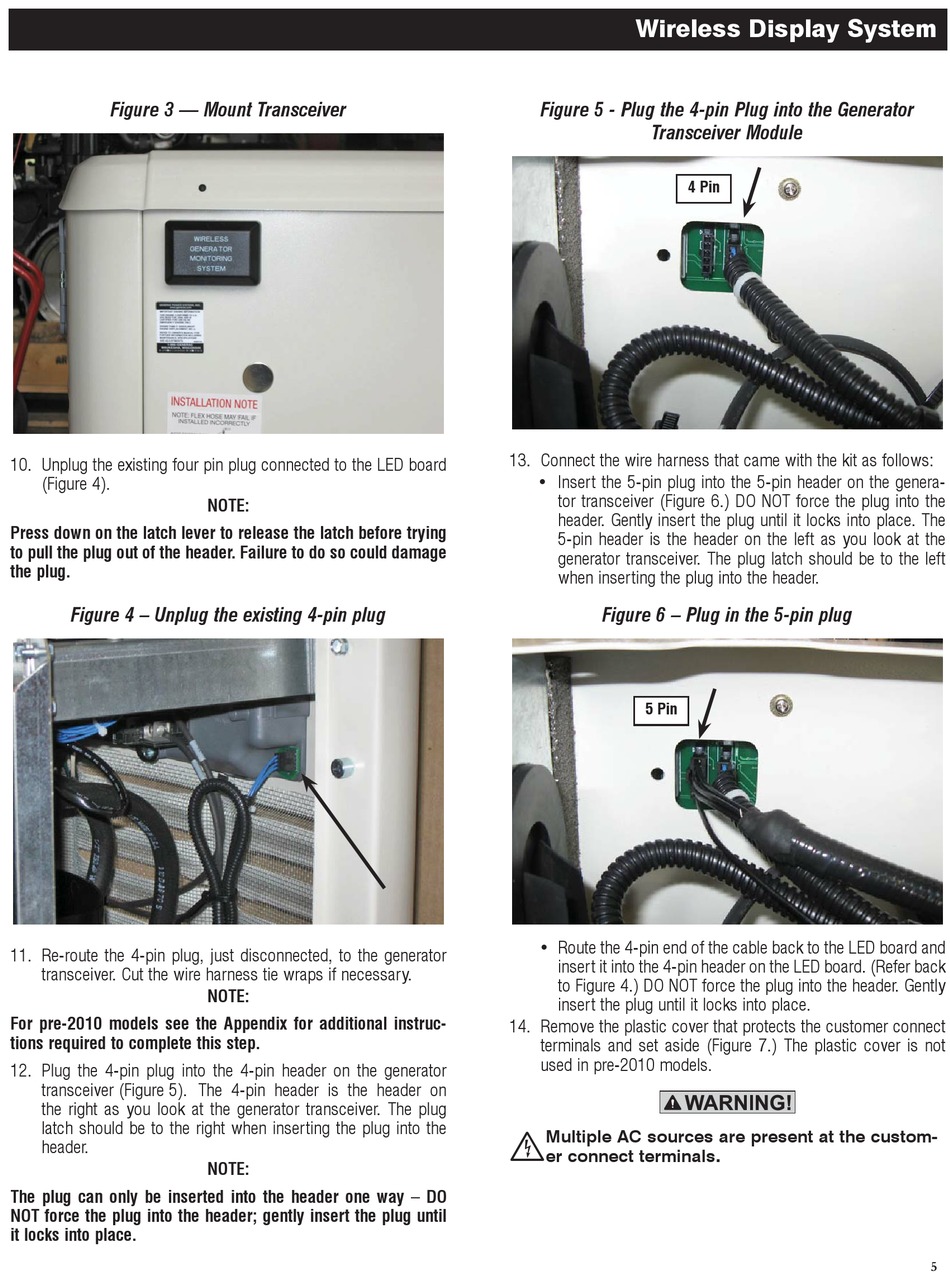

Figure 3 — Mount Transceiver
10. Unplug the existing four pin plug connected to the LED board
(Figure 4).
Press down on the latch lever to release the latch before trying
to pull the plug out of the header. Failure to do so could damage
the plug.
Figure 4 – Unplug the existing 4-pin plug
11. Re-route the 4-pin plug, just disconnected, to the generator
transceiver. Cut the wire harness tie wraps if necessary.
For pre-2010 models see the Appendix for additional instruc-
tions required to complete this step.
12. Plug the 4-pin plug into the 4-pin header on the generator
transceiver (Figure 5). The 4-pin header is the header on
the right as you look at the generator transceiver. The plug
latch should be to the right when inserting the plug into the
header.
The plug can only be inserted into the header one way – DO
NOT force the plug into the header; gently insert the plug until
it locks into place.
NOTE:
NOTE:
NOTE:
Wireless Display System
Figure 5 - Plug the 4-pin Plug into the Generator
Transceiver Module
4 Pin
13. Connect the wire harness that came with the kit as follows:
• Insert the 5-pin plug into the 5-pin header on the genera-
tor transceiver (Figure 6.) DO NOT force the plug into the
header. Gently insert the plug until it locks into place. The
5-pin header is the header on the left as you look at the
generator transceiver. The plug latch should be to the left
when inserting the plug into the header.
Figure 6 – Plug in the 5-pin plug
5 Pin
• Route the 4-pin end of the cable back to the LED board and
insert it into the 4-pin header on the LED board. (Refer back
to Figure 4.) DO NOT force the plug into the header. Gently
insert the plug until it locks into place.
14. Remove the plastic cover that protects the customer connect
terminals and set aside (Figure 7.) The plastic cover is not
used in pre-2010 models.
 M ultiple AC sources are present at the custom-

er connect terminals.
