Wireless Display System
The red, yellow and green LED's are also utilized during the
pairing process. See the "display unit startup" section for
details.
PAIR/RESET BUTTON
The display unit has a Pair/Reset button on the bottom of the
enclosure (Figure 11). The Pair/Reset button has three functions.
• It is used to pair the display unit with the generator transceiver
during installation by being pressed and held for 3 seconds.
See the installation section for complete instructions.
If the button is held for 3 seconds during normal operation, the
display unit will go into pairing mode which will be indicated by
a flashing yellow LED. If this happens simply release the button
and allow the display unit to complete its pairing attempt and
"fail to pair" which will be indicated by a flashing red LED. Once
the red LED begins flashing, momentarily press and release the
pair reset button to exit pairing mode. The previously stored
pairing information will not be deleted and the display will
return to normal operating mode.
• It will silence the internal buzzer when briefly pressed and
released.
• It will reset the display unit and remove its pairing information
if pressed and held for 10 seconds or more. Avoid this during
normal use as the system will cease to operate and the pairing
process will need to be performed again.
INSTALLATION
GENERATOR SIDE TRANSCEIVER INSTALLATION
INSTRUCTIONS - AIR COOLED GENERATORS
The following steps illustrate how to mount the generator side
transceiver to an air cooled generator.
For liquid cooled generator applications an adaptor kit is required
and comes with additional instructions.
The generator battery will be disconnected and reconnected
during the installation process which may result in an "Inspect
Battery" warning being displayed on the generator controller.
This is normal and is no cause for concern; simply clear the
warning from the generator controller following the operating
instructions for the Generator controller. The time and date will
also need to be reset once the starting battery is reconnected.
1.
Open the top lid of the generator.
2.
Set the Auto/Off/Manual switch to the Off position.
3.
Remove the 7.5 Amp control panel fuse.
4.
Remove the front access panel from the enclosure
5.
Disconnect the negative battery cable.
6.
Remove retaining screws and then remove the control panel
cover (Figure 1).
4
NOTE:
NOTE:
NOTE:

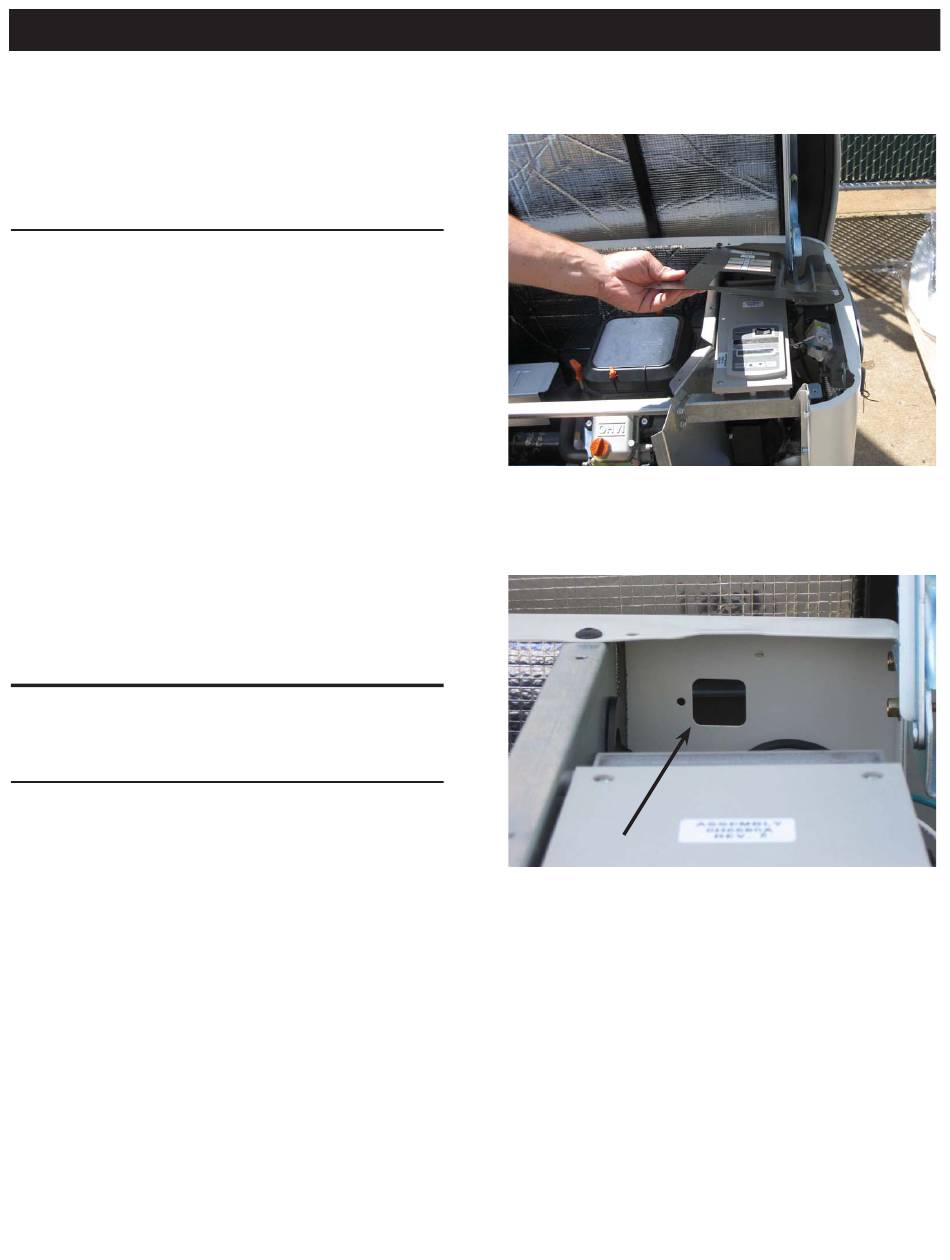

Figure 1 — Remove Control Panel Cover
7.
Remove the cover plate and rubber gasket from the backside
of the generator. (Figure 2).
Figure 2 — Remove Cover Plate & Rubber Gasket
8.
Remove the generator transceiver from the package and verify
the gasket is properly located in its groove.
9.
Mount the generator transceiver to the generator using the two
(2) screws and flat washers provided (Figure 3).
