MCTRL4K Independent Controller
User Manual

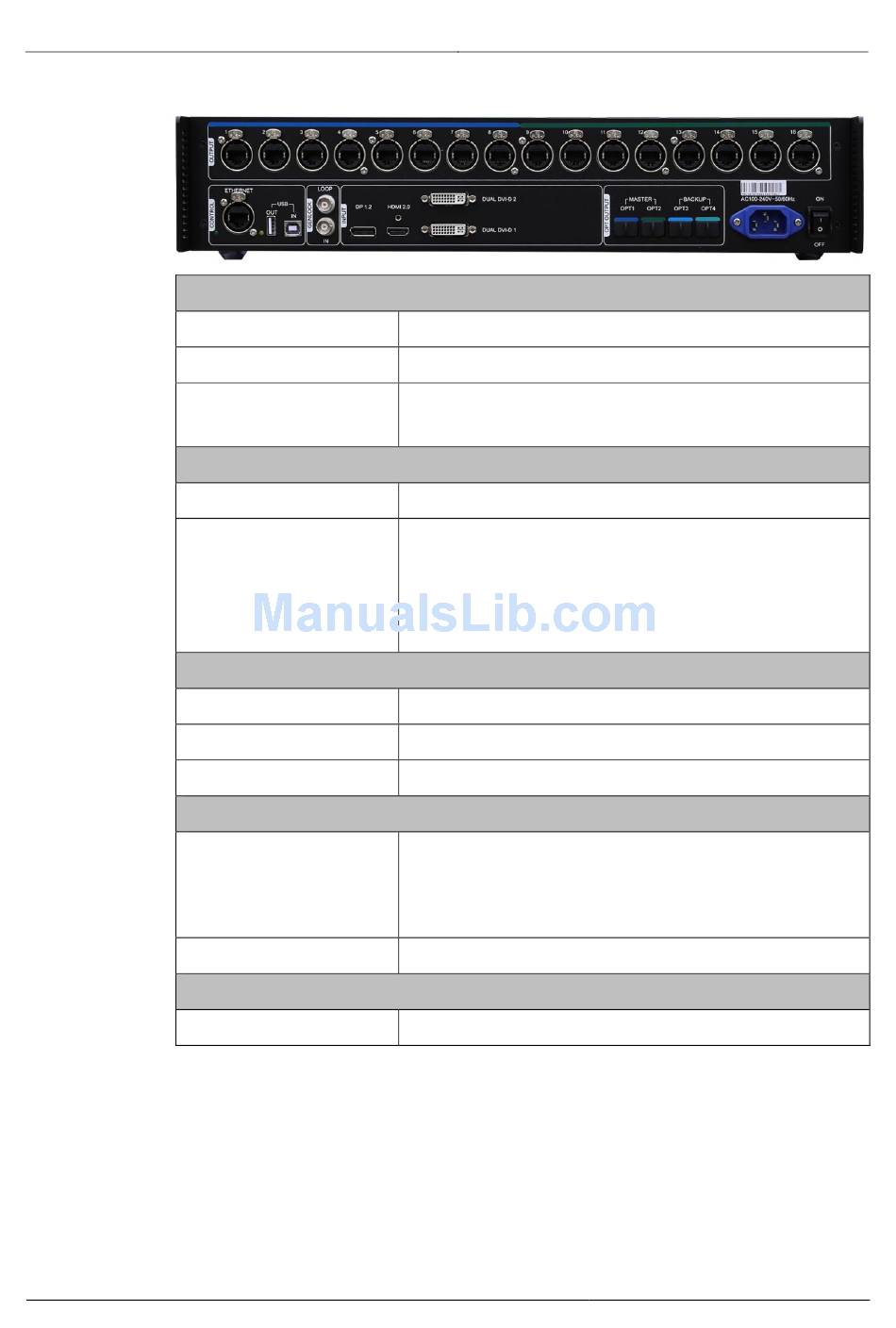

Rear Panel
Input
DP 1.2
HDMI 2.0
DUAL DVI-D1
DUAL DVI-D2
Output
1–16
OPT1–4
Control
ETHERNET
USB IN
USB OUT
GENLOCK
IN
LOOP
Power Connector
AC 100-240V–50/60Hz
Note: Type-A USB port is prohibited from being connected to the upper computer
directly.
www.novastar.tech
DP 1.2 connector
HDMI 2.0 connector
Dual-link DVI connector
16 × Neutrik (NE8FBH) Gigabit Ethernet outputs.
4 × Fiber optical outputs
OPT1 corresponds to Ethernet ports 1–8, while OPT2
corresponds to Ethernet ports 9–16.
OPT3 serves as the backup for OPT1, while OPT4 serves
as the backup for OPT2.
For PC connection
Input port for cascading devices, or for PC connection
Output port for cascading devices
Genlock type: Blackburst
It is the GenLock synchronization signal which is used to
ensure synchronization between the LED screen display
and external GenLock source.
GenLock loop output
AC power input
