95 EVM: Viewing Data
EVM Panel Layout View (PLV) Page
❶
❷
❸
2. To change the graph/table data parameters, click on the
may have different configurable parameters depending on the parameters applicable to the
specific panel.
3. To view the data as a report, click the
 NOTE: The panels will print in the order in which they are displayed in the panel layout page.
4. The quick tips below explain how to customize the panels and/or graphs/tables:

To stretch the graph/tables, click on one the corner's edge of a chart or table and drag the
mouse. The graph/table will expand or shrink when resizing.

To move the graph, click, drag and drop to the appropriate panel position.

To change ranges, when clicking on either the x-axis or y-axis, click and drag the mouse until
the appropriate range is selected.
 NOTE: It will span the numbers up or down depending on how you drag the mouse.

To save a layout, Right-click outside the tables/graphs area as displayed below. Click
Remember Setting (see ❻).
❹

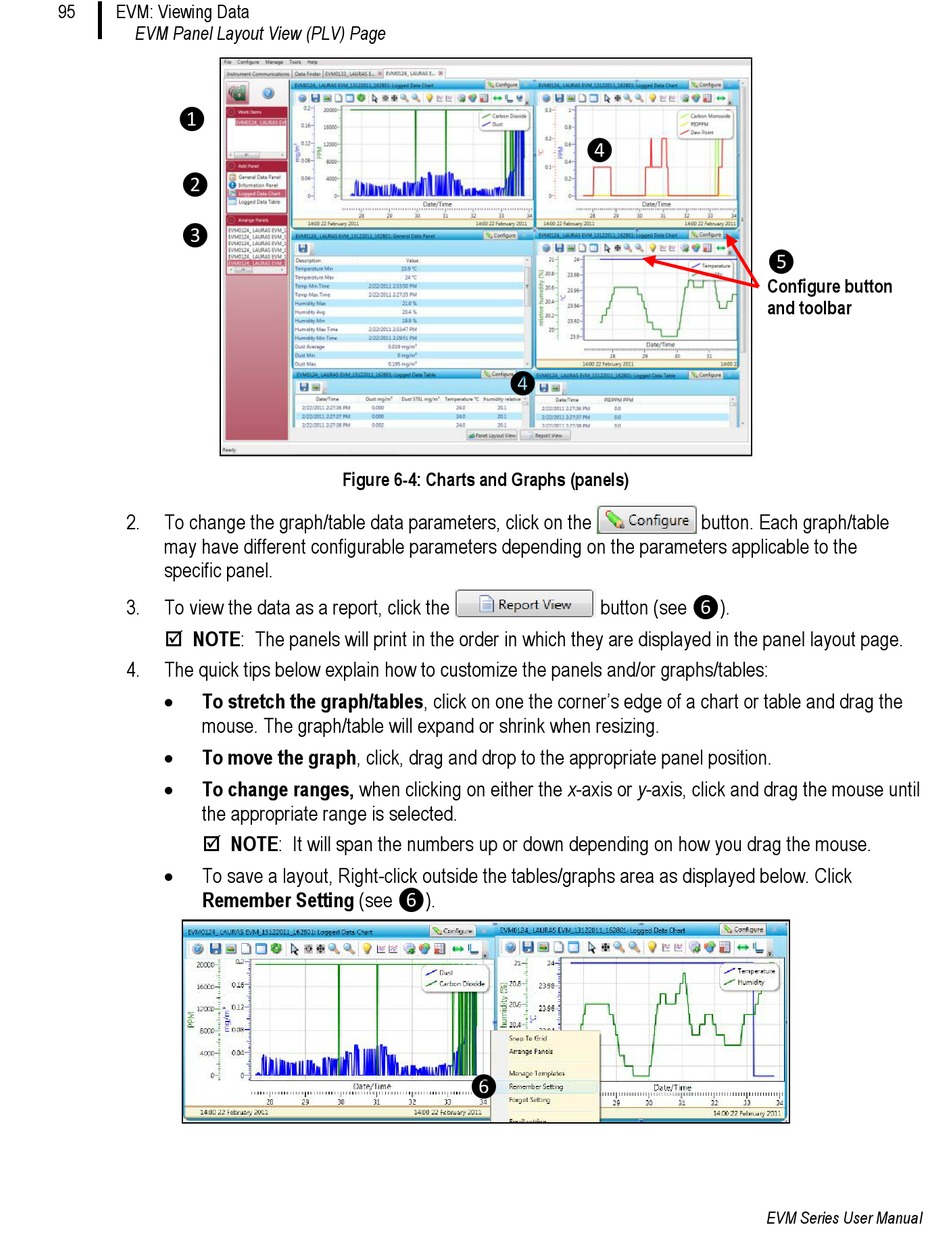

Figure 6-4: Charts and Graphs (panels)

❻
❹
button. Each graph/table
button (see ❻).
❺
Configure button
and toolbar
