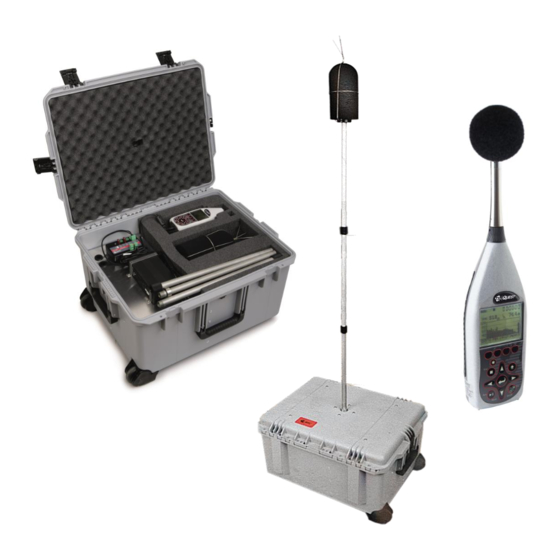

- Page 1 SOUNDPRO SOUND LEVEL METER ® OUTDOOR MEASURING SYSTEM (SP-OMS) INSTRUCTION MANUAL...
-
Page 3: Dangers, Warnings, Cautions & Battery
Intended Use: The SoundPro Outdoor measurement system provides protection to re-chargeable batteries for extended outdoor operation of the SoundPro Sound Level Meter. Consult your company’s safety professional for local standards, or call TSI at 1-800-680-1220 (USA) or (651) 490-2860. SoundPro ®... -
Page 4: Table Of Contents
Figure 4: Connecting two SoundPro outdoor Figure 2: Connecting the battery power ........ 3 battery assemblies ..........5 Figure 3: On/Off switch for the SoundPro Outdoor Kit ... 3 Figure 5: Sample SoundPro outdoor kit assembly parts ..7 TABLES Table 1: SoundPro Outdoor kit parts ........ -
Page 5: Introduction
(two weeks with optional second battery). The weatherproof case holds the SoundPro instrument and battery pack with room for accessories and storage of the system components while not in use. -
Page 6: Assemble The Outdoor Kit: Field Instructions
Gently spread the bird spike wires and insert them into the holes on the preamp adapter. NOTE: Be cautious when bending the wires to prevent them from deforming. Figure 1: Assembly for outdoor kit SoundPro ® Sound Level Meter Outdoor Measuring System... -
Page 7: Assemble The Outdoor Kit: Internal Connections
Connect the other end of the cable (see 9 in Figure 1/Table 1 ) to the meter inside the case. For brief runtimes (4 hours or less), you may use the internal battery power of the SoundPro Sound Level Meter. For extended runtime, connect the internal 12-Volt power cable (see Figure 2) to the meter at its bottom inlet. -
Page 8: Make The Measurements
Sound Level Meter is running on external power, and close up the case. Turn-off and disassemble When you are finished, turn Off the SoundPro Sound Level Meter and then turn Off the power switch at the power distribution panel. Remove and disassemble the mast, microphone, and windscreen and place the parts back into the case. -
Page 9: Maintenance And Care Instructions
Recharging the internal batteries Battery cables routed Installed SoundPro outdoor battery assembly (see 13 in Table 1 for part details) Figure 4: Connecting two SoundPro outdoor battery assemblies Route the battery cables. • While positioning the battery cover over the batteries in the correct orientation, take one of the battery wires and its green connector, and feed it through one of the rubber grommets. -
Page 10: Reactivating The Desiccant
Check the batteries more frequently if storage temperature regularly exceeds 25°C (77°F). The outdoor measurement system should be stored in a cool dry location with the lid closed whenever possible. High battery storage temperatures will lead to excessive self-discharge and premature battery failure. SoundPro ® Sound Level Meter Outdoor Measuring System... -
Page 11: Soundpro Outdoor Kit Specifications
(W x D x maximum H) Overall Weight 30 kg; 67 lbs (with one battery) 45 kg; 100 lbs (with two batteries) SoundPro Sound Level Meter is sold separately. Figure 5: Sample SoundPro outdoor kit assembly parts SoundPro ® Sound Level Meter Outdoor Measuring System... -
Page 12: Customer Service
Customer Service This section gives directions for contacting TSI Incorporated for technical information and directions for returning the SoundPro Outdoor Measuring System. Technical Support Contacts If you have any difficulty setting or operating the instrument, or if you have technical or application questions about this system, contact TSI’s Technical Support. -
Page 13: Warranty
If any malfunction is discovered, please contact your nearest sales office or representative, or call TSI’s Customer Service department at 1-800-874-2811 (USA) or +001 (651) 490-2811 (International). SoundPro ® Sound Level Meter Outdoor Measuring System... - Page 14 Warranty (This page intentionally left blank) SoundPro ® Sound Level Meter Outdoor Measuring System...
- Page 15 TSI Incorporated – Visit our website www.tsi.com for more information. Tel: +1 800 874 2811 India Tel: +91 80 67877200 Tel: +44 149 4 459200 China Tel: +86 10 8219 7688 France Tel: +33 1 41 19 21 99 Singapore Tel: +65 6595 6388 Germany Tel: +49 241 523030...
