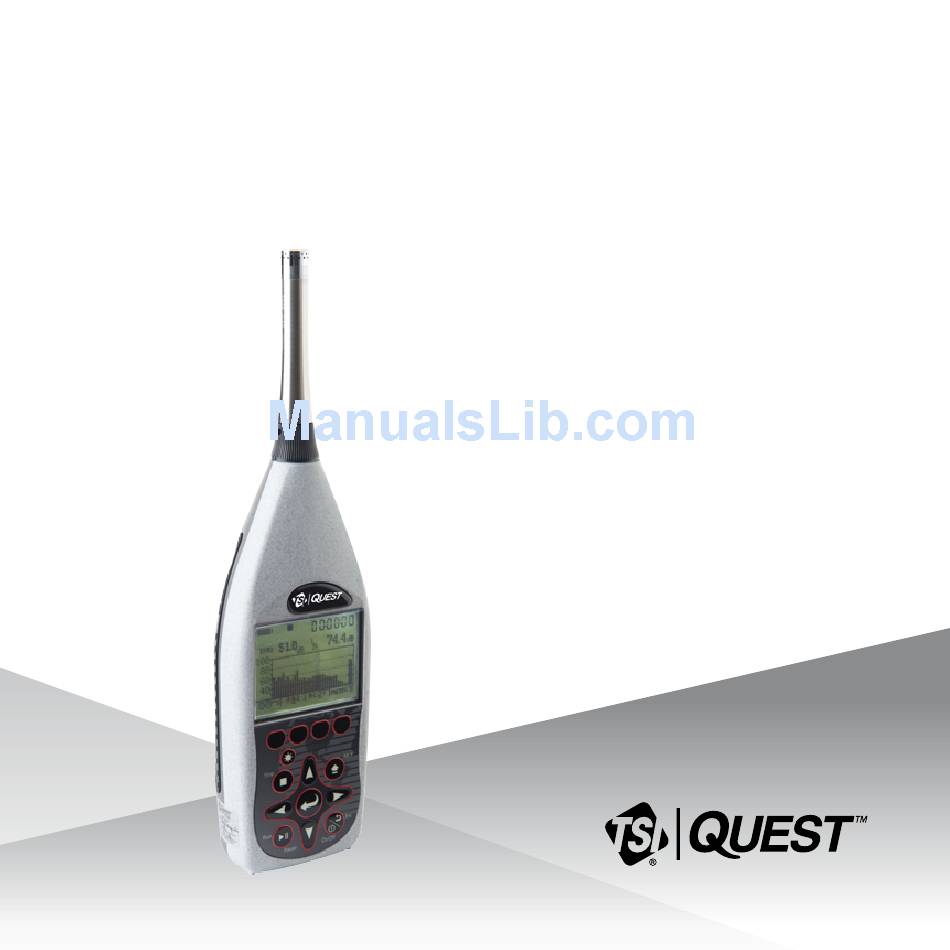

QUICK START

GUIDE
SoundPro® SE/DL Series Sound Level Meters

Advertisement

loading
Need help?

Need help?

Do you have a question about the SoundPro SE series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TSI Quest SoundPro SE series

Summary of Contents for TSI Quest SoundPro SE series

  • Page 1: Quick Start

    QUICK START GUIDE SoundPro® SE/DL Series Sound Level Meters...
  • Page 2 SoundPro® Display and User Keypad Softkey Menu Indicators Measurement type + Battery power: + Repeatedly press 1 softkey + Stop: to toggle through to select + Run time: 00:00:00 1/1, 1/3, SLM (if purchased) Backlight Key Softkeys Stop Key AltF Key Left Arrow Key Enter Key Up/Down Arrow Keys...
  • Page 3 Turning On/Off and Navigating 1. To turn on the SoundPro, press the key until the start screen appears. 2. To navigate, press the up/down arrows and left/right arrows for most of the navigational functions. + The key is used to move back one level (or escape from a menu/screen). Press repeatedly to return to the start screen.
  • Page 4 Calibrate the SoundPro (Pre/Post Cals) 1. Ensure the SoundPro is turned On and is either stopped or paused. Microphone Place calibrator 2. Attach the calibrator and cal adapter to the over microphone SoundPro. Set the calibrator to 1 KHz and 114 dB (if it is a selectable).
  • Page 5 Run/Pause/Stop Measurements Position the SoundPro in the field. Press the run key to start measuring. To pause a study (for example: lunch breaks), press the run/pause key. To start measuring again, press the run/pause key. Continue this process until your measurements are complete by press the Stop key. This will end the session. 1.
  • Page 6 Measurements Displayed Broadband Amplitude Filtered Bar Chart Screen Amplitude For the filtered bar chart screen, the dominant in the Band characteristic of this screen is the multi-element bar chart. The chart displays measurements in each filter band and broadband values for both meters. For Selected Band octave band analysis, the screen contains 13 bars (11...

  • Page 7: Instrument Communication

    Detection Management Software DMS and Working with SoundPro Data Viewing data and Data Finder Page 1. Communicating/Connecting the SoundPro to the PC A. Turn On the Sound Pro. B. Plug in USB cable from SoundPro to pc. 2. DMS Welcome Page and Instrument Communication A.
  • Page 8 Quest is a trademark, and SoundPro, TSI and the TSI logo are registered trademarks of TSI Incorporated. TSI Incorporated - Visit our website www.tsi.com for more information. North America and Asia Pacific Europe, Middle East, and Africa Telephone: +1 800-680-1220 (USA) Telephone: +49 241-52303-0 +1 651-490-2860 (Outside USA) Fax:...
