Page 1 ENVIRONMENTAL MONITOR EVM SERIES USER MANUAL...
Page 3 Dangers, Warnings, & Cautions ENVIRONMENTAL MONITOR EVM SERIES Dangers, Warnings, & Cautions DANGER! Failure to observe the following procedures may result in serious personal injury:  Not for use in Explosive or Hazardous locations. This product is NOT Intrinsically Safe. ...
Page 4 Dangers, Warnings, & Cautions Caution! PM/dust  Clean the optical engine mirror with a soft cloth, if it is dirty. Scratches will affect performance.  Avoid measuring wet particles, fogs, and liquid mists that will tend to cling to the impactor, optical engine, tubing, and pump surfaces.
Page 5 Dangers, Warnings, & Cautions FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial or residential environment.
Page 7: Table Of Contents
Table of Contents Table of Contents Table of Contents Setting Logging and Viewing Run Time ......23 Dangers, Warnings, & Cautions ........iii PID Sensor Setup ............25 Table of Contents.............. vii Changing Units (Temperature, Particulates, PID, Introduction ................. 1 and Air Velocity) ............
Page 8 viii Table of Contents Calibrating Photo-Ionization Detector (PID) Sensor ..63 EVM Reports and Printing ..........96 PID parts per million (ppm) zero calibration ..... 63 Customizing Reports ............. 97 PID parts per billion (ppb) zero calibration ....63 EVM Setup ..............98 PID Span Calibration ..........
Page 9 Table of Contents Estimated Logged Run Times ........124 Particulate Measurements ........... 151 Gravimetric Sample (optional for particulate Standard EVM-7 (Memory and logged time) ....124 calibration) ..............153 Standard EVM-4 (Memory and logged time) ....125 Toxic Sensor Measurements ........154 Standard EVM-3 (Memory and logged time) ....
Page 10 Table of Contents Figure 4-21: Span Calibration ..........59 Figure 5-17: Summary screen of a past session ....86 Figure 4-22: Saved Calibration screen ....... 60 Figure 5-18: Delete session message ........ 87 Figure 4-23: Selecting a calibration sensor ......61 Figure 5-19: Delete all sessions message ......
Page 11: Table Of Contents
CHAPTER Introduction Table of Contents Introduction The EPA (Environmental Protection Agency) conducted a study over the last 25 years (1975-2000) and determined that 107 measurable air pollutants, specifically carcinogens, exist in working environments. Combined with the advent of closed windows, modern office buildings and various cleaning solvents, the outcome has been energy efficient buildings and homes which contain levels of carcinogens.
Page 12: Particulate Sampling (Aerosols/Dust Vapors)
Introduction Particulate Sampling (Aerosols/Dust Vapors) Particulate Sampling (Aerosols/Dust Vapors) The EVM is a portable-area monitoring instrument with a laser-photometer that measures and stores concentration levels of airborne-dust over time. It is designed to measure and help you identify the air pollutants, existing as matter (gases and aerosols) in the environment.
Page 13: Particulate Sizes
Introduction Particulate Sampling (Aerosols/Dust Vapors) Particulate Sizes Aerosols and gases are experienced in industrial processes, workplaces, and in everyday life. Keeping in mind that inhalable dust is 100 microns and smaller, this dust is usually filtered through the hairs and membranes in your sinuses.
Page 14: Particulates And Cut-Point
Gas Sensors Sampling Particulates and Cut-Point Particulates and Cut-Point In consideration of how the size of particulates affect the human body, it is important to select a particulate size cut-point. Essentially, the particle size selector on the EVM is a top-mounted rotary impactor.
Page 15: Gas Sensors And Path
Gas Sensors Sampling Gas Sensors and Path Gas Sensors and Path TSI’s unique smart sensor technology includes automatic sensor recognition, calibration levels, temperature compensation information and other valuable data that travels with the sensor from one unit to another. The following diagram illustrates the gas sensor path for Toxic, CO , and PID sensors.
Page 16: Volatile Organic Compounds (Vocs) Sampling
Introduction Volatile Organic Compounds (VOCs) Sampling Volatile Organic Compounds (VOCs) Sampling According to the American Lung Association, Volatile Organic Compounds (also referred to as VOCs) are one of the top Indoor Air Quality (IAQ) pollutants. These include:  Biological agents (mold, dust, mites, etc.) ...
Page 17: Resources
What the Standards Say Resources Resources To access some of these copyrighted standards, refer to the following: OSHA http://www.osha.gov NFPA-654 http:///www.nfpa.org MSHA http://www.msha.gov NIOSH http://www.cdc.gov/niosh ACGIH http://www.cdc.gov/niosh ASHRAE http://www.ashrae.org NIST http://www.nist.gov http://www.iec.ch http://www.csa.ca EVM Series User Manual...
Page 18: Evm Series
EVM Series Applications EVM Series Applications A real-time, direct reading dust monitor is used in many different applications such as walk-through surveys in manufacturing, wood making plants and/or bakery shops, background sampling, site dust measurements, assessment of the effectiveness of dust control systems, and measurement of indoor air quality (IAQ).
Page 19: Models Explained
The models, sensors, and accessories are explained in detail below. Refer to the part’s listing for further details (such as calibration accessories). Models and Sensors Optional Sensor Accessories EVM-7 includes:  Air Probe-10  Particulates  Carbon monoxide (CO) or (1) selectable toxic gas ...
Page 20 EVM Series Models Explained (This page intentionally left blank) EVM Series User Manual...
Page 21: Getting Started
CHAPTER Getting Started Checking the Equipment Getting Started This chapter is designed to guide you through basic information you will need to begin measuring with your environment monitor. Checking the Equipment If your instrument was sent to you in a storage case, remove all the packaging and acquaint yourself with the following equipment.
Page 22: Display And Keypad
Display and Keypad Diagram Display and Keypad The keypad is used to run and stop your studies, view your measurement values, select appropriate set- up parameters, and power on and off. Diagram The following diagram explains the features on the display and keypad. 6.
Page 23: Turning On
Turning on Start Screen Explanation Keypad Explanation 9. Altf key The Altf key (or Alternate Functions) is used to switch between soft key menu and selected menu. This is an option in various screens (ie, calibration screens). 10. Enter key Used to open a selected menu.
Page 24: Navigating
Turning on Navigating Navigating Once the EVM is powered–on, press the Up/Down Arrow ▲/▼ key to select a menu or to edit a field. Press the Left/Right Arrow ◄/► key to scroll through measurement screen, start screen, or to move right or left in a menu (i.e., setup menu). Press Enter key to open a selected screen (i.e.
Page 25: Turning Off
Getting Started Turning Off Turning Off When turning off the EVM, ensure you are in stop mode. A stop indicator will appear on the top left next to the battery charge status icon. If it is in run mode, stop the session and then proceed below. From any measurement view or the start screen, press the On/Off Esc “3, 2, and 1”...
Page 26: Figure 2-5: Selecting Unit Info. Sensors
(Repeat this step to view the other sensor.) Impactor and profile displayed. Pop-up box Look-up key Appears when you press the EVM-7 Look-up key. Sensors 1 - 3 Sensors Sensors 4 - 7 Select and then press Enter to view the sensor’s parameter...
Page 27: Tsi Detection Management Software Dms
TSI Detection Management Software DMS Powering and Outputs on the EVM TSI Detection Management Software DMS DMS is a software application designed by TSI that runs under the Windows operating system. You can use DMS for a variety of functions such as: customizing your set-up parameters, displaying data, manipulating data, and creating reports.
Page 28: Charging
Communicating Powering and Outputs on the EVM Charging The rechargeable battery pack is charged by plugging in the universal power adapter cord into the charging-port and into an electrical outlet. When using the EVM and the power adapter, it will charge as you use the instrument.
Page 29: Setting Up The Environmental Monitor
Setting up Input/Output (I/O) options including digital-out, air velocity, or analog-out  If you ordered the EVM-7 model, a Particulate setup menu and a PID setup menu will also appear. Time and Date Setting The EVM uses a 24-hour clock (military time) and specifies date by day, month, and year. The date and time setting are important elements used as you are analyzing your log data results.
Page 30: Checking Battery Power
Setting up Parameters via the Keypad Checking Battery Power 6. Continue to repeat steps 3-5 until all changes have been made. Time Date Day – auto fills based on what you entered in the Date field Figure 3-1: Time-Date screen parameters 7.
Page 31: Figure 3-2: Start Screen
Setting up Parameters via the Keypad Checking Battery Power  Check battery power 1. From the start screen, highlight Setup (by pressing ▲/▼ Arrows) and press Enter  NOTE: If viewing a measurement screen, press the right/left arrow until the start screen appears.
Page 32: Display: Language, Contrast, And Key Click
Setting up Parameters via the Keypad Display: Language, Contrast, and Key Click Display: Language, Contrast, and Key Click In the display screen, there are three selectable settings including language, contrast, and key click. Display settings Explanation Language With the language setting, there are six options including: English, Spanish, German, French, Italian, and Portuguese.
Page 33: Setting Logging And Viewing Run Time
Setting up Parameters via the Keypad Setting Logging and Viewing Run Time To return to the Start screen, repeatedly press On/Off/Esc Setting Logging and Viewing Run Time With the logging screen, you select the logging interval (i.e., 1 min. data logging), the averaging parameter (i.e., a type of data filter) and which parameters will be logged and stored into memory.
Page 34: Figure 3-5: Logging Screen
Setting up the Environmental Monitor Setting up Parameters via the Keypad  Set logging intervals, logging attributes, and view run time From the start menu, press ▲/▼ Arrows to select Setup and press Enter . Select Logging and press Enter To change Logging Interval or Averaging follow below: ...
Page 35: Pid Sensor Setup
Setting up Parameters via the Keypad PID Sensor Setup Optional: To view the Estimated Run Time, select this field (by pressing ▲/▼ Arrows) and press Enter . The estimated run time screen will appear.  NOTE: To extend the logging time, turn a logged measurement(s) to “Off” and/or change the log interval.
Page 36: Figure 3-7: Pid Correction Factor
Setting up Parameters via the Keypad PID Sensor Setup  Setting PID correction factor and/or ppb zero cal From the start menu, press ▲/▼ Arrows to select Setup and press Enter Select PID by pressing ▲/▼ Arrows and press Enter In the PID screen, select either ppb zero cal or the PID factor by pressing ▲/▼...
Page 37: Changing Units (Temperature, Particulates, Pid, And Air Velocity)
Setting up Parameters via the Keypad Changing Units (Temperature, Particulates, PID, and Air Velocity) Changing Units (Temperature, Particulates, PID, and Air Velocity) In the units screen, the temperature, particulates, and the air velocity values can be displayed in different measurement units. ...
Page 38: Setting Profiles (Particulate Correction Factors)
Setting up Parameters via the Keypad Setting Profiles (Particulate Correction Factors) Setting Profiles (Particulate Correction Factors) The EVM supports eight different particulate matter (PM) profiles with customized name settings and user correction factor settings. When the profile field is selected from the particulate menu, you are able to edit this field by pressing the Edit soft key.
Page 39: Figure 3-10: Edit Profiles For Dust Calibration
Setting up Parameters via the Keypad How Particulate Factors are Adjusted and Calculated Select the Profile field by pressing ▲/▼ Arrows and press the Edit soft key. Profile Select this field and then press Edit soft key to modify the Profile screen. Edit soft key Visible when profile menu item is highlighted Figure 3-10: Edit profiles for dust calibration...
Page 40: Particulate Pump: Enable Or Disable
Setting up Parameters via the Keypad Particulate Pump: Enable or Disable Particulate Pump: Enable or Disable You may want to disable the particulate pump for situations in which the environment is too dirty for the particulate optical engine or if you want to keep the engine and pump clean and dry from oily mists, liquids, or fogs elements.
Page 41: Auxiliary Input/Output
Setting up Parameters via the Keypad Auxiliary Input/Output To return to the main menu, press On/Off/Esc twice. Auxiliary Input/Output Digital Output With the digital output function, the user can connect an external device to the monitor. This can be used to signal a specific level to turn on a notification device, an LED, or a fan motor at a specific threshold (or set point).
Page 42: Figure 3-13: Configuring Digital Output
Setting up Parameters via the Keypad Auxiliary Input/Output In the Digital-Out screen do one of the following:  Dig-Out field: select via ▲/▼ Arrows and press Enter . Press ▲/▼ Arrows to Enable/Disable.  Sensor field: select via ▲/▼ Arrows and press Enter .
Page 43: Air Velocity
Setting up Parameters via the Keypad Air Velocity Air Velocity Setting the air velocity parameter is fairly simplistic; however, ensure no other outputs are enabled prior to setup. (The EVM will display a pop-up message if more than one output is enabled. You will have to disable all other auxiliary outputs before proceeding with air velocity setting.) When air velocity is “enabled”, you can measure/log with the TSI Air Probe10 (optional accessory).
Page 44: Restoring Default Factory Settings
Setting up Parameters via the Keypad Restoring Default Factory Settings  Setting Analog-Out 1. From the setup screen, select Aux I/O and press Enter 2. Press ▲/▼ Arrows to select Analog-Out and press Enter 3. To enable or disable, press Enter when Analog-out is selected and press ▲/▼...
Page 45: Figure 3-18: Restoring Default Calibrations
Setting up Parameters via the Keypad Restoring Default Factory Settings 3. To restore the Factory Calibration, ensure this is selected and press Enter  To restore defaults for a selected sensor(s), select a sensor using ▲/▼ Arrows and press Enter .
Page 46: Backlight Setting
Setting up Parameters via the Keypad Backlight Setting Backlight Setting A key on the keypad is dedicated to turning on or off the backlight feature. When turned on, the backlight will illuminate the screen from a dark gray to a light gray color. This feature has two levels of brightness.
Page 47: Figure 3-20: Lock Soft Key
Setting up Parameters via the Keypad Lock/Secure Run and/or Setup  Setting lock setup or run From the Start screen, select and open the Setup screen. Press the Lock soft key. Lock Opens to the Lock screen. Figure 3-20: Lock Soft key In the Lock/Security Modes screen, Run and Setup are “disabled”...
Page 48: Unlock Run And/Or Setup
Setting up Parameters via the Keypad Unlock run and/or setup Unlock run and/or setup When in secure run mode or secure setup mode, a quick press of the lock/unlock soft key and entering in the password will unlock the instrument. (See steps 5 and 6 above to for more information on entering in the password.) ...
Page 49: Auto-Run With Date Mode
Setting up Parameters via the Keypad Auto-run 5. In the timed-run screen, press Enter to select the duration field which is displayed in hours, minutes, and seconds. To change the duration, press ▲/▼ Arrows. To move between the fields, press ◄/► Arrows. (Repeat as necessary). Duration ...
Page 50: Auto-Run With Day Of Week (Dow) Mode
Setting up Parameters via the Keypad Auto-run If off appears under Auto-Run, press Enter (or skip and see step 6). To change the fields press ▲/▼ Arrows. To move to the next field(s) press ◄/► Arrows. Repeat as necessary. Corresponds to soft key Auto-Run with Date Select day, month, year Start time...
Page 51: Figure 3-26: Setting Auto-Run Dow Mode
Setting up Parameters via the Keypad Auto-run When programmed, press Enter . Press key repeatedly to return to the main screen. Days Optional Programming is set from Sunday through Saturday. Example displays Monday through Friday S (hours:mins:secs) Start time is programmed at 8 am D (hours:mins:secs) Duration is programmed for 4 hours Figure 3-26: Setting auto-run DOW mode...
Page 52 Setting up Parameters via the Keypad Auto-run (This page intentionally left blank) EVM Series User Manual...
Page 53: Calibrate Sensors
CHAPTER Calibrate Sensors Placement and Calibration of Sensors Calibrate Sensors Placement and Calibration of Sensors Before you begin your measurement sampling, it is recommended to calibrate the sensors you will be using. This chapter focuses on inserting and removing sensors, calibrating each sensor, viewing past calibrations, and how to verify your calibration set points.
Page 54: Calibrating Particulates
Placement and Calibration of Sensors Calibrating Particulates To insert a sensor, gently push the sensor’s pins into the socket pin of the circuit board so it aligns accordingly. It will fit securely. To remove a sensor, pull the senor up horizontally and remove it from the sensor chamber. When completed, replace the black manifold over the sensors and then place the cover over the sensor housing.
Page 55: Impactor And Use
Placement and Calibration of Sensors Impactor and use The EVM supports eight different user profiles. Each profile stores a customizable profile name field, and a correction factor. (Setting-up profiles/correction factors is discussed in the Set-up chapter, “Setting profiles for particulates”). The following sections will walk you through how the impactor operates, how to adjust the impactor, how to run a zero calibration, and lastly running a gravimetric calibration.
Page 56: Adjusting The Impactor/Turret Setting
Placement and Calibration of Sensors Adjusting the Impactor/Turret Setting Adjusting the Impactor/Turret Setting When measuring, the industrial processes (such as sanding, cutting, crushing, grinding, and transportation) cause air pollutants. The size of the particles will enter the human body in different areas, affecting the nasal, throat, and/or lung area.
Page 57: Particulates Calibration (Zero Cal)
Placement and Calibration of Sensors Particulates Calibration (Zero Cal) Twist the turret (red casing around the impactor) to the left or right until you see the appropriate setting on the display. It will align to the impactor text and arrow on top of the housing. ...
Page 58: Figure 4-6: Particulate Zero Cal With Hepa Filter
Placement and Calibration of Sensors Particulates Calibration (Zero Cal) Zero/HEPA filter Used for particulate zero cal. Zero filter with coupler and vent opening  Insert the Zero Filter via the coupler into the “2.5” vent opening. Turret  Turn the turret so “PM” appears on the display of the EVM.
Page 59: Figure 4-8: Particulate Cal Screen
Placement and Calibration of Sensors Particulates Calibration (Zero Cal) Press the Cal soft key. (The pump will turn on.)  NOTE: The HISTR and VERIFY soft keys will not be present if a user calibration and a calibration verify have not been performed. Calibration soft key History soft key Verify soft key...
Page 60: Figure 4-10: Particulate Calibration And Waiting Screen
Placement and Calibration of Sensors Particulates Calibration (Zero Cal) Allow the level to stabilize (approximately 1–3 minutes). It will state Waiting (A) and Set soft key will appear when it has stabilized (B). Zero will appear when it has stabilized Current Level reading Set soft key will...
Page 61: Particulate Advanced Calibration (Gravimetric)
Placement and Calibration of Sensors Particulate Advanced Calibration (Gravimetric) 10. Press the Save soft key to save your calibration (or press Cancel and Retry to repeat this process.) A screen pop-up will state “Zero cal set point” when completed (or “User canceled calibration”). A pass (cancel) screen will be displayed.
Page 62: Gravimetric Calibration Overview
Placement and Calibration of Sensors Performing a Gravimetric Calibration Gravimetric Calibration Overview Reset the gravimetric and volume accumulators. Insert a new (sealed) gravimetric cassette. Measure in the specific location for approximately four to eight hours. Proceeding the measurement, the gravimetric accumulator on the EVM will display the amount of dust that has accumulated based on the active profile.
Page 63: Pump Flow Rate Calibration
Placement and Calibration of Sensors Pump Flow Rate Calibration  To reset, press the down arrow repeatedly to select the gravimetric fields and press the Reset soft key. (If it is not displayed, press the Altf key.) Turn the pump on by pressing the Pump key.
Page 64: Toxic Gas Sensors
Placement and Calibration of Sensors Toxic Gas Sensors Press the CAL soft key and then press the Start soft key. 1.67 L/min (lpm) is the recommended flow rate to mirror with Percentage of air flowing through the pump Save Figure 4-15: Flow Rate Calibration Manually adjust the flow rate (as needed) by repeatedly pressing the Up/Down key to select the desired level.
Page 65: Cross Sensitivity
Placement and Calibration of Sensors Cross Sensitivity Cross Sensitivity The following table illustrates the cross-sensitivity to a range of commonly encountered gases, expressed as a reading of the sensor when exposed to 100 ppm of the interfering gas at 20ºC. Interfering Gas <10 <9...
Page 66: Applying A Gas Sensor
Placement and Calibration of Sensors Applying a Gas Sensor Applying a Gas Sensor Gather your calibration gas source, the regulator (if not already connected), inert tubing, the cal adapter and the EVM with the appropriate sensors installed. After your calibration setup is completed, follow the proceeding applicable calibration sensor sections.
Page 67: Toxic Gas Zero Calibration
Placement and Calibration of Sensors Calibrating Toxic Gas Sensors Caution Due to the presence of toxic gas during the calibration process, appropriate safety procedures should be followed. Additionally, you will want to ensure that your calibration is performed in an area known not to contain hazardous or interfering gases if ambient air will be used as the zero gas for operation.
Page 68: Figure 4-19: Calibration Zero Screen
Placement and Calibration of Sensors Calibrating Toxic Gas Sensors Turn regulator On. Wait for the current level to stabilize (allow at least 90 seconds to stabilize.) (The screen will show +Ready.) When the level has stabilized, press Zero soft key. * Flashing asterisk indicates Level cal.
Page 69: Toxic Gas Span Calibration
Placement and Calibration of Sensors Calibrating Toxic Gas Sensors Toxic Gas Span Calibration When conducting a span calibration, the calibrated gas used should match the sensor you will be calibrating.  NOTE: For Ozone span calibration, an ozone generator should be used.) If you are continuing from the Toxic Zero cal section, the screen you will be viewing is the Calibrate/Pause screen.
Page 70: Calibrating Co And O
Placement and Calibration of Sensors Calibrating CO2 AND O2 Once your calibration is set, intended and actual cal values will appear on the display screen. Press Save to store these as your calibration set points.  NOTE: To redo the span calibration, press the Span soft key and repeat steps 2–5. Previous calibration result * New value SAVE soft key...
Page 71: Figure 4-23: Selecting A Calibration Sensor
Placement and Calibration of Sensors Calibrating CO2 AND O2 5. In the Calibration screen, press ▲/▼ Arrows to select CO or O Selecting a sensor Press Up or Down Arrow CAL soft key Figure 4-23: Selecting a calibration sensor 6. Press the CAL soft key to open the CO “Calibration/Calibrate”...
Page 72: Figure 4-26: Saved Calibration
Placement and Calibration of Sensors Calibrating CO2 AND O2 9. Press the Set soft key. Turn off regulator and unhook the N bottle (for zero cal) or CO bottle (for span cal). (To perform a Zero or Span cal, repeat steps 1–8.) ...
Page 73: Calibrating Photo-Ionization Detector (Pid) Sensor
Placement and Calibration of Sensors Calibrating Photo-Ionization Detector (PID) Sensor Calibrating Photo-Ionization Detector (PID) Sensor PID parts per million (ppm) zero calibration It is preferred to flush the PID ppm sensor with Zero Grade Air for a zero calibration. Alternatively, you may flush the PID ppm sensor with Nitrogen.
Page 74: Pid Span Calibration
Placement and Calibration of Sensors Calibrating Photo-Ionization Detector (PID) Sensor Press the Cal soft key and the Calibrate PID/Ready screen will appear. Press Zero soft key.  NOTE: Allow at least 60 seconds to stabilize. Units: ppm/ppb The EVM will automatically Zero display the attached sensor With PID ppb sensor, if...
Page 75: Figure 4-29: Pid Calibration Span Soft Key
Placement and Calibration of Sensors Calibrating Photo-Ionization Detector (PID) Sensor  NOTE: A correction factor is a number that relates to the PID sensor of a specific VOC and correlates to the PID response to the calibration gas (sometimes referred to as a response factor).
Page 76: Calibrating Relative Humidity And Temperature
Placement and Calibration of Sensors Calibrating Relative Humidity and Temperature Press Save soft key to store this into the memory. Calibration results after Previous calibration completed span cal. SAVE soft key Figure 4-30: Saved Calibration screen Turn the regulator off and disconnect the tubing from the instrument. Repeatedly press On/Off/Esc until you return to the start screen.
Page 77: Calibration History
Placement and Calibration of Sensors Calibration History Press the Save soft key to save the calibration. Temperature cal Intended & actual readings  Figure 4-31: Temperature calibration To calibrate the other sensor (RH or Temp), repeat these steps.  Or press the Exit soft key and then press On/Off/Esc To open the calibration screen: from the start screen, press the Down ▼...
Page 78: Verify Calibration And Drifting Analysis
Placement and Calibration of Sensors Verify Calibration and Drifting Analysis To exit and return to the start screen press On/Off/Esc twice. Verify Calibration and Drifting Analysis The verify screen is typically used to analyze drifting. This process verifies if the zero calibration remained stable or unchanged during the run-time/logging time.
Page 79 Placement and Calibration of Sensors Verify Calibration and Drifting Analysis The Intended and Actual values will appear. Press the Save soft key to save these new values.  Or press the Cancel soft key and press Retry to repeat this process. To return to the start screen, press On/Off/Esc twice.
Page 80 Placement and Calibration of Sensors Verify Calibration and Drifting Analysis (This page intentionally left blank) EVM Series User Manual...
Page 81: Measuring And Viewing
CHAPTER Measuring and Viewing Overview of Running a Session Measuring and Viewing Once you have setup your logging parameters and calibrated the instrument, you are ready to begin measuring. The focus of this chapter is to give you a brief overview of what is measured, how to navigate, what measurements screens will appear, and how to run and stop your measurements.
Page 82: Understanding What Data Is Stored
Measuring Understanding What Data is Stored Understanding What Data is Stored When you are performing air quality monitoring, there are two types of data stored in the instrument which includes summary data and time history data (or logged data). Summary Data Summary data represents values that occurred over the entire run of the study.
Page 83: Running And Stopping
Measuring Running and Stopping Particulates Will display max. and low peaks in logged data chart. data Figure 5-3: Sample time history data (or logged data) chart Running and Stopping When running a session, the pump will automatically turn on during your logging/run if particulate is enabled.
Page 84: Measurement Screens And Navigation
Measurement Screens and Navigation Unit defined Measurement Screens and Navigation To navigate through the measurement screens repeatedly press ◄/► Arrows key from the Start screen. (The start screen is the second screen you encounter after the initial splash screen. Looking at the measurement screens clockwise (or pressing ► Arrow key), you will see the particulate measurement screen.
Page 85: About The Measurement Soft Keys
Measurement Screens and Navigation About the Measurement Soft Keys About the Measurement Soft Keys Each measurement screen has soft keys (extended menus) which are used to view different measurements.  NOTE: Press the Enter key to toggle through the various measurements.) Soft key menus Used to select additional menus or different...
Page 86: Particulate Measurement Screen
Particulate Measurement Screen Impactors and Particulate Measuring Particulate Measurement Screen The particulate measurement screen displays the user-adjustable impactor setting (i.e., PM 2.5), the applied profile (or correction factor) and various measurements (level, max, min, etc.) Impactor and profile displayed Measurement displayed Particulate Level is is changeable via the 0.445 mg/m...
Page 87: Changing Particulate Measurements
Particulate Measurement Screen Changing Particulate Measurements Changing Particulate Measurements To change the displayed measurements, there are three options in the particulate screen. You can press the Enter key to page through each measurement, select a specific measurement from the lookup/glasses soft key, and/or press the Detail soft key. (The measurements are defined in Table 5-3). ...
Page 88: Relative Humidity And Temperature Measurements
Relative Humidity and Temperature Measurements Relative Humidity and Temperature Screen 5. Or select the Detail soft key and a summary of all the measurements will appear. (Below is an explanation of measurements.) Measurement values Explanation LEVEL Level - Notation used to represent current live reading of the sensor. (This is updated once a second.) Minimum - Minimum level value which occurred during a log session.
Page 89: Gas Measurements
Gas Measurements Gas Screen  To change the RH and Temperature measurement view Press the Select soft key, Trend soft key, or the Detail soft key. (See Table 5-1 for details).  NOTE: The ▲/▼ Arrows can be used instead of the Select soft key. Gas Measurements The gas measurement screen displays the measurements for CO , toxic gas(es), and PID sensor.
Page 90: Composite Measurement
Composite Measurement Composite Screens Composite Measurement When you first access the composite screen, all of the sensors appear on the screen. There are two main views which is dependent on if you pressed the zoomed-in or zoomed-out soft key. (The “zoomed- out”...
Page 91: Air Velocity Meaursurement Screen
Air Velocity Meaursurement Screen Composite Screens Air Velocity Meaursurement Screen There are a couple quick steps to ensure air velocity is setup and that the Air Probe is attached before measuring. The air velocity setting is enabled in Setup /AUX/Air Velocity screen (see “Air Velocity” Setup in Chapter 3 for more details).
Page 92: Summary Data
Summary Data Viewing Details in the Measurement Screen Summary Data In each of the measurement screens, a Detail soft key will appear. Once selected, you can view a quick summary of all measurement calculations in one screen. This is explained below. Viewing Details in the Measurement Screen ...
Page 93: Trend Data
Trend Data Viewing trend data in the measurement screen Trend Data The trend data screen is a graphical logged data chart and is viewable in all the measurement screens. Depending on the parameter you are viewing (i.e., PID sensor, Particulates, etc...), it will display the measurement level values in a graphical format.
Page 94: Past Session
Past Session Summary Data Screen (Optional) Press ◄/► Arrows to change the horizontal range. Scale Trend Screen (Dust Press up/down to example) change range Plots data logged points over 90 second intervals Line (or Bar) soft keys View trend data as a bar chart or as a line chart by pressing this soft key.
Page 95: Figure 5-16: Past Session With Files Selected
Past Session Summary Data Screen To select a specific file, first select the File field and then press the Files soft key and the Load File screen will appear. Optional: press the Look-up soft key to view the file by name and file size, name and date, or ...
Page 96: File System Menu
File System Menu Deleting Sessions Individually Once a file is selected and loaded, press the Detail soft key to view the summary data.  NOTE: The particulates, toxic gas, CO gas, and PID sensors will detail the following measurement parameters: Min, Max, Avg, Max STEL, TWA. For RH, Temp, and Air Velocity, the measurement parameters include: Max, Min, and Avg.
Page 97: Delete All Sessions
File System Menu Delete All Sessions Press the Delete soft key. A Delete pop-up screen will appear. To confirm the delete, press the Left arrow and then press the Enter . (This will delete the selected session.) Delete message Press left/right arrow to select “Yes”...
Page 98: Memory Remaining And File Properties
File System Menu Memory Remaining and File Properties Memory Remaining and File Properties The properties screen displays the number of stored files, the total amount of space used on the instrument, and the amount of free memory space.  Viewing remaining memory and file properties Open the File System screen from the Start menu and select the Properties menu by pressing the Down arrow key.
Page 99: Estimated Run Time
File System Menu Estimated Run Time Estimated Run Time The Estimated Run Time screen displays the amount of days, hours, and minutes’ remaining on the instrument. You can extend the run time if you log less parameters (such as, only logging MAX or increasing the log interval.) You may want to download and save your files in DMS and then clear the memory on the EVM.
Page 100 File System Menu Estimated Run Time (This page intentionally left blank) EVM Series User Manual...
Page 101: Detection Management Software
CHAPTER Detection Management Software Environmental Monitor Communication Detection Management Software Environmental Monitor Communication Once communicating with the Environmental Monitor (EVM) and Detection Management Software (DMS), you have the option to download data, configure instrument parameters, and configure quick setup features, such as the time and date settings. The following explains the EVM communication download and/or setup steps.
Page 102: Figure 6-1: Dms Start Page And Setup/Download Options
Environmental Monitor Communication Estimated Run Time From the start page of DMS, select either button (see ❶) or button (see ❷ and the Instrument Communications page will appear with setup and download panels. Select Air Quality and then select EVM under Instrument (see ❸ and ❹). You are now ready to setup or download your instrument (see ❺).
Page 103: Downloading Data With The Evm
Downloading Data with the EVM Selecting a session/study Downloading Data with the EVM The Instrument Download feature enables you to download your files from the EVM Series into the software for review and analysis of the data. Once the files are downloaded and if “Go to Session Finder after Download”...
Page 104: Evm Panel Layout View (Plv) Page
EVM: Viewing Data EVM Panel Layout View (PLV) Page Sample Data ❶ ❸ ❷ ❹ Figure 6-3: Data finder page EVM Panel Layout View (PLV) Page The measurements and parameters will be displayed in charts and graphs which may be customized for analysis and/or reporting purposes.
Page 105: Figure 6-4: Charts And Graphs (Panels)
EVM: Viewing Data EVM Panel Layout View (PLV) Page ❶ ❹ ❷ ❸ ❺ Configure button and toolbar ❹ Figure 6-4: Charts and Graphs (panels) To change the graph/table data parameters, click on the button. Each graph/table may have different configurable parameters depending on the parameters applicable to the specific panel.
Page 106: Evm Reports And Printing
TSI Supported Format Report example with logged data chart displayed with EVM data EVM-7 Sample #2: Logged Data Chart – Read Only Customize the report by inserting on-site testing images via the button. Figure 6-5: EVM data in a report format...
Page 107: Customizing Reports
EVM Reports and Printing Customizing Reports Customizing Reports To modify the reports with customized headers, footers, report titles, company logos (etc), the customize report feature may be used.  From the report creation options box (see ❶), click on button. ...
Page 108: Evm Setup
EVM Reports and Printing EVM Setup EVM Setup There are seven configurable EVM setup screens (see ❶ in Figure 6-7 below) in the setup page. With the EVM, you have the option to save the configurations either on the instrument and/or store the configurations in DMS.
Page 109: General Evm Setup
EVM Reports and Printing General EVM Setup General EVM Setup The EVM’s general settings are used to setup the instrument with basic parameters. Refer to the EVM parameters table below for details. Click on the General tab from the EVM’s Instrument Communications panel (see ❶). To change the general settings, follow one (or all) of the selection options below.
Page 110: Evm And Logging Settings
EVM Reports and Printing EVM and Logging Settings Name Field General Parameters *Note: Refer to Glossary for more detailed information Air Velocity Air Velocity measurements are conducted with an add-on air velocity probe and can Input Enable be enabled/disabled in DMS. (Note: The instrument will automatically detect if the air velocity probe is connected.) Air Velocity Air velocity units (if enabled and an air probe is connected) is measured in either...
Page 111: Evm Logging Parameters Table
EVM Reports and Printing EVM and Logging Settings EVM Logging Parameters Table Logging Name Field Parameters *Note: refer to Glossary for more detailed information Logging To enable logging, click in the specific checkbox to enable one or all of the following setup measurements: ...
Page 112: Timed-Run And Auto-Run Setting
EVM Reports and Printing EVM and Logging Settings  Date mode: With Date mode, With the date mode, it will wake up the instrument from a powered down or on condition, runs the study, saves it, then powers down again. Up to four date settings are programmable with a specified date, time (in hours, minutes, seconds), and duration via the soft keys.
Page 113: Day Of Week And Auto-Run Setting
EVM Reports and Printing EVM and Logging Settings To set the auto-run, click on or save and send to the EVM (for more details see “Saving and sending configurations”. ❶ ❷ ❸ Figure 6-11: EVM Auto-Run with Date setting Day of Week and Auto-Run Setting To enable Date mode, follow the steps below.
Page 114: Evm And Security Settings
EVM Reports and Printing EVM and Security Settings EVM and Security Settings The security or lock feature is used to prevent a user from interrupting a run and/or prevents someone from changing a setup or saved setups on the instrument. ...
Page 115: Figure 6-14: Evm Triggering Setup
EVM Reports and Printing EVM and Triggering Settings To set the Triggering for Digital Output or Analog Output, follow the steps below:  Click in the Enabled box to turn on Trigger digital/analog output.  For the Logic level, click the arrow to select a level (for digital output only).
Page 116: Evm And Particulate Settings
EVM Reports and Printing EVM and Particulate Settings EVM and Particulate Settings The particulate settings may be programmed with up to 8 correction factor profiles. It also provides the capability to view the mass and volume of the gravimetric accumulator and gravimetric volume if get configuration is selected.
Page 117: Evm Firmware Update
EVM Reports and Printing EVM Firmware Update Particulates setup screen Explanation Units Particulate sampling is measured with either mg/m or µg/m . This is selectable via the drop down menu. Particulates setting is either in mg/m (milligrams per cubic meter) or µg/m (micrograms per cubic meter).
Page 118 EVM Reports and Printing EVM Firmware Update (This page intentionally left blank) EVM Series User Manual...
Page 119: Maintenance And Cleaning
CHAPTER Maintenance and Cleaning Overview Maintenance and Cleaning Overview The maintenance and cleaning chapter discusses how to care for the following items:  Care and cleaning with the PID sensor  PID cleaning kit (optional accessory, part number 074-080, see “Customer Service”...
Page 120: Removing And Installing Pid Sensor
Overview Removing and Installing PID Sensor Removing and Installing PID Sensor If you ordered a PID sensor with your instrument, it will be shipped with an installed PID sensor that was factory calibrated. The following procedures explain how to remove and install the PID sensor. Verify the EVM is powered off and the external power supply is unplugged.
Page 121: Maintenance And Cleaning Overview Of Pid
Overview Maintenance and Cleaning Overview of PID Maintenance and Cleaning Overview of PID Periodic maintenance is encouraged to ensure accurate VOC measurements. If you are in an environment with high concentrations of VOCs with aerosols and high particulates, you will want to check the calibration frequently and clean the components.
Page 122: Figure 7-3: Removing The Lamp With Removal Tool
Overview Cleaning PID Sensor Using the pellet removal tool (displayed below), insert into the side crevices and place your thumb over the black pellet.  NOTE: Once you squeeze the pellet removal tool, the lid will pop off with the lamp. In order to prevent it from popping out, it is important to place your thumb over the black pellet first.
Page 123: Optical Engine: Maintenance And Cleaning
Optical Engine: Maintenance and Cleaning Cleaning PID Sensor To refit the lamp and electrode pellet properly, it is recommended to twist the lamp into the O-ring of the electrode pellet (twist clock-wise one full turn) ensuring you use a cloth (with no fibers). Then, lower into the PID sensor as displayed below.
Page 124: Figure 7-7: Optical Engine And Cleaning
Optical Engine: Maintenance and Cleaning Cleaning PID Sensor To clean the optical engine, this requires the use of a 1/16th Allen wrench and a cotton swab.  Maintenance and cleaning of the optical engine Remove the two screws on the optical engine using a Phillips screwdriver. You have two options when removing the screws: ...
Page 125: Figure 7-8: Cleaning The Optical Engine
Optical Engine: Maintenance and Cleaning Cleaning PID Sensor For the photodiode (positioned on the bottom of the optical engine), gently wipe around the bottom of the optical engine using a clean cotton swab/cotton ball. Photodiode Outer cavity of optical engine Figure 7-8: Cleaning the optical engine Place the spherical mirror back over the optical engine.
Page 126: Impactor Care
Impactor Care Cleaning PID Sensor Impactor Care The impactor will require periodic greasing and cleaning which is dependent on the density of air particulates floating in the intended measurement environment.  NOTE: The impactor must be greased before your first measurement. ...
Page 127: Impactors And When To Clean
Gravimetric Cassette and Filter Paper Impactors and When To Clean Impactors and When To Clean When the dust accumulates on top of impactor plate in a pyramid form (as displayed in the figure below), this signifies the impactor plate requires cleaning. For example, in a dense, dusty manufacturing plant, this may require greasing and cleaning after each measurement or every 10 hours of measuring.
Page 128 Gravimetric Cassette and Filter Paper Impactors and When To Clean (This page intentionally left blank) EVM Series User Manual...
Page 129: Specifications
APPENDIX Specifications Particulate Sensor Specifications Particulate Sensor Method Display Range Display Resolution Accuracy/Repeatability Photometer 0.000- 200.0 mg /m 0.001 ±15% (Calibrated to (Non-condensing) Arizona road dust; ISO 12103-1, A2 Fine Test Dust) 0 to 20,000 µg/m Particulates 0.1 – 10 µm *See note below Particulate Sensor - General Size...
Page 130: Carbon Dioxide Sensor
Specifications Carbon Dioxide Sensor Carbon Dioxide Sensor Method & Detector Display Range Display Resolution Accuracy/Repeatability sensor 0 to 5,000 ppm; auto- 1 ppm ±100 ppm @ 20⁰C, 1 bar ranging (Non- pressure at 2,000 ppm  NDIR (non-dispersive condensing) applied gas. infrared) *Note: Manufactured before Qtr3 2012 range...
Page 131: Toxic Gas Sensors
Specifications Toxic Gas Sensors Toxic Gas Sensors Display Accuracy/ Life expectancy/ Gas Type Display Range Resolution Repeatability warranty Carbon Monoxide (CO) 0 – 1000 ppm 1 ppm 5%/ 2% of signal 2 years/ 2 years Chlorine (CL 0.0 – 20 ppm 0.1 ppm 5%/ 2% of signal 2 years/1 year...
Page 132: Electrical Characteristics
Specifications Electrical Characteristics Electrical Characteristics Battery life Approximately 8+ hours of continuous operation at normal operation under reference to environmental conditions when full capacity batteries are installed. Battery pack Rechargeable Lithium-Ion External DC power input 10 to 16 Volt Power Inlet (Nominal 12VDC) 1.5A Power adapter Universal AC adapter 100 to 240 VAC;...
Page 133: Evm Series User Manual
Specifications Operating Modes Operating Modes Live-view screen Pause/Stop modes and Time History Review screen Pause/Stop modes Logging screen Run mode and Time History Review screen Run mode Settings Stop mode Calibration Stop mode Power/Charging Off mode Charging Charging status screen Time Constants 1 second display update rate with 1 to 30 seconds time constants.
Page 134: Estimated Logged Run Times
Specifications Estimated Logged Run Times Estimated Logged Run Times Standard EVM-7 (Memory and logged time) (Logging the following Sensors: Dust, Temp, Humidity, CO , Toxic, PID, Dew Pt) Run Time (Hours) Logging Rate Number of Measurements Logged 1 seconds 31.0 15.5...
Page 135: Standard Evm-4 (Memory And Logged Time)
Specifications Estimated Logged Run Times Run Time (Years) Logging Rate Number of Measurements Logged 1 seconds 5 seconds 15 seconds 30 seconds 1 minute 5 minutes 10 minutes 15 minutes 30 minutes 1 hour 12.7 Standard EVM-4 (Memory and logged time) (Logging the following Sensors: Temp, Humidity, CO , Toxic, Dew Pt) Run Time (Hours)
Page 136 Specifications Estimated Logged Run Times Run Time (Days) Logging Rate Number of Measurements Logged 1 seconds 5 seconds 10.3 15 seconds 31.0 15.5 10.3 30 seconds 62.0 31.0 20.7 15.5 12.4 1 minute 123.9 62.0 41.3 31.0 24.8 5 minutes 619.7 309.9 206.6...
Page 137: Standard Evm-3 (Memory And Logged Time)
Specifications Estimated Logged Run Times Standard EVM-3 (Memory and logged time) (Logging the following Sensors: Dust, Temp, Humidity, Dew Pt) Run Time (Hours) Logging Rate Number of Measurements Logged 1 seconds 49.6 24.8 16.5 12.4 5 seconds 247.9 123.9 82.6 62.0 49.6 15 seconds...
Page 138: Accessories: Replacement And Optional Parts
Accessories: Replacement and Optional Parts Estimated Logged Run Times Run Time (Years) Logging Rate Number of Measurements Logged 1 seconds 5 seconds 15 seconds 30 seconds 1 minute 5 minutes 10 minutes 15 minutes 30 minutes 10.2 1 hour 20.4 10.2 Accessories: Replacement and Optional Parts **All accessories subject to change...
Page 139 Accessories: Replacement and Optional Parts Estimated Logged Run Times Toxic Parts & Numbers Description 054-875 Carbon monoxide smart sensor 054-881 Chlorine smart sensor 054-722 Ethylene oxide smart sensor 054-886 Hydrogen cyanide smart sensor 054-874 Hydrogen sulfide smart sensor 074-102 Ozone sensor 054-873 Oxygen smart sensor 054-877...
Page 140 Accessories: Replacement and Optional Parts Estimated Logged Run Times Options Parts & Numbers Description 054-899 Dummy sensor (used to seal the socket when no gas sensor is present) 053-870 12 VDC car charger adapter Air Probe-10-120 Air-Probe 10 kit includes 120V charger, adapter cable and mounting bracket.
Page 141: Customer Service
Customer Service Technical Support Contacts Customer Service This section gives directions for contacting TSI Incorporated for technical information and directions for returning the EVM Series Environmental Monitor for service. Technical Support Contacts If you have any difficulty setting or operating the instrument, or if you have technical or application questions about this system, contact TSI’s Technical Support.
Page 142: Returning For Service
Customer Service Returning for Service Returning for Service Visit our website at http://rma.tsi.com and complete the on-line “Return Merchandise Authorization” form or call TSI at 1-800-680-1220 (USA) or (651) 490-2860, or 001 651 490 2860 (International) for specific return instructions. Customer Service will need the following information: ...
Page 143: Warranty
Warranty Warranty (For country-specific terms and conditions outside of the USA, please visit www.tsi.com.) Seller warrants the goods, excluding software, sold hereunder, under normal use and service as described in the operator's manual, to be free from defects in workmanship and material for 12 months, or if less, the length of time specified in the operator's manual, from the date of shipment to the customer.
Page 144 Warranty (This page intentionally left blank) EVM Series User Manual...
Page 145: Glossary Of Terms
APPENDIX Glossary of Terms Glossary of Terms Term Definition ACGIH The American Conference of Governmental Industrial Hygienists organization in the United States. Air monitoring Sampling for pollutants in the air using a variety of means such as sorbent tubes, bags, filters and sampling conventions. Air pollutant Any substance in air that could, in high enough concentration, harm man, other animals, vegetation, or material.
Page 146 Glossary of Terms Term Definition Correction Override This is the correction override factor that is applied during your run or after a run for Factor particulate measurements or PID (VOCs) measurements. In DMS, an override factor can be applied after a run via the Correction Override icon. The applied dust override is displayed in the General Data Panel (if selected under the sensor data list).
Page 147 Glossary of Terms Term Definition Hazardous Atmosphere Means an atmosphere presenting a potential for death, disablement, injury, or acute illness from one or more of the following causes: A flammable gas, vapor or mist in excess of 10% of its' lower explosive limit (LEL). An oxygen deficient atmosphere containing less than 19.5% oxygen by volume or an oxygen enriched atmosphere containing more than 23.5% oxygen by volume.
Page 148 Glossary of Terms Term Definition Measurement The following measurements are displayed on the instrument and in the Logged data parameters table/chart in DMS. Average The measurement value over the time interval (or logging interval) Level The instantaneous measurement at a specific point in time. Minimum The minimum measurement over the time interval (or logging interval).
Page 149 Glossary of Terms Term Definition Peak The highest level of toxic gas or oxygen reached while the unit is on. PEL (Permissible Permissible exposure limit. PEL's are a regulatory limitation to exposure used to Exposure Limit) specify the allowable exposure to a substance in the workplace and assume that the exposure takes place over an 8-hour shift in a 40-hour work week.
Page 150 Glossary of Terms Term Definition REL (Recommended Exposure limits set by the National Institute for Occupational Safety and Health Exposure Limit) (NIOSH). Relative Humidity The relative humidity of an air-water mixture is defined as the ratio of the partial pressure of water vapor in the mixture to the saturated vapor pressure of water at a prescribed temperature.
Page 151: Pid Sensor And Correction Factors Tables
APPENDIX Appendix C PID sensor and correction factors tables Appendix C PID sensor and correction factors tables The following chart details approximate correction factors (or response factors) for specific concentrations of VOCs. It is recommended, for best test results, to calibrate the PID sensor with the relevant VOC you intend to measure.
Page 152 Appendix C PID sensor and correction factors tables Formula (used to convert ppm measurement Correction Relative Typical PID Gas/VOC to mg/m factor sensitivity (%) (ppb) Acrolein Acrylic Acid C3H4O2 Acrylonitrile C3H3N Allyl alcohol C3H6O Allyl chloride C3H5Cl Ammonia Amyl acetate, n- C7H14O2 Amyl alcohol C5H12O...
Page 153 Appendix C PID sensor and correction factors tables Formula (used to convert ppm measurement Correction Relative Typical PID Gas/VOC to mg/m factor sensitivity (%) (ppb) Butylamine, 2- C4H11N Butylamine, n- C4H11N Camphene C10H16 Carbon dioxide Carbon disulfide Carbon monoxide Carbon tetrabromide CBr4 Carbon tetrachloride CCl4...
Page 154 Appendix C PID sensor and correction factors tables Formula (used to convert ppm measurement Correction Relative Typical PID Gas/VOC to mg/m factor sensitivity (%) (ppb) Dihydrogen selenide H2Se Dihydroxybenzene, 1,2 C6H6O2 Diisobutylene C8H16 Diisopropyl ether C6H14O Diisopropylamine C6H15N Diketene C4H4O2 Dimethoxymethane C3H8O2 Dimethyl cyclohexane, 1,2-...
Page 155 Appendix C PID sensor and correction factors tables Formula (used to convert ppm measurement Correction Relative Typical PID Gas/VOC to mg/m factor sensitivity (%) (ppb) Ethyl benzene C8H10 Ethyl butyrate C6H12O2 Ethyl chloroformate C3H5O2Cl 8300 Ethyl cyanoacrylate C6H7O2N Ethyl decanoate C12H24O2 Ethyl formate C3H6O2...
Page 156 Appendix C PID sensor and correction factors tables Formula (used to convert ppm measurement Correction Relative Typical PID Gas/VOC to mg/m factor sensitivity (%) (ppb) Hydroquinone C6H6O2 Hydroxypropyl acrylate 2- C6H10O3 Iminodi(ethylamine) 2,2- C4H13N3 Iminodiethanol 2,2'- C4H11NO2 Indene C9H8 Iodine Iodoform CHI3 Iodomethane...
Page 157 Appendix C PID sensor and correction factors tables Formula (used to convert ppm measurement Correction Relative Typical PID Gas/VOC to mg/m factor sensitivity (%) (ppb) Methyl acrylate C4H6O2 Methyl bromide CH3Br Methyl cyanoacrylate C5H5O2N Methyl ethyl ketone C4H8O Methyl ethyl ketone peroxides C8H18O2 Methyl formate C2H4O2...
Page 158 Appendix C PID sensor and correction factors tables Formula (used to convert ppm measurement Correction Relative Typical PID Gas/VOC to mg/m factor sensitivity (%) (ppb) Norbornadiene, 2,5- C7H8 Octachloronaphthalene C10Cl8 Octane, n- C8H18 Octene, 1- C8H16 Oxalic acid C2H2O4 Oxalonitrile C2N2 Oxydiethanol 2,2- C4H10O3...
Page 159 Appendix C PID sensor and correction factors tables Formula (used to convert ppm measurement Correction Relative Typical PID Gas/VOC to mg/m factor sensitivity (%) (ppb) Sodium fluoroacetate C2H2O2FNa Styrene C8H8 Sulphur dioxide Sulphur hexafluoride Sulphur tetrafluoride Sulphuric acid H2SO4 Sulphuryl fluoride SO2F2 Terphenyls C18H14...
Page 160 Appendix C PID sensor and correction factors tables Formula (used to convert ppm measurement Correction Relative Typical PID Gas/VOC to mg/m factor sensitivity (%) (ppb) Trichlorofluoromethane CCl3F Trichloronitromethane CCl3NO2 Trichlorophenoxyacetic acid, 2,4,5- C8H5O3Cl3 Trichloropropane 1,2,3- C3H5Cl3 Trichlorotrifluoroethane, 1,1,1- C2Cl3F3 Trichlorotrifluoroethane, 1,1,2- C2Cl3F3 Triethylamine C6H15N...
Page 161: Frequently Asked Questions (Faqs)
APPENDIX Appendix D Frequently Asked Questions (FAQs) Appendix D Frequently Asked Questions (FAQs) Particulate Measurements Question Response/Solution What do the impactor cut- Depending on the environment and the industrial processes (such as sanding, points represent? cutting, crushing, grinding, and transportation), the type and size of the particulates will impact the human body in different areas, affecting the nasal, throat, and/or lung area.
Page 162 Chapter 7 for details on cleaning and maintenance.) How is the EVM-7 and Each instrument is factory calibrated to the ISO 12103-A2 Fine (Arizona Road EVM-3 calibrated in the Dust). A factory calibration is conducted with a “golden” instrument that is factory? calibrated using a certifiable gravimetric sample.
Page 163: Gravimetric Sample (Optional For Particulate Calibration)
(white, thin cardboard-like circular disc) in the kit)? and the filter is placed on top of the backing. An EVM-7 or EVM-3 is shipped with 10-pack of replaceable filters. (Filters can be ordered in 5-packs via TSI, see TSI contact section.)
Page 164: Toxic Sensor Measurements
Appendix D Toxic Sensor Measurements Toxic Sensor Measurements Question Response/Solution How many toxics can I One toxic sensor (which is located in the left position of the housing); in measure simultaneously? addition to PID (middle position) and CO (right position). Sensor Type Life expectancy Warranty...
Page 165: Pump/Airflow Measurements
Appendix D Pump/Airflow Measurements Pump/Airflow Measurements Question Response/Solution How is the flow rate There is a differential pressure sensor on the PC board that is used to controlled? measure the pressure drop across the orifice above. The reason is to maintain the correct pressure drop across the orifice.
Page 166: Digital Output (Using Stereo Plug & Diagram)
Appendix D Digital Output (using stereo plug & diagram) Digital Output (using stereo plug & diagram) Question Response/Solution How do I access my Using a Stereo plug (as the example shows below), connect the analog tip of the analog or digital out plug to the analog/digital output port (Figure A).
Page 167: Pid Questions (For Volatile Organic Compound Measurements)
Appendix D Frequently Asked Questions (FAQs) PID Questions (for Volatile organic compound measurements) Question Response/Solution Measuring range and The difference between Accuracy and Resolution is as follows: (1) Actual display accuracy, resolution, and repeatability are related to the full operating range from 0 to 2000 ppm;...
Page 168: Power
Appendix D Power Calibration Questions How do we calibrate the A PID calibration is a two point calibration consisting of a zero and a span PID? calibration. The flow rate at L/min is recommended for best performance results (i.e., accuracy and repeatability). To perform a zero calibration Pure Air or Nitrogen should be used.
Page 169: General: Mechanical
Method One: Removing the CO sensor from the EVM housing Sensors’ Locations and Removing (The diagram below is based on the EVM-7 model.) NOTE: Verify the unit is off and unplugged from the power cord before removing or inserting sensors.
Page 170: Co 2 Sensor And How To Reorder (Continued)
Appendix D CO2 Sensor and how to reorder (continued) Sensor and how to reorder (continued) Determine the type of installed CO sensor by counting the number of pins on the sensor. (See images below.) 7-pin CO sensor (P/N 074-712) 5-pin CO senor (P/N 074-733) image: image:...
Page 171 Appendix D Calibrating Sensors Advanced calibration (correction Sensor Type Zero Calibration factors) sensor Performed with Nitrogen gas with a 1 Liter/minute flow rate *NOTE: The range of the CO sensor is 0 to 5,000 ppm. It is recommended to span cal to the value you will be measuring (i.e., 4,500 ppm) for best results.
Page 172 Appendix D Calibrating Sensors Sensor Type Calibration Pump Flow rate An accurate flow meter (i.e., bubble-flow meter) and tubing is required to perform this calibration. The tubing and flow meter are connected to the back outlet or in the turret. Temperature An accurate temperature sensing instrument (i.e., thermometer) is required to perform this calibration.
Page 173: System Errors Displayed On The Evm Series
APPENDIX Appendix E System Errors Displayed on the EVM Series Appendix E System Errors Displayed on the EVM Series There are two types of pop-up notifications that may appear on your instrument. Monitor system errors – The EVM is equipped with numeric system errors which range from 101 to 108.
Page 174 Appendix E System Errors Displayed on the EVM Series Monitor Errors Explanation File system full. Delete files to Files will need to be deleted before proceeding with logged continue measurements. (See File System menu for more information.) File system error. Logging failed Message will appear when there is not enough memory to store new files.
Page 175: Index
PID PPM span cal ..............64 how is theParticulates PID PPM zero cal ..............63 EVM-7 and EVM-3 calibrated in the factory ....... 152 Pump flow rate calibration ............. 53 How many toxics can I measure simultaneously ....154 Relative Humidity or Temperature calibration ...... 66 How often to calibrate the pump? ........
Page 176 INDEX Fire Triangle Time History data ..............72 Defined ................136 Memory ft/m ..................... 74 Estimated logged run time ............ 89 Gas calibration softkeys Memory remaining and file properties ........88 Explained................58 mg ....................74 Gas measurement screen ............79 mg/m ..................
Page 177 INDEX run a noise study ................ 84 Start screen defined ..............13 Run mode ................... 14 STEL Run Time Defined ................138 Explained................23 Stereo plug Running ..................73 How to connect ..............156 running a study Stop mode .................. 14 steps ..................
Page 178 TSI Incorporated – Visit our website www.tsi.com for more information. Tel: +1 800 874 2811 India Tel: +91 80 67877200 Tel: +44 149 4 459200 China Tel: +86 10 8219 7688 France Tel: +33 1 41 19 21 99 Singapore Tel: +65 6595 6388 Germany Tel: +49 241 523030...

This manual is also suitable for:

Evm-3 Evm-4

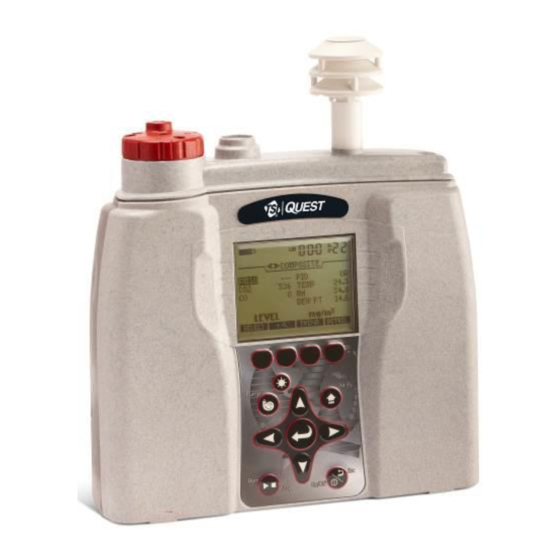

TSI Quest EVM-7 User Manual

Table of Contents

Dangers, Warnings, & Cautions

Introduction

Particulate Sampling (Aerosols/Dust Vapors)

Gas Sensors Sampling

Volatile Organic Compounds (Vocs) Sampling

Temperature, Relative Humidity, Dew Point

What the Standards Say

EVM Series

Getting Started

Checking the Equipment

Display and Keypad

Turning on

Turning off

Instrument Information

TSI Detection Management Software DMS

Communicating

Setting up the Environmental Monitor

Setting up Parameters Via the Keypad

Calibrate Sensors

Placement and Calibration of Sensors

Measuring and Viewing

Overview of Running a Session

Measuring

Measurement Screens and Navigation

Particulate Measurement Screen

Relative Humidity and Temperature Measurements

Gas Measurements

Composite Measurement

Air Velocity Meaursurement Screen

Summary Data

Trend Data

Past Session

File System Menu

Detection Management Software

Environmental Monitor Communication

Downloading Data with the EVM

EVM: Viewing Data

EVM Reports and Printing

Maintenance and Cleaning

Overview

Optical Engine: Maintenance and Cleaning

Impactor Care

Gravimetric Cassette and Filter Paper

Specifications

Particulate Sensor

Volatile Organic Compounds (Vocs) Gas Detector (PID Sensor)

Carbon Dioxide Sensor

Relative Humidity Sensor

Temperature Sensor

Toxic Gas Sensors

Air Velocity Accessory (Optional - Air Probe 10)

Displayed Data

Electrical Characteristics

Environmental Effects

Physical Characteristics

Measurements Units

Operating Modes

Time Constants

Special Functions

Estimated Logged Run Times

Accessories: Replacement and Optional Parts

Customer Service

Technical Support Contacts

Service Contact Information

Returning for Service

Calibration

Warranty

Glossary of Terms

Appendix C

PID Sensor and Correction Factors Tables

Appendix D

Frequently Asked Questions (Faqs)

Appendix E

System Errors Displayed on the EVM Series

Index

Quick Links

Need help?

Questions and answers
