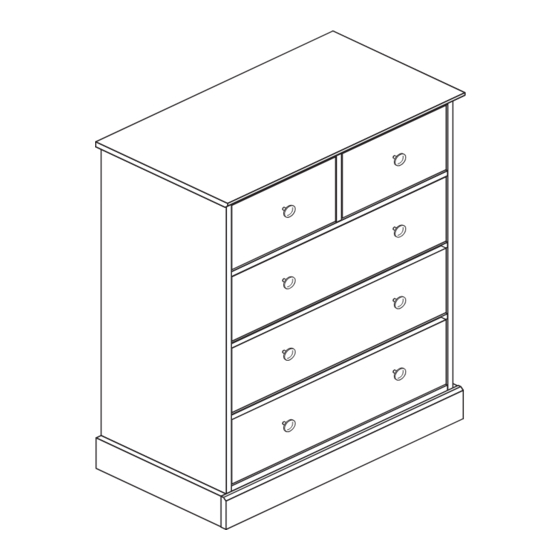

Kensington - 3+2 Drawer Chest
Assembly Instructions -
Dimensions
Width - 48.5cm
Depth - 39.4cm
Height - 97.4cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Please keep for future reference
428/3531
425/9802
MADE IN
BRITAIN
Issue 1 - 16/06/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Kensington
Summary of Contents for Argos Kensington
- Page 1 Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928.
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 33kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 Components - Panels If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020...
- Page 4 Components - Fittings If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly.
- Page 5 Assembly Instructions Step 1 Prepare the 2 small drawer fronts Screw 2 metal dowels into each of the small drawer fronts Note: Tighten the metal dowels up fully against the panels. Step 2 Prepare 2 pair of drawer sides Insert a small locking into the hole shown on the left drawer side...
- Page 6 Assembly Instructions Step 4 Fit the small drawer base Slide the small drawer base down the grooves in the drawer sides down into the groove in the small drawer front Step 5 Fit the small drawer back Fit the small drawer back between the drawer sides Make sure that the small...
- Page 7 Assembly Instructions Step 8 Prepare the 3 large drawer fronts Screw 2 metal dowels into each of the large drawer fronts Note: Tighten the metal dowels up fully against the panels. Step 9 Prepare 3 pair of drawer sides Insert a small locking into the hole shown on the left drawer side...
- Page 8 Assembly Instructions Step 11 Fit the large drawer base Slide the large drawer base down the grooves in the drawer sides down into the groove in the large drawer front Step 12 Fit the large drawer back Fit the large drawer back between the drawer sides Make sure that the large...
- Page 9 Assembly Instructions Step 15 Prepare the left side Place 4 runners the left side shown. Slide back the top of runner and use the Finished 2nd hole from the front front edge to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into...
- Page 10 Assembly Instructions Step 16 Prepare the right side Place 4 runners the right side shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner Finished back the other way and front edge fit the 2nd screw into...
- Page 11 Assembly Instructions Step 17 Prepare the divider Note: Due to the manufacturing process, the 2 holes for the large locking nut can be on Finished either surface of the front edge divider. Place a runner the divider as shown. Slide back the top of Finished runner and use the 2nd front edge...
- Page 12 Assembly Instructions Step 18 Prepare 2 of the rails Insert 2 large locking nuts into each of the 2 rails Tap 2 wooden dowels into each of the 2 rails Screw a metal dowel into each of the 2 rails Step 19 Fit 2 of the rails to the Remember: The large locking nuts...
- Page 13 Assembly Instructions Step 21 Prepare the other 6 rails Insert 2 large locking nuts into each of the 6 rails Tap 2 wooden dowels into each of the 6 rails Step 22 Fit another rail Push another rail onto the right side Use a screwdriver to tighten the large locking fitted to the rail...
- Page 14 Assembly Instructions Step 24 Fit the left side Push the left side onto the rails Use a screwdriver to tighten the large locking fitted to each of the rails Step 25 Prepare the top Screw 4 metal dowels into the top Profiled front edge Step 26...
- Page 15 Assembly Instructions Step 27 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
- Page 16 Assembly Instructions Step 29 Finished top edge Prepare a side plinth Insert a large locking into 1 of the side plinths Tap a wooden dowel into the side plinth Step 30 Prepare the other side plinth Finished top edge Insert a large locking into the side plinth Tap a wooden dowel into the side plinth...
- Page 17 Assembly Instructions Step 33 Fit the plinths Position the 3 plinths around the outside of the assembly, ensuring that the bottom edge of the plinths are flush with the bottom edge of the sides, as shown. Secure the 2 side plinths through the left end .
- Page 18 If in doubt, consult an expert. Assembly is complete If you need help or have damaged or missing parts, please visit www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928. For any other queries please contact the Customer Helpline on: 0345 640 2020...
- Page 20 ALR3176...
