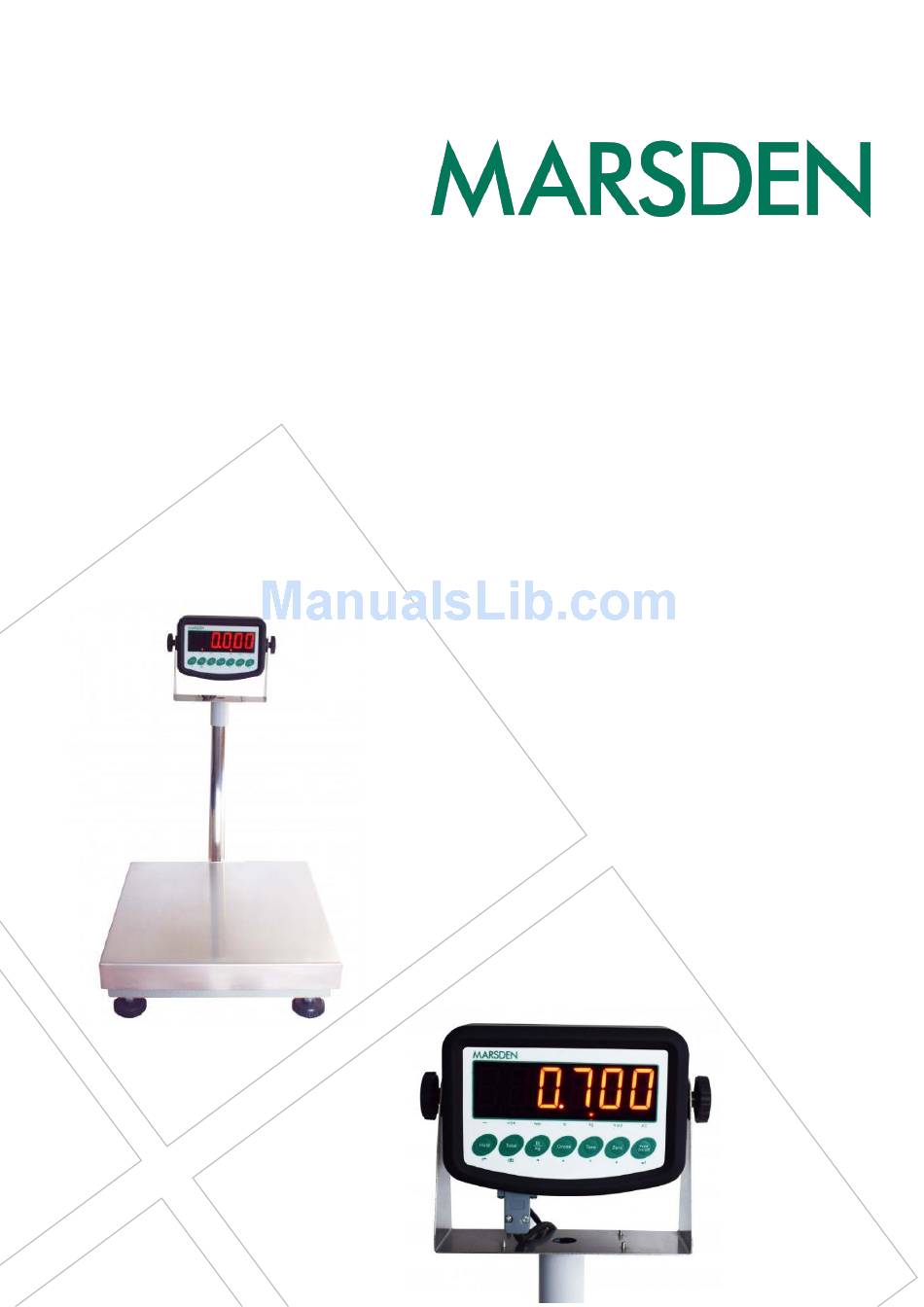

Page 1: User Manual
USER MANUAL MSS-I-400 Please take time to read these instructions before starting to use the scale Version 1.0 01/17... -
Page 2: Table Of Contents
Contents Product Specification Safety Instructions Before Using the Scale Operation: Basic Functions Operation: Advanced Functions Setting the Screensaver Error Messages Page 2... -
Page 3: Product Specification
300mm x 300mm / 400mm x 400mm / 600mm x 600mm Please note: Marsden’s policy is one of continuous development and therefore we reserve the right to change product specification without notice. Indicator images in this manual are for illustration purposes only. -
Page 4: Safety Instructions
The scale does not require any routine maintenance. However, we recommend checking the scale’s accuracy at regular intervals. If any inaccuracies occur, please contact your local dealer or service partner. You can book an accuracy check with the Marsden Service team on 01709 364296. Page 4... -
Page 5: Before Using The Scale
Before using the Scale The scale’s indicator, the I-400 uses power from the 6V4Ah rechargeable battery, or can be powered from the mains lead which is hard wired into the indicator. Once switched on, the scale is only ready to use once the display shows 0.000. Levelling the Scale The mild steel base is fitted with four adjustable levelling feet. -
Page 6: Operation: Basic Functions
Operation: Basic Functions Switching the Scale on/off Press PRINT/ON/OFF to power-on the scale. When the scale shows 0.000 it is ready for weighing. To switch the scale off, press and hold PRINT/ON/OFF for three seconds. The scale will now power down. Setting the Scale to Zero If at any time the reading shows anything other than 0.000 when... -
Page 7: Operation: Advanced Functions
Operation: Advanced Functions Hold Function With the scale switched on, add an item to the base. Press HOLD once. The scale will lock onto and stabilise the weight reading for the item. The reading will remain displayed after the item is removed. Press HOLD again to disable the Hold function and return the scale to 0.000. - Page 8 The scale will show a minus reading. Weigh as normal and the negative weight reading will be deducted from the total weight. Press HOLD again to disable the Hold function and return the scale to 0.000. Switching Between Kg and lb To switch the weight reading between kg and lb, press LB/KG.
- Page 9 Counting Function To count items on the scale, first place a sample quantity on the scale. Switch the indicator to count mode by pressing TOTAL, holding the button until ‘SAMPLE’ is displayed Press PRINT/ON/OFF. ‘PCS’ will display on the screen. Use the LB/KG and GROSS keys for left and right and TARE and ZERO as up and down to input the sample...
- Page 10 Accumulation Function You can use the scale to total up several loads. Add your first item to the scale and press TOTAL. Remove the item from the scale. Add the next item to the scale and press TOTAL again. If you would like to see the current total at any time, press and hold TOTAL for at least two seconds.
-
Page 11: Setting The Screensaver
Setting the Screensaver To save battery power, the screen can power off after a set period of time. To set the time out function, with the indicator switched on and nothing on the scale, press and hold down HOLD until ‘F1’ is displayed. Press and hold ZERO until ‘F3’... -
Page 12: Error Messages
Invalid operation EEPROM error Switch the scale on again; if the error message still shows, contact your dealer/Marsden AD initialization error Switch off the scale and restart. If the error occurs again, contact your dealer/Marsden... - Page 13 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk...
