Storage
Airtop2 supports 6 independent storage
devices: 2x NVMe / SATA SSDs and 4x 2.5"
SATA HDD / SSD.
All storage devices support RAID.
All storage devices are passively cooled by a
dedicated large heatsink.
NVMe / SSD
Airtop2 supports 2x NVMe / SATA SSD with a form factor of M.2 M-Key 2280 | 2260 |
2242
The NVMe devices each has PCIe x4 interface.

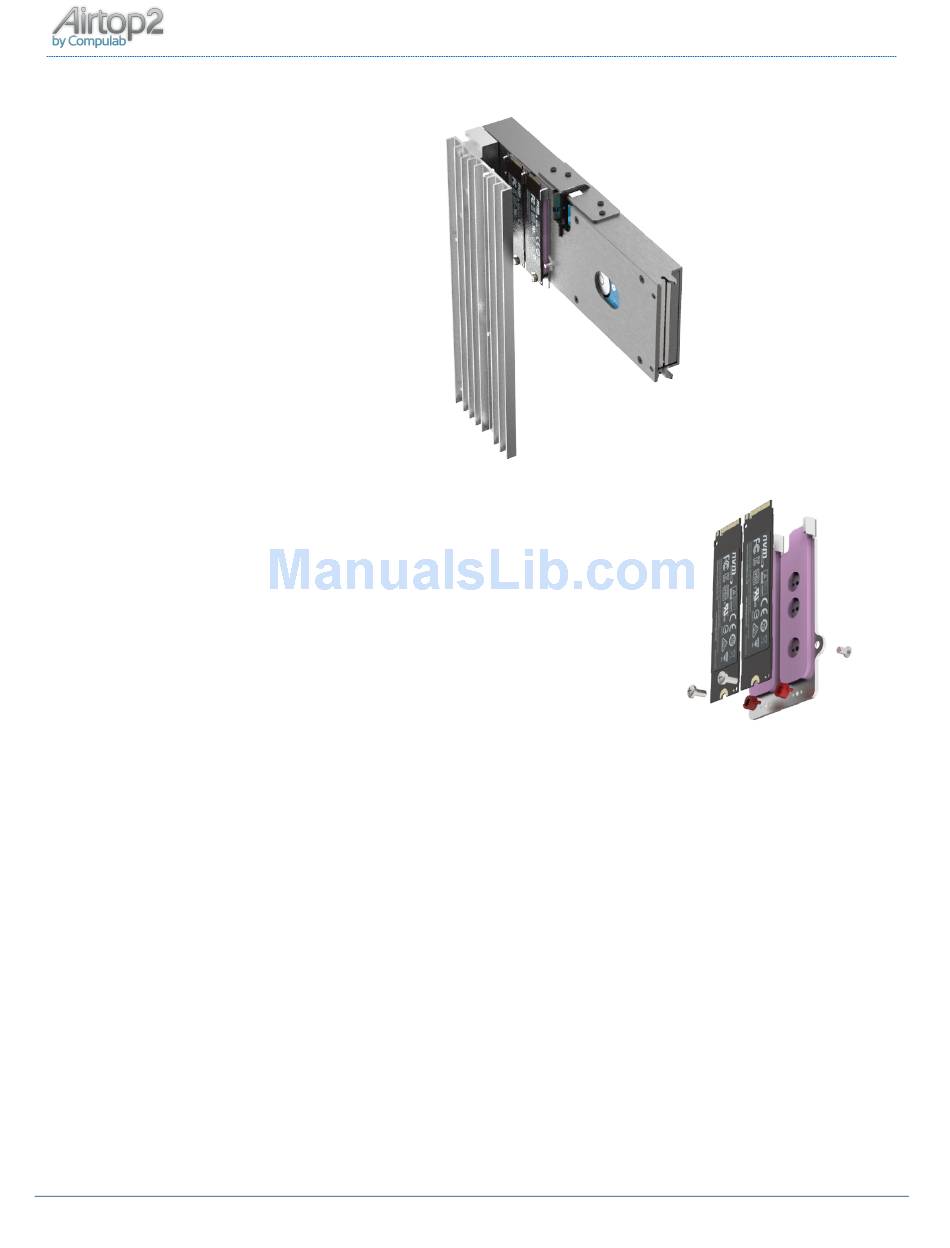

The SSDs are installed by fastening each to the SSD cooling plate using the red spacer
and a pan-head screw.
Please note the position and direction of the red spacer:
• Position is according to the length of the SSD – 2280 being the largest.
The spacer has a step that fits the edge of the SSD.
•
After one or two SSDs are mounted to the SSD cooling plate please proceed as follows:
• Insert the edges of the SSDs into their slots.
• Push down the SSD cooling plate and tighten both flat-head screws to keep the
SSDs and SSD cooling plate in place.
