Dimmer Curve Chart - ADJ 18P HEX IP User Instruction Manual

18P Hex IP
DIMMER
100%
50%
10%
0%
0 Sec
Dimming Curve
Ramp Effect
Standard (default)
Stage
TV
Architectural
Theatre
ADJ Products, LLC - www.adj.com - 18P Hex IP User Manual Page 21
Rise Time
0 sec Fade Time
0
Rise Time (ms)
0
780
1180
1380
1580
255
0
Down Time (ms)
0
1100
1520
1730
1940

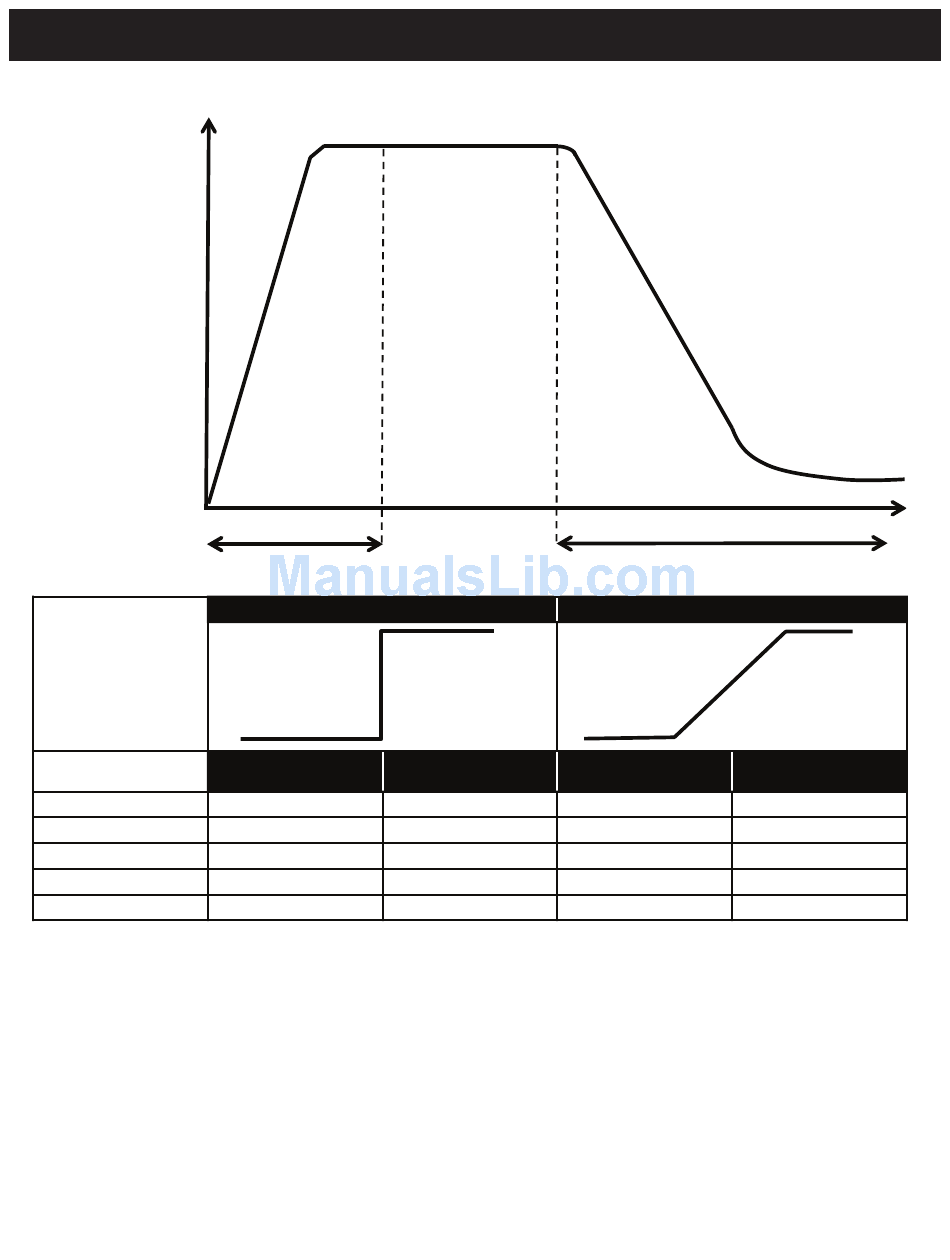

Dimmer Curve Chart

Down Time
1 sec Fade Time
Rise Time (ms) Down Time (ms)
0
1540
1860
2040
2230
Time (ms)
255
0
1660
1940
2120
2280
