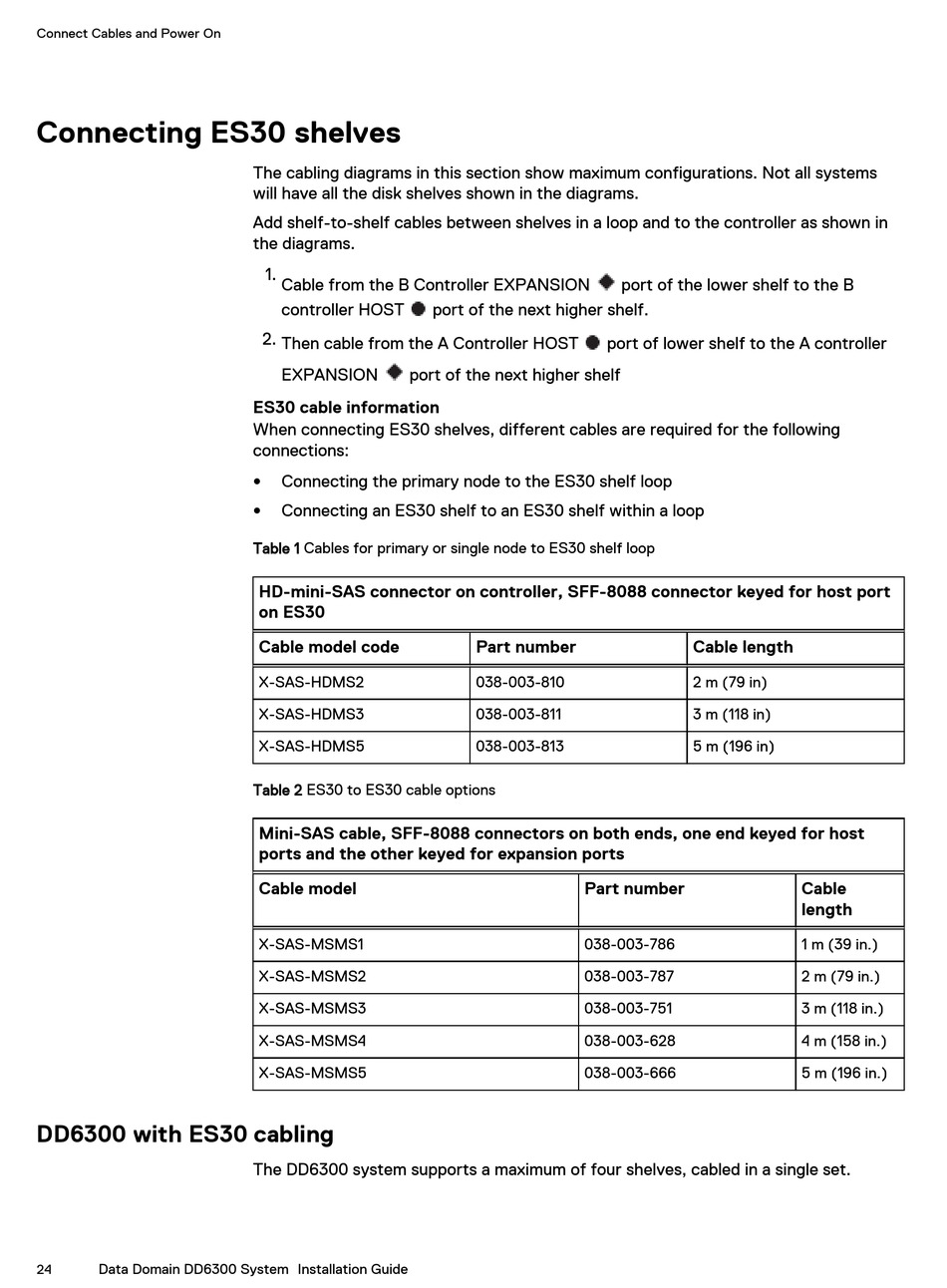

Connecting ES30 shelves

DD6300 with ES30 cabling

Data Domain DD6300 System Installation Guide
24
The cabling diagrams in this section show maximum configurations. Not all systems
will have all the disk shelves shown in the diagrams.
Add shelf-to-shelf cables between shelves in a loop and to the controller as shown in
the diagrams.
1.
Cable from the B Controller EXPANSION
controller HOST
2. Then cable from the A Controller HOST
EXPANSION port of the next higher shelf
ES30 cable information
When connecting ES30 shelves, different cables are required for the following
connections:
Connecting the primary node to the ES30 shelf loop
l
Connecting an ES30 shelf to an ES30 shelf within a loop
l
Table 1 Cables for primary or single node to ES30 shelf loop
HD-mini-SAS connector on controller, SFF-8088 connector keyed for host port
on ES30
Cable model code
X-SAS-HDMS2
X-SAS-HDMS3
X-SAS-HDMS5
Table 2 ES30 to ES30 cable options
Mini-SAS cable, SFF-8088 connectors on both ends, one end keyed for host
ports and the other keyed for expansion ports
Cable model
X-SAS-MSMS1
X-SAS-MSMS2
X-SAS-MSMS3
X-SAS-MSMS4
X-SAS-MSMS5
The DD6300 system supports a maximum of four shelves, cabled in a single set.
port of the next higher shelf.
port of lower shelf to the A controller
Part number
038-003-810
038-003-811
038-003-813
Part number
038-003-786
038-003-787
038-003-751
038-003-628
038-003-666
port of the lower shelf to the B
Cable length
2 m (79 in)
3 m (118 in)
5 m (196 in)
Cable
length
1 m (39 in.)
2 m (79 in.)
3 m (118 in.)
4 m (158 in.)
5 m (196 in.)
