C/CS adjustment lever C/CS adjustment lever
DC ELC
POWER
DC ELC VIDEO
+
DC 12V

OSD MENU

LENS
SHUTTER
BLC
AGC
WHITE BAL.
FUNCTION
ADJUST
10

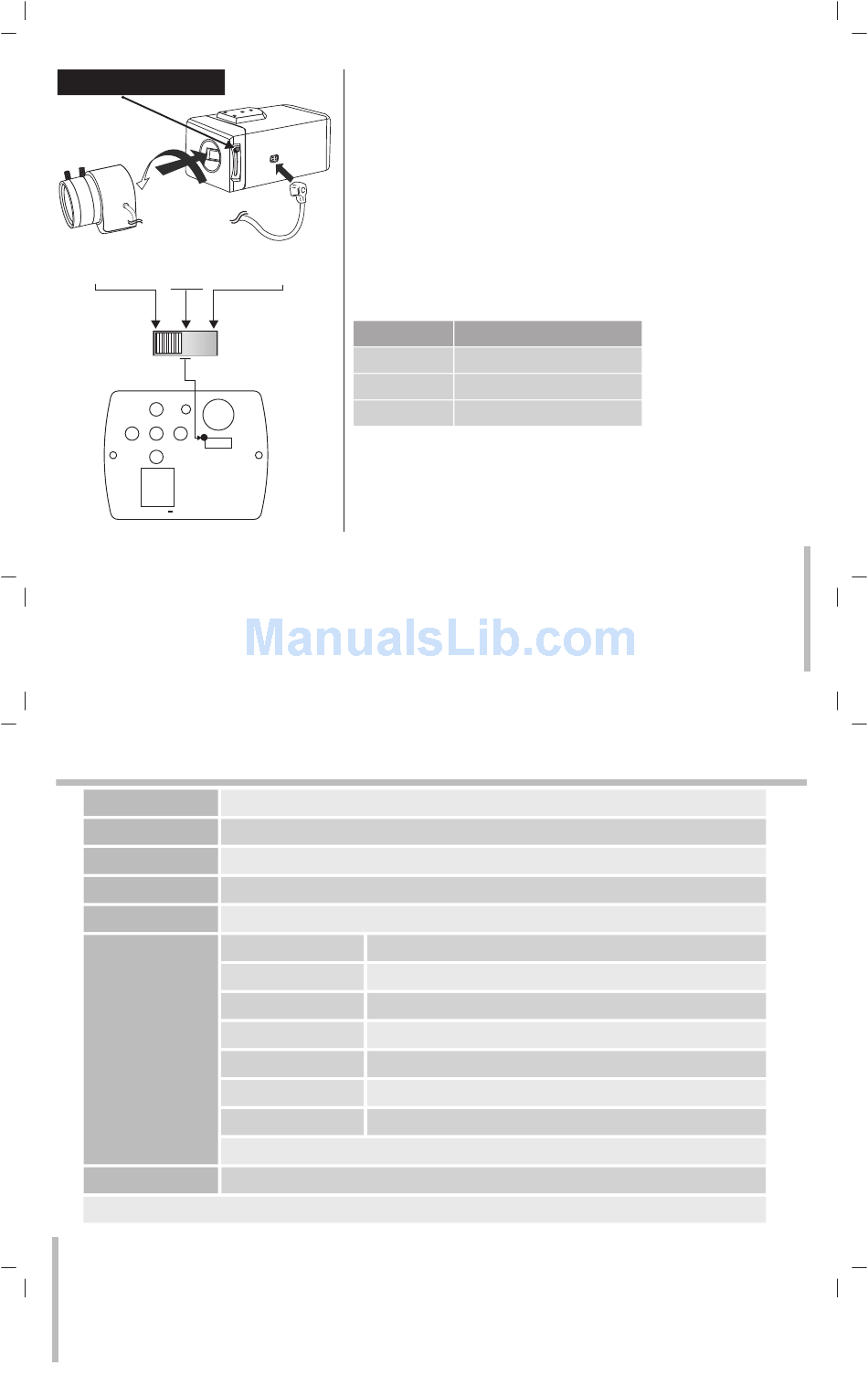

Lens Mounting
1. Loosen the C/CS adjustment lever
2. Hold up the lever to change the mount to CS / Hold down the
lever to change the mount to C
3. Tighten the C/CS adjustmet lever
CAUTION
Be cautious not to use Auto Iris Lens with over 30mA.
DC iris level is preset in the factory. Only if necessary, adjust the DC
iris level to achieve the proper picture with AGC off.
VIDEO
Auto Iris Mode Selection
POSITION
DC
ELC
VIDEO VIDEO
OUT
1. Set the auto iris mode selection switch to the position that
corresponds to the lens which is mounted to the camera.
Please refer to the table on the up.
2. OSD Setting : Refer to 12 page (OSD MENU - Lens)
DC / VIDEO / MANUAL
AUTO / FLK / FIXED
(0~255 steps)
ON / OFF
ON / OFF
ATW / AWB / FIXED / MANUAL
CAMERA ID ON / OFF
MIRROR ON / OFF
DAY & NIGHT AUTO / COLOR / BW
MOTION ON / OFF
PRIVACY ON / OFF
GAMMA 0.05 ~ 1.00 / USER
LANGUAGE ENGLISH / KOREAN / CHINESE1(SC) / CHINESE2(DC) / JAPANESE
RESET
CONTRAST / SHARPNESS / CB_GAIN / CR_GAIN
LENS
DC iris lens
Manual or fixed iris lens
Video iris lens
(1/60-1/50 ~1/100,000 sec)
EXIT
/ MANUAL
(0~255 steps)
