LG LVC-SX703PC Instruction Manual

Hide thumbs

Advertisement

Quick Links

LVC-SX703PC_AA4HEL_ENG_MFL-129
11/7/06
12:05 PM
Page 1

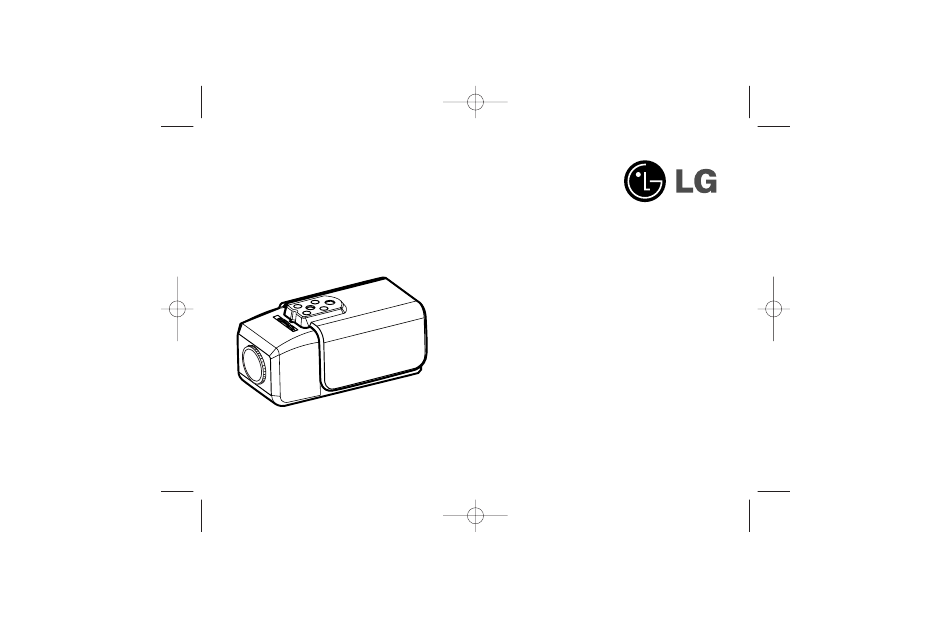

Color Video Camera
Instruction Manual
Models : LVC-SX703PC/OC/MC
LVC-SX703PB/OB/MB
Before installing, operating or adjusting this
product, please read this instruction booklet
carefully and completely.

Advertisement

loading

  Related Manuals for LG LVC-SX703PC

  Summary of Contents for LG LVC-SX703PC

  • Page 1 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 1 Color Video Camera Instruction Manual Models : LVC-SX703PC/OC/MC LVC-SX703PB/OB/MB Before installing, operating or adjusting this product, please read this instruction booklet carefully and completely.
  • Page 2 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 2 This equipment generates, uses, and can radiate radio frequency CAUTION energy and, if not installed and used in accordance with the instruc- tion manual, may cause harmful interference to radio communica- RISK OF ELECTRIC SHOCK tions.
  • Page 3: Important Safety Instructions

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 3 Important Safety Instructions 1. Read these instructions. - All these safety and 7. Do not block any ventilation openings. Install operating instructions should be read before the in accordance with the manufacturer’s instruc- product is operated. tions.
  • Page 4 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 4 Important Safety Instructions 9. Do not defeat the safety purpose of the polar- 12. Use only the cart, stand, tripod, bracket, or ized or grounding-type plug. A polarized plug table specified by the manufacturer, or sold has two blades with one wider than the with apparatus.
  • Page 5: Table Of Contents

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 5 Contents and Features Contents Privacy Masking Setting ....31 Special Menu Settings ....32-37 Important Safety Instructions .
  • Page 6: Features Chart

    Power Source LVC-SX703PC AC24V (50Hz) / DC12V LVC-SX703OC AC24V (50Hz) / DC12V LVC-SX703MC AC24V(50Hz) / DC12V LVC-SX703PB AC230V (50Hz) LVC-SX703OB AC230V (50Hz) LVC-SX703MB AC230V (50Hz) Models LVC-SX703PC/LVC-SX703PB are used for the description, operation, and details pro- vided in this operating guide.
  • Page 7: Cautions For Safe Operation

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 7 Cautions for Safe Operation Power Supply • Extremely hot or cold places (operating tempera- ture -10 °C - 50 °C, however, we recommend This camera must always be operated a AC 24V or that the unit be used within a temperature range DC 12V Certified/Listed, class 2 power supply only.
  • Page 8: Part Names And Functions

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 8 Part Names and Functions 1. Lens mount cap The cap is installed to protect the lens mount section. Remove the lens mount cap before installing a lens (sold separately) . 2. Flange-back adjustment dial 3.
  • Page 9 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 9 Part Names and Functions 5. Power input terminal 5(a) a) AC 24 V or DC 12 V input terminal b) AC 230 V input terminal 6. Video output connector (BNC type) Connect this connector to a device such as a VCR or monitor with a VIDEO IN connector.
  • Page 10 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 10 Part Names and Functions Buttons for menu 10 11 To set items on the MEMU, use the these but- tons on the side panel. (page 17) 10. ALC Lens Setting Switch DC: When you attach an Auto Iris lens requir- ing the DC control signal, please put this switch in the DC position.
  • Page 11: Connections

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 11 Connections Basic connection The peripheral devices (VCR, monitor, lens, etc.), AC adaptor and cables are not supplied. 1. Connecting the monitor Make the video signal connection between the camera and the monitor or time lapse VCR. 2.
  • Page 12: Mounting The Lens

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 12 Mounting the Lens 1. Remove the lens mount cap from the camera. 2. Install the auto-iris lens. 2-1. CS mount type lens Carefully align the lens mount with the camera opening, then turn the lens slowly to install it. 2-2.
  • Page 13: Concerning Auto-Iris Lenses

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 13 Concerning Auto-Iris Lenses ELC type auto-iris lens Use a manual or fixed iris lens (Set the ALC Lens Setting Switch to the ELC position.) If using a VIDEO type auto-iris lens DC type auto-iris lens •...
  • Page 14: External Device Connections

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 14 External Device Connections Contact Ratings • Maximum load current is ±130mA. RS-485 (TR+) • Do not connect any system or ALARM RS-485 (TR-) device that has over 40 Vp-p (DC 30 V) bias voltage on the ALARM (OUT) contact terminal.
  • Page 15: Flange-Back Adjustment

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 15 Flange-back Adjustment The adjustment is required only when a lens with- 1 Loosen the flange-back fixing screw on the out focus-adjusting mechanism is mounted, or flange-back adjusting ring. when a lens with adjusting mechanism is mounted 2.
  • Page 16: Installation Of Camera

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 16 Installation of Camera The bracket can be installed to either the top of the camera as desired. When changing the position of the camera mounting bracket, you should always reuse the screws that have been removed. Note: If using a camera mounting bracket, select a loca- tion that is strong enough to bear the full weight...
  • Page 17: Menu Operation

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 17 Menu Operation This camera utilizes an on-screen user MENU. To set Right button: Moves the cursor to the right. items on the menu, use the following buttons on Use this button to select or adjust the parame- the side panel.
  • Page 18 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 18 Menu Operation To Open and Exit the Menu screen Press and hold down for 2 seconds or more. The MENU screen appears on the monitor as shown below. Check the current settings on the menu. Press and hold down for 2 seconds or more to exit the menu screen.
  • Page 19: Language And Camera Identification Settings

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 19 Language and Camera Identification Settings Language Setting MENU LANGUAGE ENGLISH Select a language for the Setup menu and on-screen display. CAMERA ID 1. Select [LANGUAGE] option on the [MENU] screen. EXPOSURE 2. Press left or right button to select a language. WHITE BAL PUSH AUTO DAY/NIGHT...
  • Page 20: Exposure Settings

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 20 Exposure Settings You can set the exposure options using the EXPOSURE menu. MENU LANGUAGE ENGLISH 1. Select [EXPOSURE] option on the [MENU] screen. CAMERA ID EXPOSURE 2. Press , or button and the EXPOSURE menu appears. WHITE BAL PUSH AUTO 3.
  • Page 21 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 21 Exposure Settings Automatic Gain Control (AGC) setting MENU LANGUAGE ENGLISH If the images are too dark, change the maximum [AGC] value to CAMERA ID make the images lighter. EXPOSURE WHITE BAL PUSH AUTO 1. Select [EXPOSURE] option on the [MENU] screen then press DAY/NIGHT AUTO MOTION DET...
  • Page 22 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 22 Exposure Settings Shutter Speed Setting (SHUTTER) MENU LANGUAGE ENGLISH Note: When [FLICKERLESS] option is set to [ON] on the [EXPOSURE] CAMERA ID menu, this item is not available. EXPOSURE WHITE BAL PUSH AUTO 1. Select [EXPOSURE] option on the [MENU] screen then press DAY/NIGHT AUTO MOTION DET...
  • Page 23 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 23 Exposure Settings You can set the exposure options using the [EXPOSURE] menu. MENU LANGUAGE ENGLISH CAMERA ID BLC/WDR Setting EXPOSURE WHITE BAL PUSH AUTO Use [BLC/WDR] option to set the options for BLC or WDR camera. DAY/NIGHT AUTO MOTION DET...
  • Page 24 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 24 Exposure Settings USER: You can use the user setting for BLC level and BLC area. EXPOSURE BRIGHTNESS • LEVEL: Select a user BLC level to prevent such a back light AGC MAX MEDIUM effect to secure a clear image. SHUTTER AUTO FLIKERLESS...
  • Page 25: White Balance Settings

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 25 White Balance Settings You can set the white balance options using the [WHITE BALANCE] MENU menu. LANGUAGE ENGLISH CAMERA ID 1. Select [WHITE BAL] option on the [MENU] screen. EXPOSURE WHITE BAL PUSH AUTO 2.
  • Page 26 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 26 White Balance Settings Setting the WB (White Balance) Mode MENU LANGUAGE ENGLISH You can select one of three modes for white balance adjustment as CAMERA ID follows: EXPOSURE WHITE BAL 1. Select [WHITE BALANCE ] option on the [MENU] screen then DAY/NIGHT AUTO MOTION DET...
  • Page 27 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 27 White Balance Settings PUSH AUTO: If you select the PUSH AUTO mode in the WHITE WHITE BALANCE BALANCE menu, you will be able to set up the White Balance WB MODE PUSH AUTO RED ADJ automatically using button;...
  • Page 28: Day/Night Setting

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 28 Day/Night Setting It is a function of a color camera to delete the filter with the IR Cut MENU function in an illumination below the standard value so that it has a LANGUAGE ENGLISH CAMERA ID better sensitivity.
  • Page 29: Motion Detector Setting (Motion Det)

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 29 Motion Detector Setting (MOTION DET) The motion detector detects the moving objects in the scene by MENU monitoring changes in brightness level. You can select the level of LANGUAGE ENGLISH CAMERA ID sensitivity for motion detection. EXPOSURE When this camera is connected to a compatible intelligent CCTV WHITE BAL...
  • Page 30 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 30 Motion Detector Setting (MOTION DET) This camera has an alarm function. When the picture changes, the 4/15 internal switch is closed. • Sensitivity LEFT CENTER RIGHT 7/15 Motion is detected when the accumulated value of changed brightness level exceeds 10% (MEDIUM mode) of reference in more than one area.
  • Page 31: Privacy Masking Setting

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:05 PM Page 31 Privacy Masking Setting This function is aiming at the protection of personal privacy, select- MENU ing a screen part black not to be displayed in the screen. This func- LANGUAGE ENGLISH CAMERA ID tion permits the control of the strength level in 8 levels. You may EXPOSURE setup the size and location of the area.
  • Page 32: Special Menu Settings

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:06 PM Page 32 Special Menu Settings This menu lets you adjust and set up EFFECT, D-ZOOM, USER TITLE, MENU TITLE DISP, and SYNC function by yourself in the SPECIAL menu. LANGUAGE ENGLISH CAMERA ID 1. Select [SPECIAL] option on the [MENU] screen. EXPOSURE WHITE BAL 2.
  • Page 33 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:06 PM Page 33 Special Menu Settings Setting the digital effect (EFFECT) MENU LANGUAGE ENGLISH You can select the digital effect. CAMERA ID EXPOSURE 1. Select [SPECIAL] option on the [MENU] screen. WHITE BAL DAY/NIGHT AUTO 2. Press , or button and the SPECIAL menu appears.
  • Page 34 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:06 PM Page 34 Special Menu Settings Setting the digital zoom (D-ZOOM) MENU LANGUAGE ENGLISH You can select the digital zoom level. CAMERA ID This function is not available when the BLC/WDR option is set to EXPOSURE WHITE BAL WDR or EFFECT option is set to FREEZE.
  • Page 35 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:06 PM Page 35 Special Menu Settings Setting the title display MENU LANGUAGE ENGLISH The onscreen display of camera’s name can be turned on or off. CAMERA ID EXPOSURE 1. Select [SPECIAL] option on the [MENU] screen. WHITE BAL DAY/NIGHT AUTO 2.
  • Page 36 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:06 PM Page 36 Special Menu Settings Synchronization Setting (SYNC) MENU LANGUAGE ENGLISH You can select internal sync (INT) mode or line-lock (LINE) mode. CAMERA ID The SYNC function is available only with AC power source. EXPOSURE WHITE BAL 1.
  • Page 37 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:06 PM Page 37 Special Menu Settings Setting the Pix Mapping MENU LANGUAGE ENGLISH You can improve the picture quality with this function that compen- CAMERA ID sate damaged pixels. EXPOSURE WHITE BAL 1. Select [SPECIAL] option on the [MENU] screen. DAY/NIGHT AUTO MOTION DET...
  • Page 38: Rs-485 Protocol

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:06 PM Page 38 RS-485 Protocol Data Communication Format Commands • Data Length: 1 Byte (8 Bit) Function Command • Start/Stop Bit: 1 BIT (external device → camera) • Parity Bit: None OSD Menu ON/OFF 0xC5, 0x5F, 0x25, 0x00, ID, C.S. •...
  • Page 39: Specifications

    LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:06 PM Page 39 Specifications Total/Effective Pixels 470K/440K Pixels Pick-up Device 1/3” Interline Color CCD Lens C/CS Mount Iris DC/ELC/VIDEO Selectable Signal Process Digital Signal Process Scanning System 2:1 Interface Synchronization System Internal/Line Lock Scanning Frequency 50 Hz (VD) Resolution 540 Lines S/N Ratio...
  • Page 40 LVC-SX703PC_AA4HEL_ENG_MFL-129 11/7/06 12:06 PM Page 40 Specifications Electric Shutter 1/50 - 1/100,000 (Auto Mode) White Balance ATW/PUSH AUTO/MANUAL Back Light OFF/BLC1/BLC2/USER/WDR Motion Detection: OFF/ON (Area, Sensitivity) Power Consumption Less than 6W Operation Temperature -10ºC - 50ºC (Humidity: 0%RH - 80%RH) Storage Temperature -20ºC - 60ºC (Humidity: 0%RH - 85%RH) Weight...
