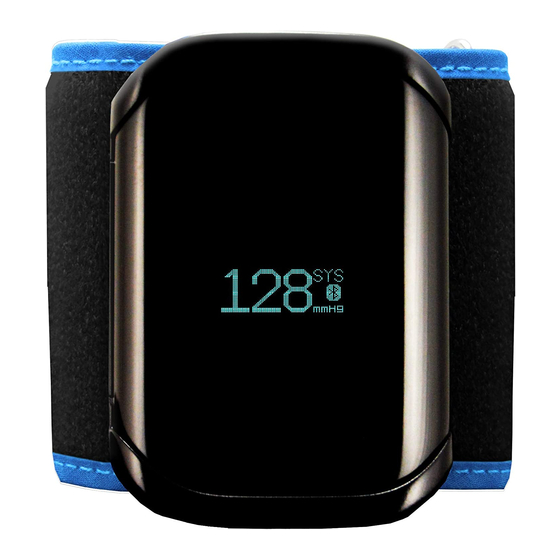

Premium wireless wrist blood pressure monitor
Hide thumbs Also See for ULTRACONNECT UB-1100BLE:
Table of Contents

Advertisement

Quick Links

ULTRACONNECT
Premium Wireless Wrist
Blood Pressure Monitor
Instruction Manual
ORIGINAL
English
1WMPD4003418A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRACONNECT UB-1100BLE and is the answer not in the manual?

Questions and answers

Related Manuals for A&D ULTRACONNECT UB-1100BLE

Summary of Contents for A&D ULTRACONNECT UB-1100BLE

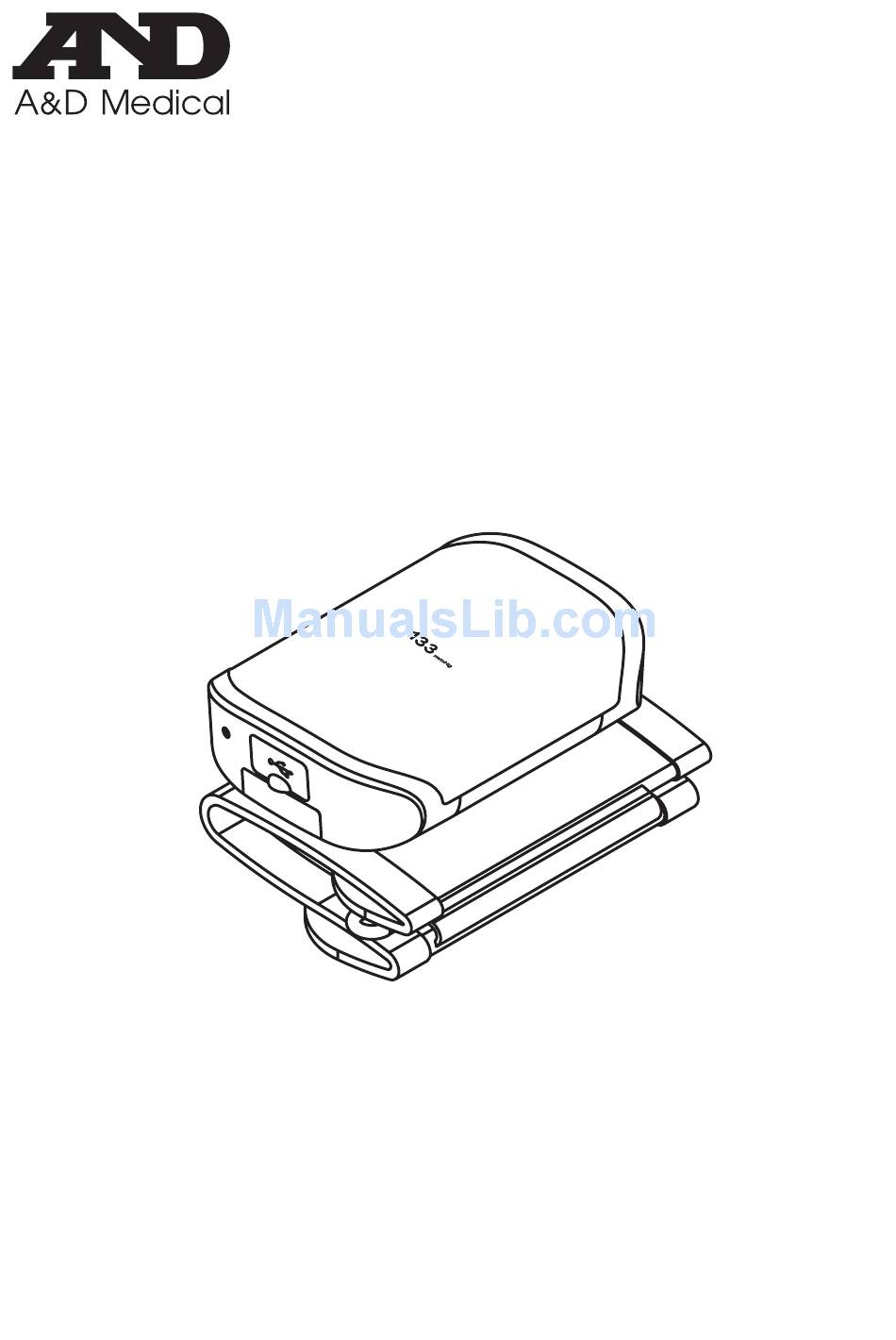

  • Page 1 ULTRACONNECT Premium Wireless Wrist Blood Pressure Monitor Instruction Manual ORIGINAL English 1WMPD4003418A...
  • Page 2 GREETINGS This A&D blood pressure monitor is one of the most advanced monitors available and is designed for ease of use and accuracy. This device will facilitate your daily blood pressure regimen. We recommend that you read through this manual carefully before using the device for the first time.
  • Page 3 PRELIMINARY REMARKS • The device complies with part 15 of the FCC rules and contains the FCC ID VPYLBZY. • The device is designed for use on adults only, and is not intended for infants. • This device is designed for use in the home healthcare environment to measure blood pressure and pulse rate of people for diagnosis.
  • Page 4 PRECAUTIONS • To measure blood pressure, the wrist must be squeezed by the cuff hard enough to temporarily stop blood flow through the artery. This may cause pain, numbness or a temporary red mark to the wrist. This condition will appear especially when measurement is repeated successively.
  • Page 5 PRECAUTIONS • This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operations.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Parts Identification Contents Symbols Using the Monitor E-12 Measurement E-18 What is an Irregular Heartbeat E-23 Pressure Bar Indicator E-24 Settings E-25 Troubleshooting E-28 Maintenance E-29 Technical Data E-30 Contact Information E-32 Warranty E-33 EMC Information E-36...

  • Page 7: Parts Identification

    PARTS IDENTIFICATION Start Switch OLED Reset Switch Cuff USB Connector CONTENTS • 1 Blood Pressure Monitor • 1 Instruction Manual • 1 Quick Start Guide • 1 Charging Cable...

  • Page 8: Symbols

    SYMBOLS Symbols that appear on the display and the app Symbols Function/Meaning Recommended Action A&D logo Systolic blood pressure in mmHg mmHg Diastolic blood pressure mmHg in mmHg Pulse per minute /min The battery power is low Charge the device User Select mode Select the user Application is connected...
  • Page 9 SYMBOLS Symbols Function/Meaning Recommended Action The C.P.G. Indicator: Place the blood pressure HIGH. The height of the monitor at the same level blood pressure monitor as your heart. is higher than your heart. Appears while Measurement is in measurement is in progress.
  • Page 10 SYMBOLS Symbols Function/Meaning Recommended Action Measurements can be taken but device will not Airplane mode transmit data wirelessly. The reading may yield Appears when a body or wrist movement is an incorrect value. Take detected. another measurement. Monitor screen Remain still during measurement.
  • Page 11 SYMBOLS Symbols printed on the device case and cuff Symbols Function/Meaning Stand by and turn the device on. Direct current Type BF: Device and cuff are designed to provide special protection against electrical shocks. Serial number Refer to instruction manual/booklet Keep dry Bluetooth address...

  • Page 12: Using The Monitor

    USING THE MONITOR ULTRACONNECT Wireless Wrist Blood Pressure Monitor features 5 measurement modes. 1. In-App Mode Measurement: User can take measurements and view their trends in the A&D Connect app. 2. Offline Mode Measurement: Measurement can also be completed without the A&D Connect app.

  • Page 13: Blood Pressure Monitor

    USING THE MONITOR Charging the Device Battery may be partially charged but be sure to charge the device completely upon first use after purchase. 1. Remove the USB connector cover. 2. Connect the charging cable. 3. During charging, the red LED will illuminate. 4.
  • Page 14 USING THE MONITOR Wireless Function † In the unlikely event that this monitor causes radio wave interference to a different wireless station, change the location where this monitor is used or stop use immediately. † Be sure to use in a location where visibility between the two devices that you want to connect is good.
  • Page 15 USING THE MONITOR Bluetooth Transmission ® This product is equipped with a Bluetooth 4.1 wireless ® function and can connect to the following Bluetooth devices. ® Apple iOS v.6.0 or newer Android OS 4.4.4, 5.1, 6.0, iPhone 4s or newer; and 7.0 iPod touch 5th gen;...
  • Page 16 USING THE MONITOR Device Setup (Pairing) 1. Ensure the Bluetooth function of the ® mobile device is ON. 2. Select UB-1100BLE from the Device Setup screen on the app. 3. Bring the mobile device near the monitor. The icon to the left will blink on the monitor.
  • Page 17 USING THE MONITOR Applying the Wrist Cuff 1. Wrap the cuff around your wrist about 1cm above your hand as shown in the figure below. 2. Apply the cuff tightly using the Velcro strip. Note: For accurate measurements, apply the cuff tightly and measure on a bare wrist. E-17...

  • Page 18: Measurement

    MEASUREMENT In-App Mode Measurement 1. Ensure the Bluetooth function of the mobile device is ON. ® 2. Open the A&D Connect app. The app will automatically detect the presence of the monitor. 3. Press the Take Measurement button, followed by the Start button on the app screen.
  • Page 19 MEASUREMENT Offline Mode Measurement 1. Press the Start button on the monitor. After the A&D logo appears for 1 second, the User Select screen will display. 2. Press the Start button again to select a user or switch between username from User Select screen. Username can be changed in the app under Settings.
  • Page 20 MEASUREMENT Upload Stored Measurement The monitor can store up to 100 readings and can be transferred to the app on next connection. To transfer data, open the A&D Connect app and select Upload Measurement from the dashboard pop-up window. Upload Measurement App Display Multiuser Mode Measurement 1.
  • Page 21 MEASUREMENT Visitor Mode Measurement 1. Press the Start button on the monitor. 2. Press the Start button again to switch between username and select “0 Visitor”. 3. The C.P.G. indicator will display the correct wrist position briefly. Measurement starts automatically after 3 seconds. 4.
  • Page 22 MEASUREMENT Tips for a good Measurement • Sit down in a comfortable position. Place the wrist to be used for the measurement on a table or other support so that the center of the cuff will be at the same height as your heart.

  • Page 23: What Is An Irregular Heartbeat

    MEASUREMENT Tips for a Good Measurement (continued) • The automatic blood pressure monitor’s performance may be affected by excessive temperature, humidity, or altitude. • Keep your back straight. WHAT IS AN IRREGULAR HEARTBEAT When an irregular heartbeat is detected, the app shows IHB icon .

  • Page 24: Pressure Bar Indicator

    PRESSURE BAR INDICATOR The Pressure Rating Indicator™ is a feature which provides a snapshot of your blood pressure classification based on your measurements. This will let you quickly know what your blood pressure readings mean. Each segment of the bar indicator corresponds to the Seventh Report of the Joint National Committee (JNC7) on Prevention, Evaluation and Treatment of High Blood Pressure from the National Heart, Lung and Blood Institute –...

  • Page 25: Settings

    SETTINGS Setting Description Nickname User can overwrite the default monitor display username and assign a personal username (up to 10 characters). Start Time Enables a user to choose how long of an interval between pressing “Start” button and when the monitor will start measurement. For multiple users, a longer interval is useful.
  • Page 26 SETTINGS The C.P.G. Indicator Setting The C.P.G. (Correct Position Guidance) HIGH indicator is the function to inform a difference between the height (wrist angle) of the blood LEVEL pressure monitor and your cardiac height in the correct posture (Example: sitting posture, height of table and chair, etc.) during the measurement.
  • Page 27 SETTINGS Press Next to set your CPG position. Have the wrist monitor at your heart level and press Set. The blood pressure monitor now memorizes your best position. You’ll see a check mark in the Set my Position box indicating it’s done. Press Next App Display to set position...

  • Page 28: Troubleshooting

    TROUBLESHOOTING Symptom Probable Cause Treatment Power Low Battery Charge the battery. does not Blood Pressure Press the Reset Switch. turn on. monitor internal error. Battery charging Remove the charging cable. cable is connected. The cuff Low Battery Charge the battery. does not inflate.

  • Page 29: Maintenance

    MAINTENANCE Do not open the device. It uses delicate electrical components and an intricate air unit that could be damaged. If you cannot fix the problem using the troubleshooting instructions, contact the authorized dealer in your area or our customer service department.

  • Page 30: Technical Data

    TECHNICAL DATA Type UB-1100BLE Measurement method Oscillometric measurement Measurement range Pressure: 0 - 299 mmHg Systolic pressure: 60 - 279 mmHg Diastolic pressure: 40 - 200 mmHg Pulse: 40 - 180 beats/min Measurement accuracy Pressure: ±3 mmHg Pulse: ±5 % Wrist circumference 13.5cm - 21.5cm Power supply...

  • Page 31: Instruction Manual

    TECHNICAL DATA Included items UB-1100BLE - 1PC Instruction Manual - 1PC Charging cable (KSUSB-2C) - 1PC Quick Guide - 1PC Option AC adapter: AX-TB265 (TSC-5E1) FCC Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 32: Contact Information

    CONTACT INFORMATION Our products are designed and manufactured using the latest scientific and technological methods, and offer accurate, easy to use, home monitoring and treatment options. Our full product line includes: • Digital Blood Pressure Monitors • Manual Blood Pressure Monitors •...
  • Page 33 WARRANTY Limited 5 Year Warranty A&D Medical Blood Pressure Monitor For purchasers within the US only: Product Consumer Commercial Warranty Term Warranty Term UB-1100BLE 5 Years 2 Years Limited Warranty: A&D Medical (“A&D”) warrants to the first purchaser (“You”) that the A&D product You purchased (the “Product”) will be free from defects in material, workmanship and design for the applicable Warranty Term stated above from the date You purchased the Product under normal use.

  • Page 34: Warranty

    WARRANTY prepaid, within the warranty period to the address set forth below, together with satisfactory proof of the date of Your purchase (such as a sales receipt or statement of online warranty registration) and a description of the defect. Also, contact A&D Medical for appropriate shipping costs, then enclose a check for return shipping and insurance of the Product.
  • Page 35 WARRANTY above remedy of repair, replacement or refund is your only and exclusive remedy. IN NO EVENT SHALL A&D BE LIABLE FOR ANY DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS, LOST INFORMATION OR REPLACEMENT COSTS, ARISING OUT OF YOUR USE OF OR INABILITY TO USE THE PRODUCT, INCLUDING, WITHOUT LIMITATION, ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF A&D HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

  • Page 36: Emc Information

    EMC Information Medical Electrical Equipment needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in the following. Portable and mobile RF communication equipment (e.g. cell phones) can affect Medical Electrical Equipment. The use of accessories and cables other than those specified may result in increased emissions or decreased immunity of the unit.
  • Page 37 EMC Information Rated maximum Separation distance according to frequency of output power of transmitter m transmitter 150 kHz to 80 MHz to 800 MHz to 80 MHz 800 MHz 2.5 GHz d = 0.35 √P d = 0.35 √P d = 0.70 √P 0.01 0.035 0.035...
  • Page 38 EMC Information Guidance and manufacturer’s declaration – electromagnetic immunity The A&D unit is intended for use in the electromagnetic environment specified below. The customer or the user of the A&D unit should assure that it is used in such an environment. Immunity IEC 60601 Compliance...
  • Page 39 EMC Information Note: 1 At 80 MHz and 800 MHz, the higher frequency range applies. Note 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Field strengths from fixed transmitters, such as base stations for radio (cellular/ cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
  • Page 40 EMC Information Surge ± 1 kV line n.a. Mains power quality IEC 61000-4-5 to line should be that of a typical commercial or hospital ±2 kV line environment. to earth Voltage < 5% UT n.a. Mains power quality dips,short (> 95% dip should be that of a typical interruptions in UT) for...
  • Page 41 B L O O D P R E S S U R E R E C O R D NAME: AGE: WEIGHT: DATE SYS/DIA PULSE SYS/DIA PULSE...
  • Page 42 B L O O D P R E S S U R E R E C O R D NAME: AGE: WEIGHT: DATE SYS/DIA PULSE SYS/DIA PULSE...
  • Page 43 B L O O D P R E S S U R E R E C O R D NAME: AGE: WEIGHT: DATE SYS/DIA PULSE SYS/DIA PULSE...
  • Page 44 Manufactured by: A&D Company, Limited 1-243 Asahi, Kitamato-shi, Saitama, 364-8585 Japan www.aandd.jp [81] (48) 593-1119 Manufactured for: A&D Engineering, Inc. 1756 Automation Parkway San Jose, CA 95131 U.S.A. www.andmedical.com 1-888-726-9966 Distributed in Canada by: Auto Control Medical 6695 Millcreek Dr., Unit 6 Mississauga, ON, L5N 5R8 Canada www.lifesourcecanada.com 1-800-461-0991...
