Summary of Contents for A&D UB-328

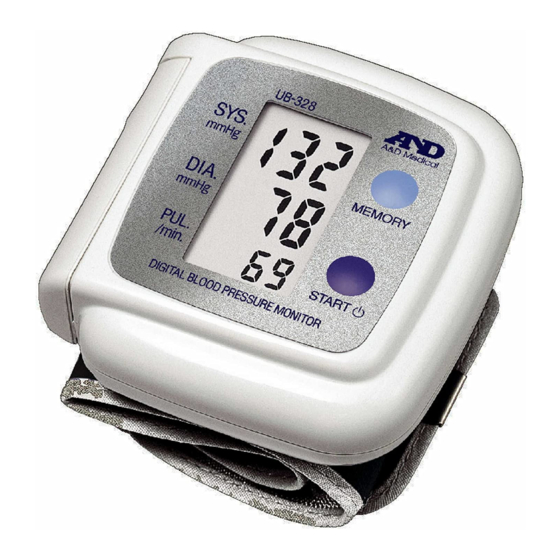

- Page 1 Wrist Digital Blood Pressure Monitor Model UB-328 Instruction Manual Manuel d’instructions Manual de Instrucciones Manuale di Istruzioni WM+PD4000913...
-
Page 2: Dear Customers
ENGLISH Dear Customers Congratulations. You have purchased an A&D blood pressure monitor, one of the most technologically advanced, yet easy to use products available in the marketplace today. We strongly recommend you read this instruction manual carefully prior to using it the first time. General Information This device conforms to the European Community Directive 93/42/EEC for Medical Products. -
Page 3: Parts Identification
Parts Identification ENGLISH 2... - Page 4 Symbols Symbols Function / Meaning Treatment Turns the device on and off. ___________ Guide to install battery ___________ Direct current ___________ Serial number ___________ Date of manufacture ___________ Type BF: Device, cuff and tubing are designed to ___________ provide special protection against electrical shocks. Appears when measurement is in progress and Measurement is in progress –...
-
Page 5: Using The Monitor
Systolic blood pressure in mmHg ___________ Diastolic blood pressure in mmHg ___________ Pulse beats per minute ___________ The EC directive medical device label ___________ Using the Monitor 1. Installing the batteries 1. Remove the battery holder cover. 2. Place two batteries (LR03 or AAA) in the holder, with positive (+) and negative (-) terminals matching those indicated in the holder. -
Page 6: Fastening The Cuff
Using the Monitor 2. Fastening the cuff 1. Wrap the cuff around your wrist, about 1 cm above your hand, as shown in the figure at the right. 2. Fasten the cuff tightly using the Velcro strip. Note: For proper measurements, fasten the cuff tightly and measure on a bare wrist. 3. - Page 7 Measurements Note: The UB-328, once used, will provide an inflation appropriate to the user, based on the previous measurement. If your systolic pressure is expected to exceed 150 mmHg, read "For those whose systolic pressure is over 150 mmHg" on page 7.
-
Page 8: For Those Whose Systolic Pressure Is Over 150 Mmhg
3. When the desired number is reached, release the START button. Measurement will begin. Note: The operation above is required only when you measure your blood pressure for the first time. The next time, the UB-328 will provide an appropriate inflation, so measure your blood pressure as described on page 6. ENGLISH 7... -
Page 9: Recalling Memory Data
Recalling Memory Data The UB-328 automatically stores up to 30 blood pressure and pulse measurements in its memory. Measurements stored in memory are assigned an index number in the order of the newest to the oldest. The oldest reading displays as “n01”. -
Page 10: What Is An Irregular Heartbeat
What Is An Irregular Heartbeat? Model UB-328 blood pressure monitor provides a blood pressure and pulse rate measurement even when an irregular heartbeat occurs. An irregular heartbeat is defined as a heartbeat that varies by 25% from the average of all heartbeats during the blood pressure measurement. -
Page 11: Why Measure Blood Pressure At Home
• Maintain proper weight. • Exercise regularly. • Have regular physical checkups. 3. Why measure blood pressure at home? Blood pressure measured at a clinic or doctor's office may cause apprehension or fear and can produce an elevated reading, 25 to 30 mmHg higher than that measured at home. Home measurement reduces the effects of outside influences on blood pressure readings, supplements the doctor's readings and provides a more accurate, complete blood pressure history. -
Page 12: Blood Pressure Variations
About Blood Pressure 5. Blood pressure variations An individual’s blood pressure varies greatly on a daily and seasonal basis. It may vary by 30 to 50 mmHg due to various conditions during the day. In hypertensive individuals, variations are even more pronounced. Normally, the blood pressure rises while at work or play and falls to its lowest levels during sleep. -
Page 13: Troubleshooting
Troubleshooting Problem Probable cause Corrective action Nothing appears in Batteries are drained. Replace all batteries with new ones. the display, even Battery terminals are not in the correct Place the batteries with negative and positive terminals when the power is position. -
Page 14: Maintenance
The technical testing procedures, which should be done at least every two years, can be performed either by the manufacturer or by an authorized repair service in accordance with the regulations governing manufacturing of medical products. Technical Data Type UB-328 Measurement method Oscillometric measurement Measurement range Pressure: 20 - 280 mmHg, Pulse: 40 - 200 beats / minute Measurement accuracy Pressure: ±3 mmHg or 2%, whichever is greater, Pulse: ±5%... - Page 15 ENGLISH 14...
