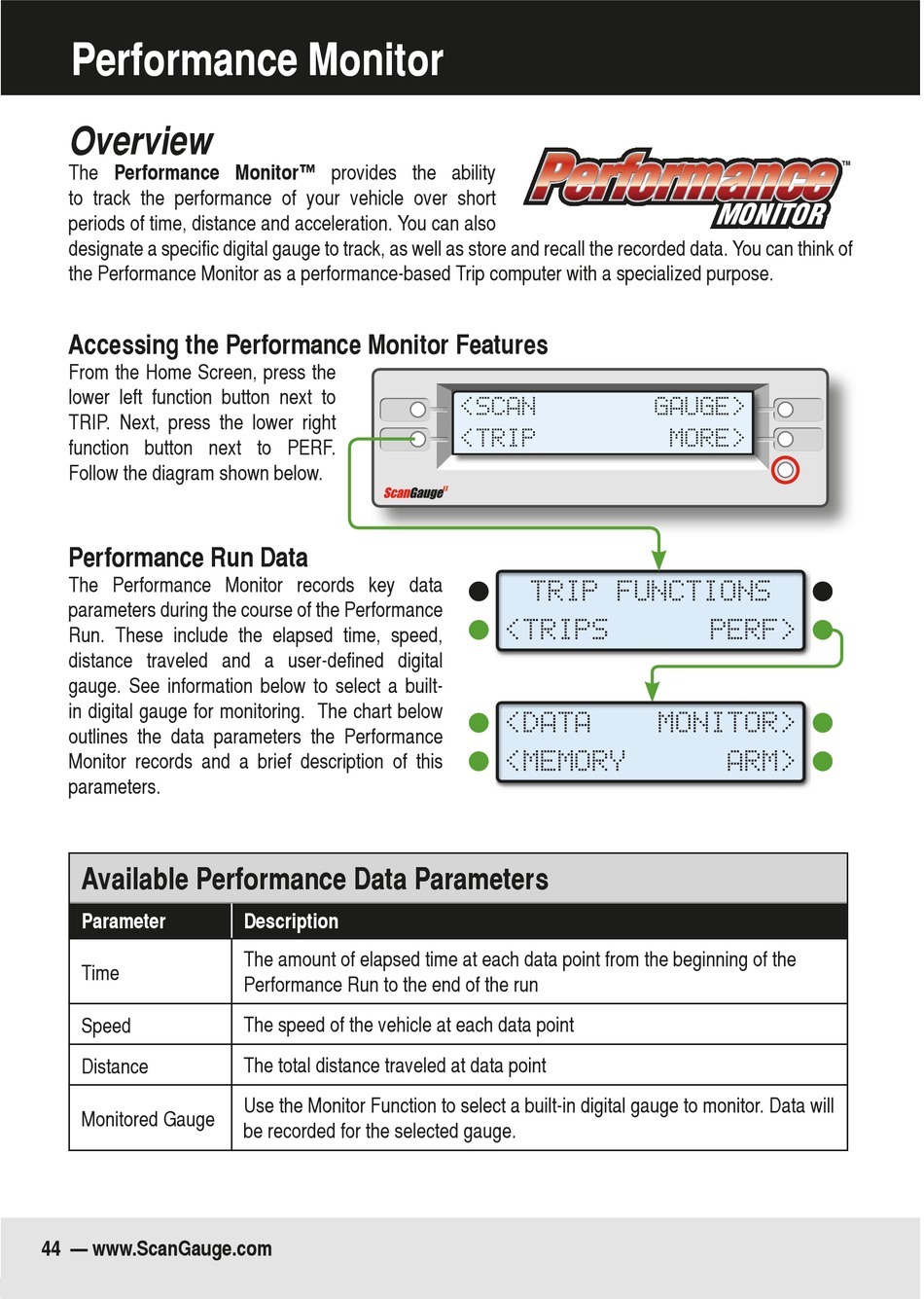

Performance Monitor
Overview
The Performance Monitor™ provides the ability
to track the performance of your vehicle over short
periods of time, distance and acceleration. You can also
designate a specific digital gauge to track, as well as store and recall the recorded data. You can think of
the Performance Monitor as a performance-based Trip computer with a specialized purpose.
Accessing the Performance Monitor Features
From the Home Screen, press the
lower left function button next to
TRIP. Next, press the lower right
function button next to PERF.
Follow the diagram shown below.
Performance Run Data
The Performance Monitor records key data
parameters during the course of the Performance
Run. These include the elapsed time, speed,
distance traveled and a user-defined digital
gauge. See information below to select a built-
in digital gauge for monitoring. The chart below
outlines the data parameters the Performance
Monitor records and a brief description of this
parameters.
Available Performance Data Parameters
Parameter
Time
Speed
Distance
Monitored Gauge
44 — www.ScanGauge.com
Description
The amount of elapsed time at each data point from the beginning of the
Performance Run to the end of the run
The speed of the vehicle at each data point
The total distance traveled at data point
Use the Monitor Function to select a built-in digital gauge to monitor. Data will
be recorded for the selected gauge.
<SCAN
<TRIP
TRIP FUNCTIONS
<TRIPS
<DATA
<MEMORY
GAUGE>
MORE>
PERF>
MONITOR>
ARM>
