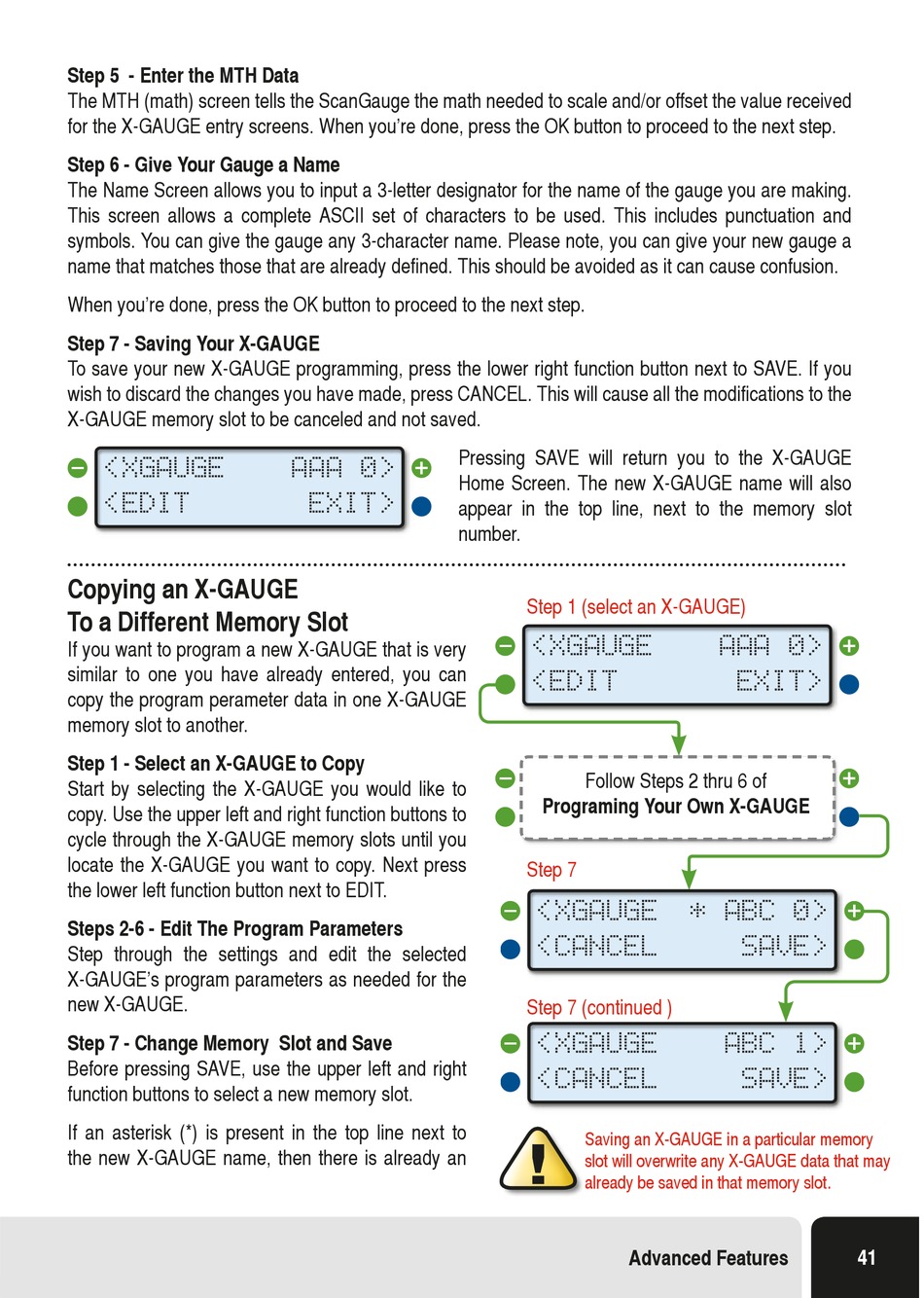

Linear Logic ScanGauge II User Manual page 41

Step 5 - Enter the MTH Data
The MTH (math) screen tells the ScanGauge the math needed to scale and/or offset the value received
for the X-GAUGE entry screens. When you're done, press the OK button to proceed to the next step.
Step 6 - Give Your Gauge a Name
The Name Screen allows you to input a 3-letter designator for the name of the gauge you are making.
This screen allows a complete ASCII set of characters to be used. This includes punctuation and
symbols. You can give the gauge any 3-character name. Please note, you can give your new gauge a
name that matches those that are already defined. This should be avoided as it can cause confusion.
When you're done, press the OK button to proceed to the next step.
Step 7 - Saving Your X-GAUGE
To save your new X-GAUGE programming, press the lower right function button next to SAVE. If you
wish to discard the changes you have made, press CANCEL. This will cause all the modifications to the
X-GAUGE memory slot to be canceled and not saved.
<XGAUGE
<EDIT
Copying an X-GAUGE
To a Different Memory Slot
If you want to program a new X-GAUGE that is very
similar to one you have already entered, you can
copy the program perameter data in one X-GAUGE
memory slot to another.
Step 1 - Select an X-GAUGE to Copy
Start by selecting the X-GAUGE you would like to
copy. Use the upper left and right function buttons to
cycle through the X-GAUGE memory slots until you
locate the X-GAUGE you want to copy. Next press
the lower left function button next to EDIT.
Steps 2-6 - Edit The Program Parameters
Step through the settings and edit the selected
X-GAUGE's program parameters as needed for the
new X-GAUGE.
Step 7 - Change Memory Slot and Save
Before pressing SAVE, use the upper left and right
function buttons to select a new memory slot.
If an asterisk (*) is present in the top line next to
the new X-GAUGE name, then there is already an
Pressing SAVE will return you to the X-GAUGE
AAA 0>
Home Screen. The new X-GAUGE name will also
EXIT>
appear in the top line, next to the memory slot
number.
Step 1 (select an X-GAUGE)
<XGAUGE
<EDIT
<XGAUGE
Follow Steps 2 thru 6 of
Programing Your Own X-GAUGE
<EDIT
Step 7
<XGAUGE * ABC 0>
<CANCEL
Step 7 (continued )
<XGAUGE
<CANCEL
Saving an X-GAUGE in a particular memory
slot will overwrite any X-GAUGE data that may
already be saved in that memory slot.
Advanced Features
AAA 0>
EXIT>
1>
EXIT>
SAVE>
ABC 1>
SAVE>
