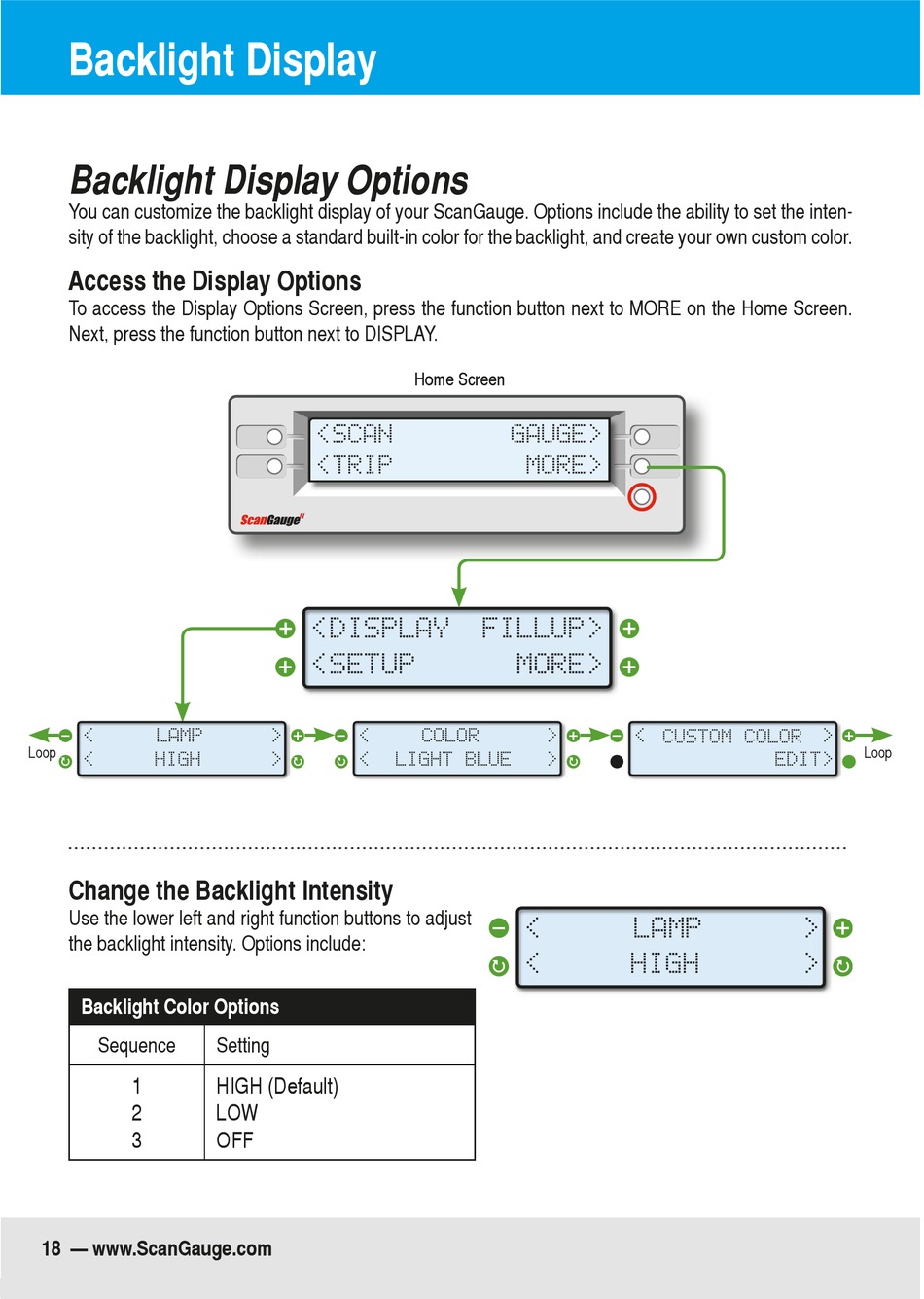

Backlight Display

Backlight Display Options

You can customize the backlight display of your ScanGauge. Options include the ability to set the inten-
sity of the backlight, choose a standard built-in color for the backlight, and create your own custom color.
Access the Display Options
To access the Display Options Screen, press the function button next to MORE on the Home Screen.
Next, press the function button next to DISPLAY.
< LAMP
Loop
< HIGH
Change the Backlight Intensity
Use the lower left and right function buttons to adjust
the backlight intensity. Options include:
Backlight Color Options
Sequence
1
2
3
18 — www.ScanGauge.com
<SCAN
<TRIP
<DISPLAY
<SETUP
> <
> <
Setting
HIGH (Default)
LOW
OFF
Home Screen
GAUGE>
MORE>
FILLUP>
MORE>
COLOR >
LIGHT BLUE >
<
<
<
CUSTOM COLOR
EDIT>
LAMP >
HIGH >
>
Loop
