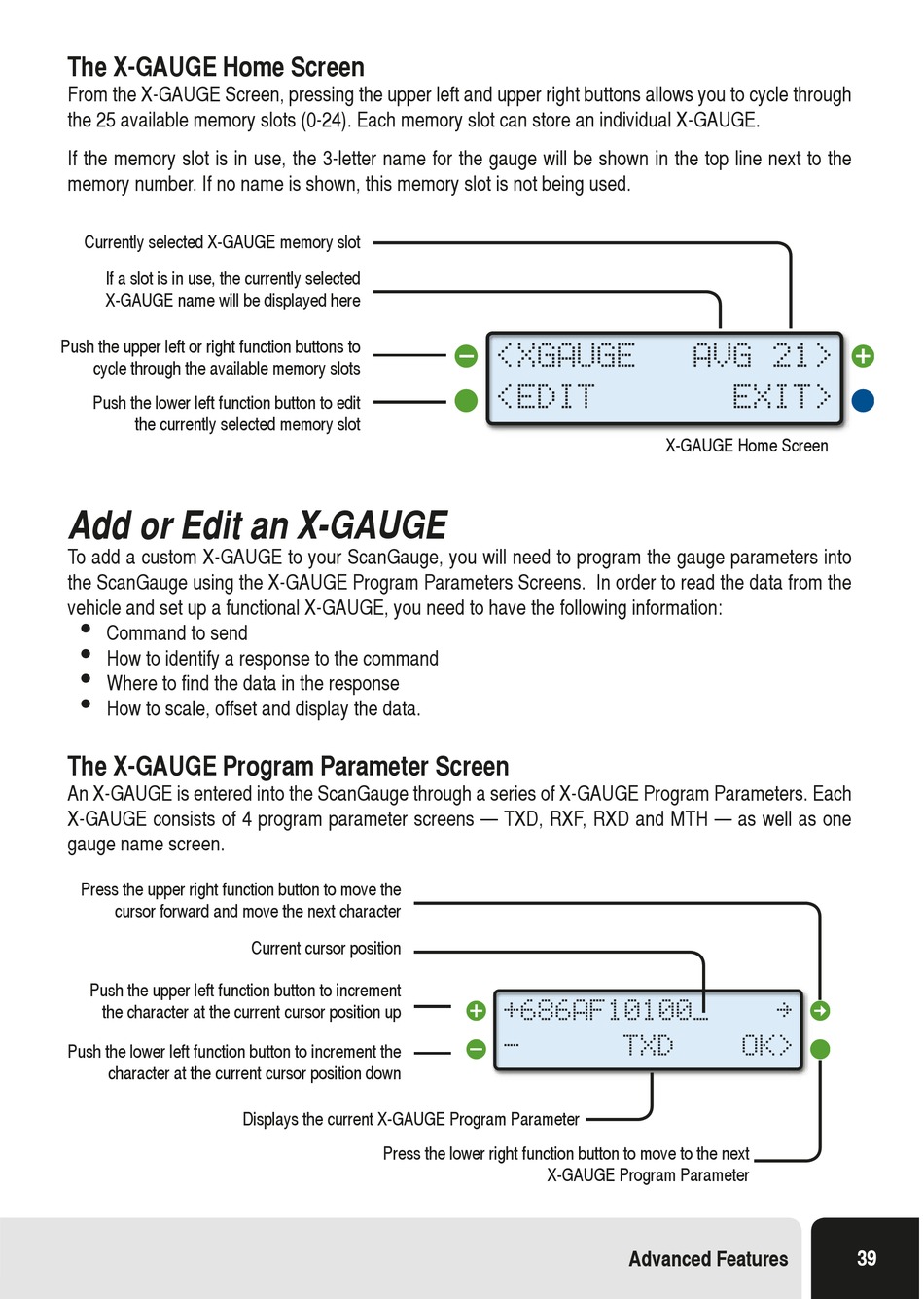

The X-GAUGE Home Screen
From the X-GAUGE Screen, pressing the upper left and upper right buttons allows you to cycle through
the 25 available memory slots (0-24). Each memory slot can store an individual X-GAUGE.
If the memory slot is in use, the 3-letter name for the gauge will be shown in the top line next to the
memory number. If no name is shown, this memory slot is not being used.
Currently selected X-GAUGE memory slot
If a slot is in use, the currently selected
X-GAUGE name will be displayed here
Push the upper left or right function buttons to
cycle through the available memory slots
Push the lower left function button to edit
the currently selected memory slot

Add or Edit an X-GAUGE

To add a custom X-GAUGE to your ScanGauge, you will need to program the gauge parameters into
the ScanGauge using the X-GAUGE Program Parameters Screens. In order to read the data from the
vehicle and set up a functional X-GAUGE, you need to have the following information:
Command to send
How to identify a response to the command
Where to find the data in the response
How to scale, offset and display the data.
The X-GAUGE Program Parameter Screen
An X-GAUGE is entered into the ScanGauge through a series of X-GAUGE Program Parameters. Each
X-GAUGE consists of 4 program parameter screens — TXD, RXF, RXD and MTH — as well as one
gauge name screen.
Press the upper right function button to move the
cursor forward and move the next character
Push the upper left function button to increment
the character at the current cursor position up
Push the lower left function button to increment the
character at the current cursor position down
Current cursor position
Displays the current X-GAUGE Program Parameter
Press the lower right function button to move to the next
<XGAUGE
<EDIT
X-GAUGE Home Screen
+686AF10100_
-
TXD
X-GAUGE Program Parameter
Advanced Features
AVG 21>
EXIT>
»
OK>
39
