- Page 1 SA-4150 MULTICHANNEL POWER AMPLIFIER N Instruction manual...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
-
Page 4: Controls And Functions

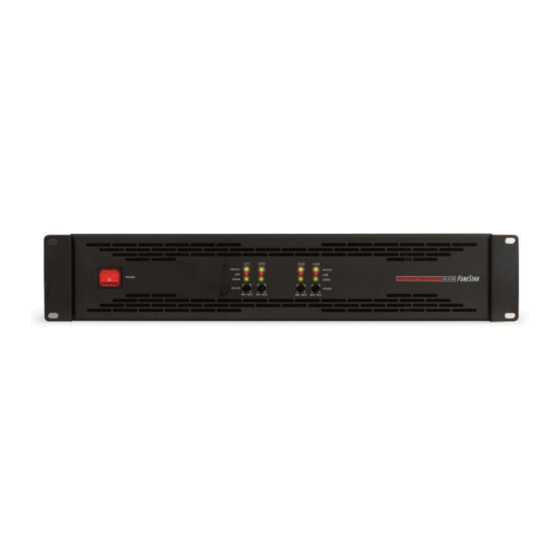

DESCRIPTION - Professional multichannel power amplifier. - 4 x 150 W RMS at 4 Ω, 4 x 85 W RMS at 8 Ω. - 2 x 300 W RMS at 8 Ω in bridge mode. - Stereo, parallel or bridge mode. CONTROLS AND FUNCTIONS FRONT PANEL POWER: system on/off switch. - Page 5 MODE: operating mode selector for the power amp inputs/outputs. It is possible to select between parallel (PAR), stereo (STR) and bridge (BRD) mode. For more information, see the CONNECTION section. LINK CH1-CH4: unbalanced line level outputs for channels CH1 to CH4, RCA connectors. GROUND: this selector is normally placed in the GND position.
- Page 6 PARALLEL MODE (PAR) Place the MODE selector in the PAR position. In this mode, the input signal for channels for channels CH1 and CH2 is the CH1 input signal and the input signal for channels CH3 and CH4 is the CH3 input signal. Connect the inputs to CH1 and CH3 and the 4 speaker outputs to pins 1+, 1- on the connector.
-
Page 7: Specifications
SPECIFICATIONS SA-4150 CHARACTERISTICS Professional multichannel power amplifier. POWER 4 x 150 W RMS at 4 Ω 4 x 85 W RMS at 8 Ω BRIDGE MODE POWER 2 x 300 W RMS at 8 Ω PROTECTION Soft start, short circuit, overload, temperature and DC... -
Page 8: Declaration Of Conformity
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
