Revolution ECO 16 and 28 Bay Trolley
Installing the lockable lid
(continued)

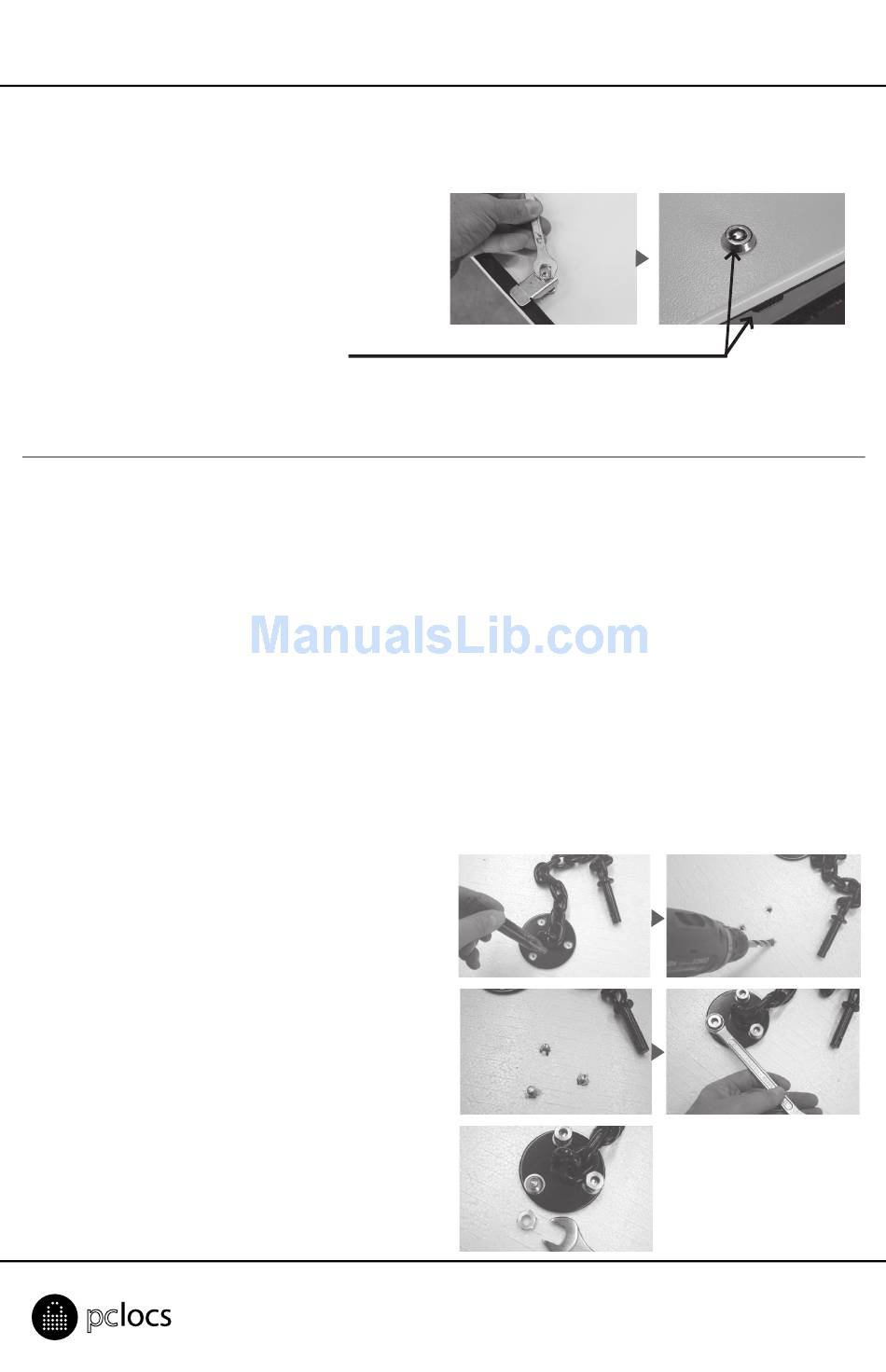

Fit the lock tongue as shown
Fit the small washer and M6 nut over the
lock tongue and tighten. DO NOT OVER
TIGHTEN to avoid stripping the thread.
Turn the Lockable Lid right way up. The
keyway should be pointing to the left and
the lock tongue pointing out from the lid.
This is the 'locked' position.
Test the locking mechanism by inserting the key and turning in a clockwise direction. This is the
unlocked position. The lid can now be fitted to the trolley by sliding the non-lock end into the
bracket at the end of the trolley top and lowering the lock end of the lid onto the bracket.
Install the Security Chain Kit
Tools required:
> Masonry hammer-drill
> 10mm masonry drill bit
> Pencil and ruler/tape
> Hammer
> 13mm and 17mm spanners
Wheel your PC Locs RR Trolley to the location in which you intend to store and secure it.
Ensure that the
It is best if the Floor Plate is located as close as possible to a vertical wall to reduce the hazard of
personal injury. Insert the pin end of the chain in the trolley and position the plate end in the desired
position on the floor. NOTE: If mounting on carpet you will need to cut out the carpet from the area
where the floor plate attaches
Mark the centre of each of the 3 holes.
Drill a 10mm hole through each of the
3 marked centres to a depth of 50mm,
using the floor plate as a guide.
Insert the anchor bolts with nut attached into the
holes through the floor plate. Using the 13 mm
spanner, progressively tighten down each of
these anchor nuts so that all three bolts are
firmly anchored into the concrete.
Now undo each of the three nuts, and in their
place thread on the three silver shear-nuts.
Ensure that the 'cone' is down and the hexagonal
nut is up. Using the 17mm spanner tighten
down the three shear nuts until the hexagonal
'head' shears off, leaving just the cone 'base'.
> The PC Locs 'RR Security Chain Kit' containing
trolley (and chain)
the following:
– 1 x 3 holed Anchor Plate and security chain
– 3 x 55mm long, 8mm Anchor Bolts
– 3 x Shear Nuts and washers
– 1 x BSD Lock and key set
will reach the intended Floor Plate location.
