  • Page 1 FUYL TOWER INSTRUCTIONS - HARDWARE www.pclocs.com.au | www.lockncharge.com...

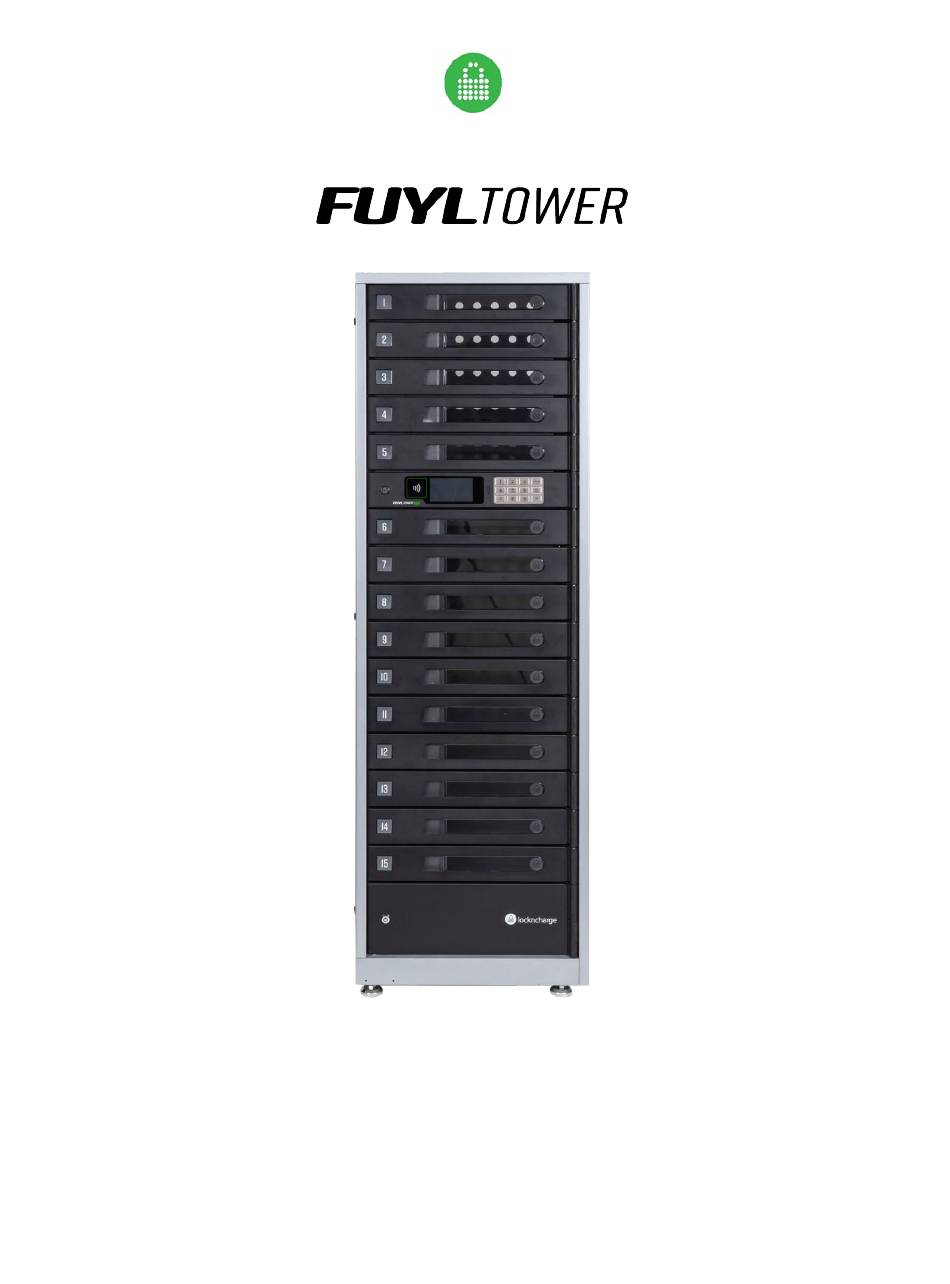

  • Page 2 1.0.1 Overview The FUYL Tower is an intelligent asset management system with a central electronic access control panel that can store, charge and secure mobile devices. The Tower has individually secured bays. Each charging bay features a mains voltage power outlet (110V / 240V locale dependant), with in-built circuit protection and a 5V USB charging port capable of 2.4A charge current.

  • Page 3: Table Of Contents

    FUYL Tower Instructions - hardware with release software version 1.0.1 CONTENTS CONTENTS..................................3 SAFETY INSTRUCTIONS ..............................4 INSTALLATION ................................. 5 SETUP ..................................... 6 GENERAL USE .................................. 7 USER SPECIFIED PIN (USP) MODE – STORING AND RETREIVING A LOCKERS CONTENTS ............7 ADMIN SPECIFIED PIN (ASP) MODE - ACCESSING THE PRE-PROVISIONED CONTENTS OF A LOCKER .........

  • Page 4: Safety Instructions

    FUYL Tower Instructions - hardware with release software version 1.0.1 SAFETY INSTRUCTIONS For your safety – Do not operate the unit if the plug, power socket or power cable is damaged. To reduce the risk of fire, electrical shock and/or injury, the following basic precautions should be followed: This device is not intended for use by persons (including children) with reduced physical, sensory and mental •...

  • Page 5: Installation

    4) Locate the 4 adjustable feet and screw them into the corner brackets at the base of the cabinet. 5) Manoeuvre the FUYL Tower into an upright position by raising it out of the carton. Use lifting apparatus if necessary for safe lifting. Please discard the packaging with thought for the environment.

  • Page 6: Setup

    FUYL Tower Instructions - hardware with release software version 1.0.1 SETUP Switch on power to the locker. The controller will take approximately 3 minutes to initialise and boot, and then all fifteen locker doors will turn green (or red if a door is open) indicating they are ready for use. The default FUYL Tower usage mode is “User Specified PIN Mode”...

  • Page 7: General Use

    USB port, depending on the device. Note: charging cables are not supplied with the FUYL Tower. 2. Enter a locker number on the keypad. 3. Press OK to proceed to the PIN/RFID entry screen.

  • Page 8: Admin Specified Pin (Asp) Mode - Accessing The Pre-Provisioned Contents Of A Locker

    FUYL Tower Instructions - hardware with release software version 1.0.1 ADMIN SPECIFIED PIN (ASP) MODE - ACCESSING THE PRE-PROVISIONED CONTENTS OF A LOCKER In the ASP Mode, the user has been given a compartment number along with the PIN or RFID Using the keypad, access card.

  • Page 9: Unusual Circumstances

    UNUSUAL CIRCUMSTANCES LOCKER BREACH If the FUYL Tower detects that a locker door was opened without the PIN code being entered (i.e. with a forced entry) an alarm flag will be raised in the management portal. The FUYL Tower will still be operational so that other users can retrieve their items.

  • Page 10: Administration

    Lockers need to be emptied or cleaned out. The primary way for the administrator to perform these functions is using the admin keypad override mode. Note: If power has failed to the FUYL Tower, and the doors need to be opened, refer to the next...

  • Page 11: Admin Override Mode - Menu Options

    Press 6 to see the release version of the software. Option 7 should always be used before the FUYL Tower is switched off so any unsaved data can be stored away properly, and Option 8 is used to reboot the Tower.
  • Page 12 FUYL Tower Instructions - hardware with release software version 1.0.1 All 15 lock modules are now accessible. Locate the lock module for the bay you wish to override and open pg. 12...
  • Page 13 FUYL Tower Instructions - hardware with release software version 1.0.1 Firmly press down on the lever on the top left of the lock module to release that door. Use the levers on the lock modules to unlock all the doors needed, then close and lock the side panel door.

  • Page 14: Local Management Portal

    Offsite administration is not supported, see the Cloud Management Portal for this functionality. There is a separate user guide for the portal which covers the setup process and instructions for use. Please refer to the FUYL Tower Local Management Portal User Guide.

  • Page 15: Warranty

    Evidence of original purchase will be required to obtain warranty service. In the event that a defect, malfunction or failure occurs or is discovered during the warranty period, PC Locs/LocknCharge will repair or replace, at its option, the products which in the reasonable judgment of PC Locs/LocknCharge are deemed defective.
