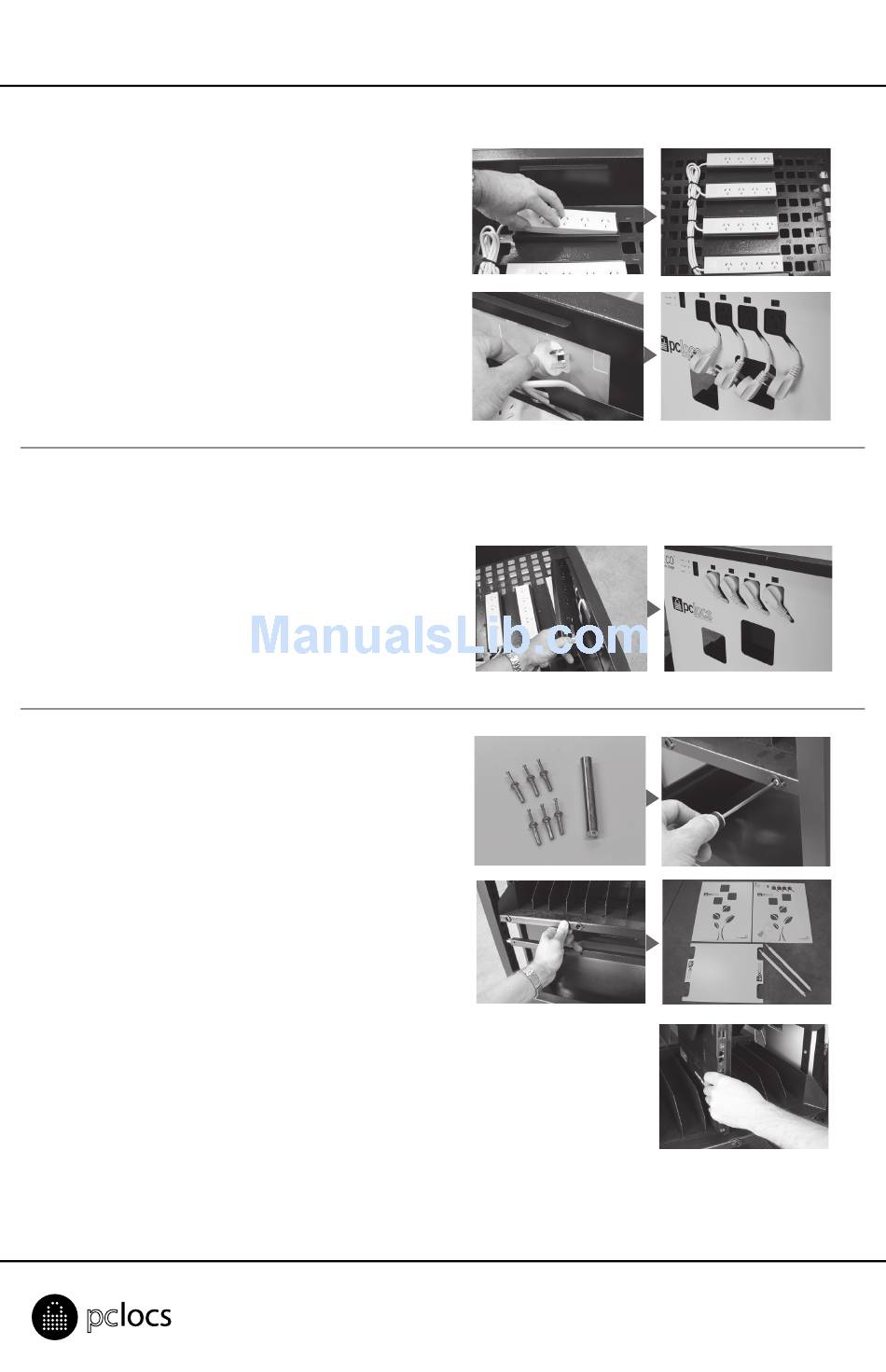

PC Locs Revolution ECO 16 Bay Trolley Instruction Manual page 4

Revolution ECO 16 and 28 Bay Trolley
Insert the 4-way Power Boards
Press the powerboards into the clips
in the tray top. If a powerboard is
loose in its clip, remove power board
then slightly squeeze the clip sides
together and refit the board
Insert the plugs through the hole in
the end of ECO board bracket and out
through coloured side panel square
holes.
Insert the ECO Safe Charge™
power board(s)
Insert the ECO Safe Charge™ power board in the
bracket located on the inside of the top tray. The
plug exits the frame through the adjacent square
hole. The four plugs can then be plugged into the
ECO board.
Use the cable ties to tidy up the leads.
Fix the adjustable laptop shelf
The fixings kit includes the 'hammer-in'
security pins and a punch bar.
Turn the trolley right side up. Using a Philips
head screwdriver remove the shipping screws
from both sides of the adjustable shelf unit.
Unpack the 'COLOUR PACK' -
side panels, locking bars, and fixings kit.
Note: for 16 bay only (28 bay panels come
installed)
Find the correct height for the shelf by
sliding one of the laptops you intend to use
into the trolley.
Adjust the shelf height as determined by the size of your laptop. Refit
the shelf support bar to both sides of the trolley frame and ensure the
holes in the bar are facing outwards to line up with the holes in the
edge of the shelf unit. Refit the laptop into the shelf, with the charging
lead plugged in, and check there is sufficient clearance for the laptop
to slide in and out easily. A closer fit means better laptop security.
trolley lid,
