PC Locs Revolution ECO 16 Bay Trolley Instruction Manual page 3

Extra Tools required:
Hammer, Philips head screwdriver, medium adjustable spanner. (Allen key supplied)
(Panel colours for illustration purposes only)

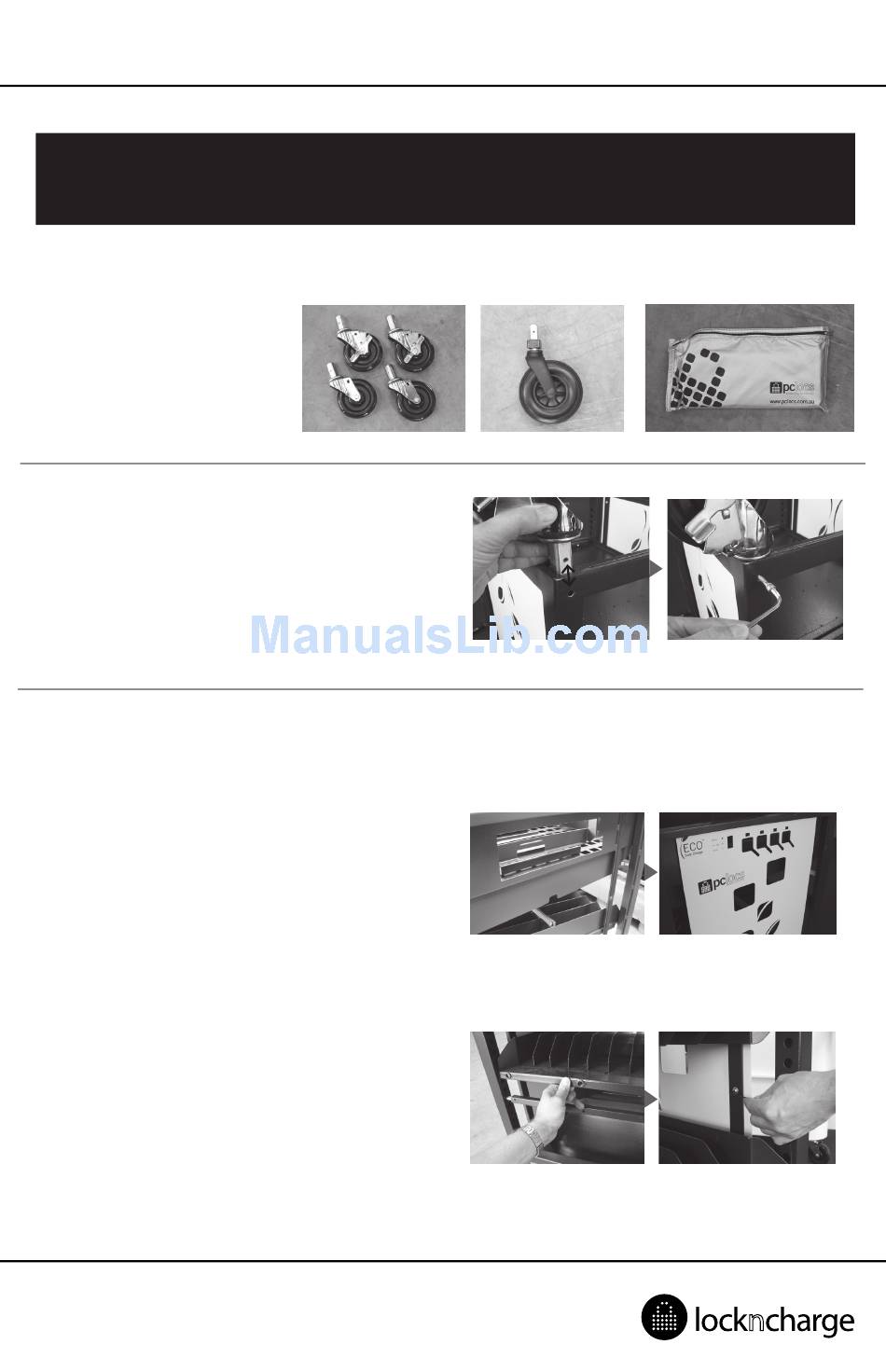

Unpack the trolley
The boxes in the
top of the Trolley
contain the wheels
and fittings.
Attach Castors
On a carpeted surface turn the trolley upside down.
Insert castor wheels into the leg ends and ensure
the threaded hole in the castor wheel post lines up
with the hole in the trolley leg. Screw in the socket
screw with a flat washer and a spring washer using
the Allen Key.
Fit the ECO power board side
panel (16 bay trolley)
Slide the panel up and under the top
rail on the side of the trolley that has
the large power board opening.
Using the small bolts and washers
secure the panel from the inside of the
trolley using the Allen Key (2 in the top
of the panel and 2 in the bottom)
Fit the other side panel to the trolley
using the same technique.
end of the adjustable shelf up off its
support bar and remove the bar.
Carefully let that end of the shelf down.
Repeat the process the other end of the
shelf, so that the shelf unit is in the
bottom of the trolley frame. Fix the last
2 Allen screws to the middle of each
colour side panel from inside the frame.
Standard castors
Lift one
INSTRUCTION MANUAL
PU Wheels Weather cover
(optional) (optional)
