Summary of Contents for PC Locs Revolution ECO 32 Wall Cabinet

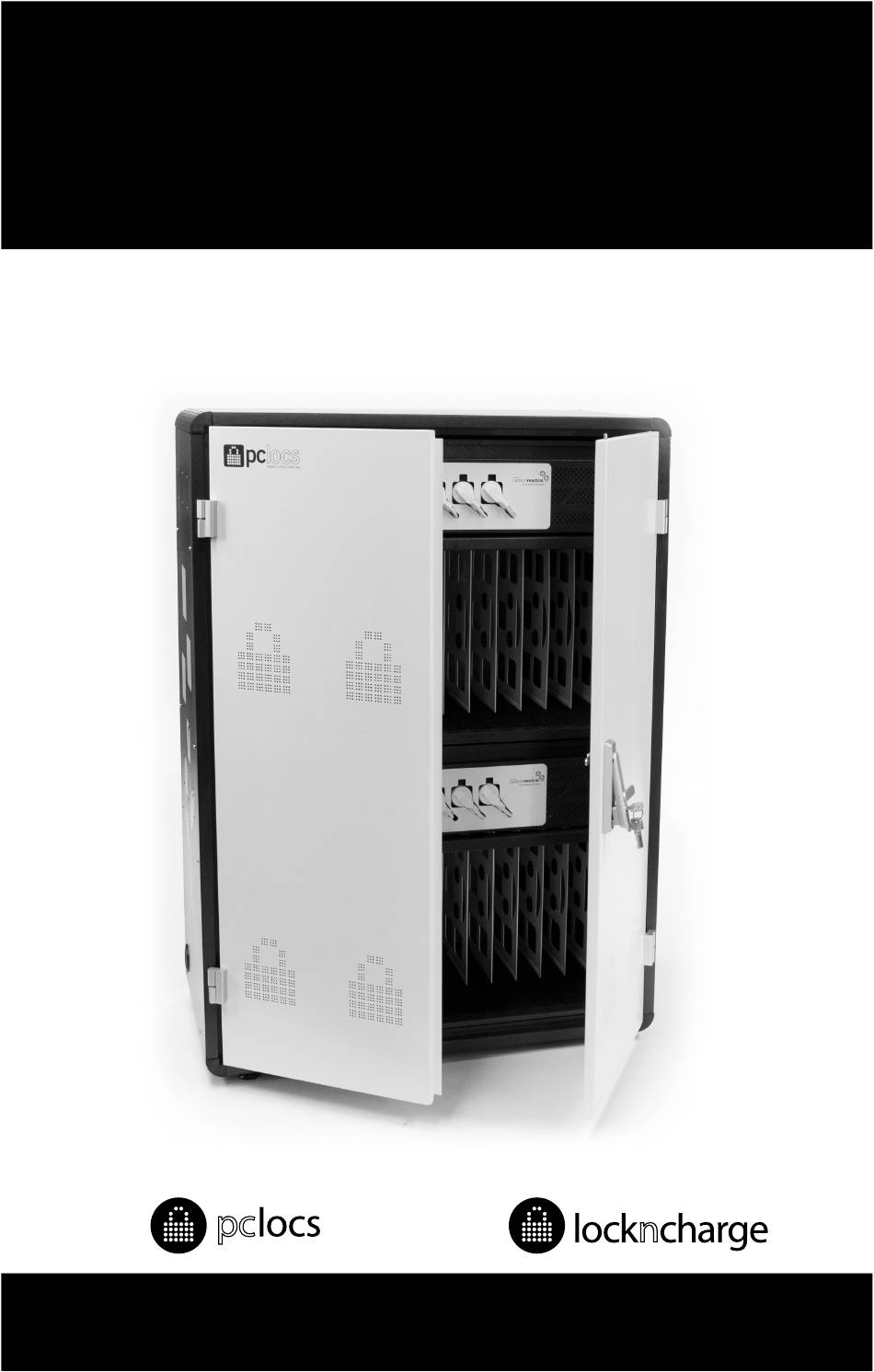

- Page 1 USER INSTRUCTIONS Revolution ECO 32 Wall Cabinet™ www.pclocs.com.au www.lockncharge.com...
- Page 2 Revolution ECO 32 Wall Cabinet Congratulations on your purchase. Follow these instructions for easy and fast set-up of your Revolution ECO 32 Wall Cabinet PC Locs, LocknCharge and the Padlock device are Trademarks of IWS Global Pty Ltd. Copyright IWS Global Pty Ltd, May 2014.
- Page 3 INSTRUCTION MANUAL STEP 1 ‐ Unlocking the doors: Open the key cover over the lock Insert the key and turn to unlock Swing the lock handle to open STEP 2 ‐ Remove Power drawers and place the drawers on a table. Depending on the type of drawer runner, release either by pulling the sliding lock or moving the lever up or down: Sliding lock type: Lever type: Note: After securing the cabinet, you should install the device chargers in the drawers STEP 3 ‐ Secure the Revolution Cabinet to a Wall (only applicable for a brick or concrete wall) Place the cabinet in the required location against the wall. Adjust the screw‐in feet so that the cabinet is Check level by inspecting the top of the doors: level: Incorrect Correct ...
- Page 4 Revolution ECO 32 Wall Cabinet Step 3 ‐ Continued… Open the doors and mark the holes to be drilled in the wall by putting a pencil through the securing boss (x2) in the top of the cabinet. Note: There are two more bosses at the bottom of the cabinet behind the lower drawer if you require extra securing points. Move the cabinet out of the way to drill the holes. After drilling the holes and inserting the plastic wall plug, move the cabinet back into position. Push the coach bolt through the Using a 10mm masonry bit drill two holes. cabinet hole and tighten with a Mark through this hole Insert the plastic wall plug into the wall spanner STEP 4 ‐ Placing the power boards into the drawers Run the cables and plugs through the Insert the ECO Safe Charge™ Insert the 4 way power boards front plate board Plug the 4 way power board plugs Remove the dividers to make into the ECO Safe Charge board Remove the dividers retaining bar it easier to feed the plug ...
- Page 5 INSTRUCTION MANUAL Step 4 Continued… Feed the ECO Safe Charge cable through the Feed the plug and cable through the grommet in the side of the grommets down the cabinet base cabinet and plug it into a power socket STEP 5 ‐ Plug in the Laptop adaptors and arrange the cables (in the drawers on a table) Feed cables through grommets in base of Measure how long you want the If the clip is tight then the power drawer cable and retain in clip (~650mm) loosen with a screwdriver At this stage you require another person to help hold the drawer while you feed the cables through the shelf grommets. Once the cables are fed through the grommets the drawer can be replaced on the runners. Run the cable through the shelf above the Plug in the laptop – Ready to charge! Switch on mains power at laptop compartment and secure in the clip the wall outlet. Follow instructions for ECO Safe Charge board STEP 6 ‐ Lock the Revolution ECO 32 Wall Cabinet by reversing the sequence of STEP 1.
- Page 6 PC Locs/LocknCharge has been advised of the possibility of such damages. PC Locs/LocknCharge obligation is strictly and exclusively limited to the replacement or repair of any defective products.
- Page 7 INSTRUCTION MANUAL Compliances and Approvals...
- Page 8 www.pclocs.com.au www.lockncharge.com...
