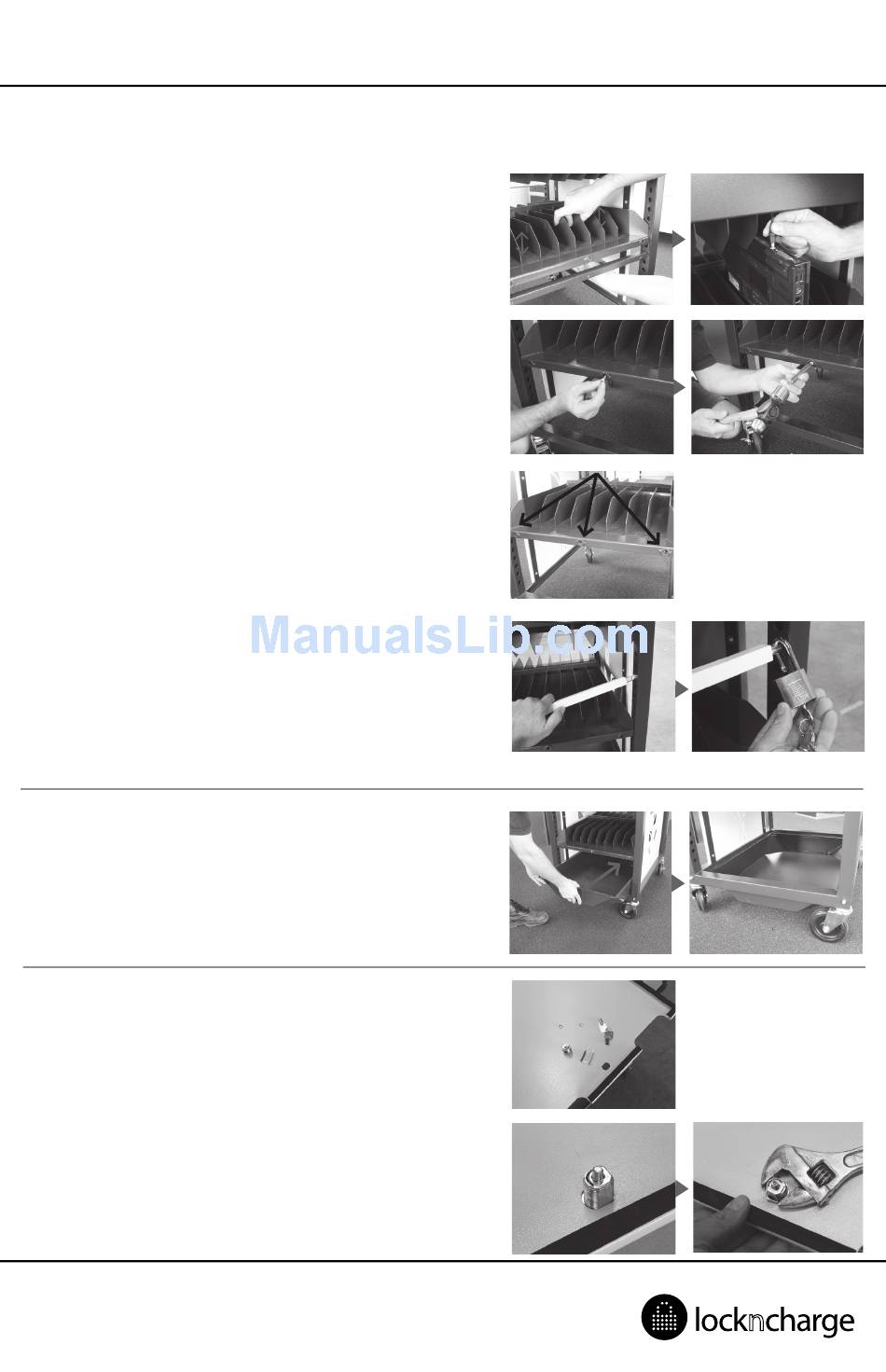

Fix the adjustable laptop shelf
(continued)
Check that the shelf is fitted level in the trolley frame
by counting the same number of locating holes above
the fitted shelf on each leg (there is an extra hole on
the bottom of one side for the lock pin). Check that
the holes in the shelf and the support bars line up by
slightly lifting the shelf off the bar.
Check again that your test laptop fits in the shelf unit
in ALL bays with its charge lead attached.
ONCE THE SHELF IS FIXED IT IS IMPOSSIBLE TO ADJUST THE HEIGHT.
Insert the M5 x 25mm Metal Fixing Pins into each of
the fixing holes on the shelf ends. Push them all the
way in until the shoulder of the pin is hard up against
the frame. Now using the supplied punch and your
hammer, punch the pin all the way in. It is designed to
spread out inside the trolley frame to prevent removal.
Repeat the process with all of the fixing holes.
Locking the trolley
The locking bar should be positioned in the shelf about
midway to ensure that the laptops cannot be removed.
Use a marker pen on the frame to indicate which holes
should be used for the locking bar each time. Use the
supplied padlocks to secure the locking bar. Keep the
keys in a secure place.
Install the bottom tray
Slide tray in from one end. Ensure tray sits flat
Installing the lockable lid
On a clean surface place the lockable lid upside
down Disassemble the cam lock as shown
Insert the Cam Lock from the underside with the
lock cam facing in the correct direction.
Now fit the locking nut over the main shaft of the
cam Lock and tighten using your spanner. DO NOT
OVER TIGHTEN as this may distort the lid.
