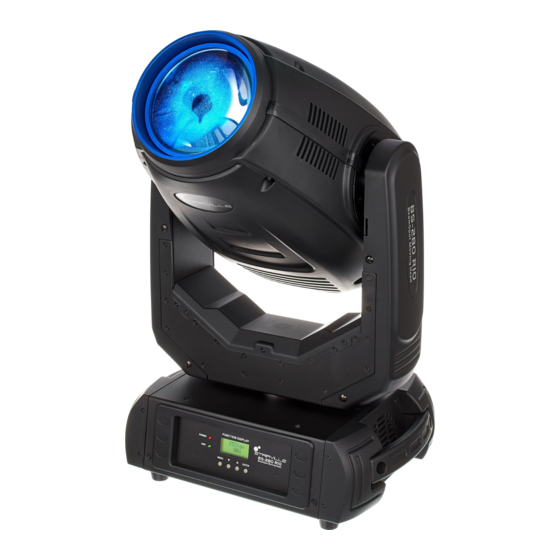

- Page 1 BS-280 R10 BeamSpot Moving Head...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 24.08.2023, ID: 399585 (V3)
-
Page 3: Table Of Contents
7.6 Functions in 15-channel DMX mode..............18 7.7 Functions in 21-channel DMX mode..............22 Maintenance........................... 27 8.1 Installing and replacing the lamp................27 Cleaning............................ 29 Troubleshooting........................30 Technical specifications....................31 Plug and connection assignments................32 Protecting the environment................... 33 BS-280 R10 BeamSpot Moving Head... - Page 4 BS-280 R10 BeamSpot Moving Head...
-
Page 5: General Information
Warning signs Type of danger Warning – high-voltage. Warning – hot surface. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. BS-280 R10 BeamSpot Moving Head... -
Page 6: Safety Instructions
The device surface and interior get very hot during operation. Skin contact can result in burns. Wait at least 15 minutes after switching off the device before starting any maintenance work. Before touching any parts inside the device, always ensure that all surfaces have cooled down sufficiently. BS-280 R10 BeamSpot Moving Head... - Page 7 The plasticiser contained in the rubber feet of this product may react with the coating of the floor and cause permanent dark stains after some time. If necessary, use a suitable mat or felt slide to prevent direct contact between the device’s rubber feet and the floor. BS-280 R10 BeamSpot Moving Head...
-
Page 8: Features
Four additional gobos included in the scope of delivery Two rotating and indexable effect prisms (8 round facets, 5 linear facets) Frost filter Motorised zoom, motorised focus Light source included in scope of delivery BS-280 R10 BeamSpot Moving Head... -
Page 9: Installation
Make sure that flammable materials are more than 12 m away. The dis‐ tance to inflammable materials must be at least 2 m. Do not operate the device in ambient temperatures above 40 °C. Always ensure sufficient ventilation at the operating location. BS-280 R10 BeamSpot Moving Head... - Page 10 Omega brackets. These are used to attach the flight adapters (half coupler, trigger clamps, C-hooks, etc.). The safety cable must be threaded through the cut-outs on the bottom of the housing. A Fastening element with quick release openings B Openings for safety cable C Safety cable BS-280 R10 BeamSpot Moving Head...
-
Page 11: Starting Up
DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). DMX indicator When the device and the DMX controller are operational, the “DMX” LED shows that a DMX signal is being received at the input. BS-280 R10 BeamSpot Moving Head... -
Page 12: Connections And Controls
Control panel, connection panel FUNCTION DISPLAY + , - . 7 [POWER] | The LED indicates that the device is connected to the power grid. 8 [DMX] | The LED indicates that a DMX signal is being received. BS-280 R10 BeamSpot Moving Head... - Page 13 17 [Power OUT] | Lockable PowerTwist output connector. 18 Fuse holder | If the fuse blows, replace it with a new fuse of the same type. You must first disconnect the device from the power supply. BS-280 R10 BeamSpot Moving Head...
-
Page 14: Operating
15-channel or 21-channel. This setting is only relevant when the device is controlled via DMX. When the display shows the required value, press [ENTER] and then [MENU]. Wait about 30 seconds to return to the main menu without making changes. BS-280 R10 BeamSpot Moving Head... - Page 15 30 seconds to return to the main menu without making changes. Firmware version Press [MENU] repeatedly until ‘Firmware Version’ appears on the display. Press [ENTER]. The display shows the firmware version of the device. Press [MENU] to close the firmware version display. BS-280 R10 BeamSpot Moving Head...
-
Page 16: Calibration
Rotation of the prisms in prism wheel 1 –127 ‘Prism2 Offset’ Prism wheel 2 ‘RPrism2 Offset’ Rotation of the prisms in prism wheel 2 –127 ‘Frost Offset’ Frost filter ‘Zoom Offset’ Mechanical zoom ‘Focus Offset’ Mechanical focus BS-280 R10 BeamSpot Moving Head... -
Page 17: Menu Overview
MENU Fixture Time Lamp on/off Lamp Power on Firmware Default Reset PooN PooF 7.5 Gobos Gobo wheel 1 ö & Gobo wheel 2 The following figure shows the available gobos and their numbers. ö & BS-280 R10 BeamSpot Moving Head... -
Page 18: Functions In 15-Channel Dmx Mode
Colour 3 (red/orange) 10…11 Colour 4 (orange) 12…13 Colour 5 (orange/cyan) 14…15 Colour 6 (cyan) 16…18 Colour 7 (cyan/green) 19…20 Colour 8 (green) 21…22 Colour 9 (green / mint green) 23…24 Colour 10 (mint green) BS-280 R10 BeamSpot Moving Head... - Page 19 Gobo 3 13…16 Gobo 4 17…20 Gobo 5 21…24 Gobo 6 25…28 Gobo 7 29…32 Gobo 8 33…36 Gobo 9 37…40 Gobo 10 41…44 Gobo 11 45…48 Gobo 12 49…52 Gobo 13 53…57 Gobo 14 BS-280 R10 BeamSpot Moving Head...
- Page 20 58…64 Gobo 9 65…71 Gobo 1 shake 72…78 Gobo 2 shake 79…85 Gobo 3 shake 86…92 Gobo 4 shake 93…99 Gobo 5 shake 100…106 Gobo 6 shake 107…113 Gobo 7 shake 114…120 Gobo 8 shake BS-280 R10 BeamSpot Moving Head...
- Page 21 Open 16…131 Shutter, increasing speed 132…167 Shutter closes quickly and opens slowly 168…203 Shutter closes slowly and opens quickly 204…239 Shutter, increasing speed 240…247 Shutter, random speed 248…255 Open 0…255 Dimmer from 0 to 100% BS-280 R10 BeamSpot Moving Head...
-
Page 22: Functions In 21-Channel Dmx Mode
No blackout during pan or tilt movement or during gobo wheel or colour wheel rotation 230…239 Lamp off 240…255 Not used Movement macros 0…7 8…15 Macro 1 16…23 Macro 2 24…31 Macro 3 32…39 Macro 4 40…47 Macro 5 48…55 Macro 6 56…63 Macro 7 64…71 Macro 8 BS-280 R10 BeamSpot Moving Head... - Page 23 Colour 3 (red/orange) 10…11 Colour 4 (orange) 12…13 Colour 5 (orange/cyan) 14…15 Colour 6 (cyan) 16…18 Colour 7 (cyan/green) 19…20 Colour 8 (green) 21…22 Colour 9 (green / mint green) 23…24 Colour 10 (mint green) BS-280 R10 BeamSpot Moving Head...
- Page 24 Gobo 3 13…16 Gobo 4 17…20 Gobo 5 21…24 Gobo 6 25…28 Gobo 7 29…32 Gobo 8 33…36 Gobo 9 37…40 Gobo 10 41…44 Gobo 11 45…48 Gobo 12 49…52 Gobo 13 53…57 Gobo 14 BS-280 R10 BeamSpot Moving Head...
- Page 25 58…64 Gobo 9 65…71 Gobo 1 shake 72…78 Gobo 2 shake 79…85 Gobo 3 shake 86…92 Gobo 4 shake 93…99 Gobo 5 shake 100…106 Gobo 6 shake 107…113 Gobo 7 shake 114…120 Gobo 8 shake BS-280 R10 BeamSpot Moving Head...
- Page 26 Open 16…131 Shutter, increasing speed 132…167 Shutter closes quickly and opens slowly 168…203 Shutter closes slowly and opens quickly 204…239 Shutter, increasing speed 240…247 Shutter, random speed 248…255 Open 0…255 Dimmer from 0 to 100% BS-280 R10 BeamSpot Moving Head...
-
Page 27: Maintenance
Damage to the device due to the use of incorrect illuminants! Any attempt to operate the unit with a light source other than that specified in this manual may result in serious damage to the device. Only use only light sources of the type specified. BS-280 R10 BeamSpot Moving Head... - Page 28 Carefully insert the new light source in the lamp socket and check that it fits securely. Put the top of the device back on and attach it with the four corresponding cross-head screws. Reconnect the device to the mains. BS-280 R10 BeamSpot Moving Head...
-
Page 29: Cleaning
Before cleaning, switch off the device and disconnect mains-oper‐ ated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. BS-280 R10 BeamSpot Moving Head... -
Page 30: Troubleshooting
DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. BS-280 R10 BeamSpot Moving Head... -
Page 31: Technical Specifications
International Protection Rating IP20 Mounting options Hanging, standing Dimensions (W × H × D) 365 mm × 574 mm × 256 mm Weight 17 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non- condensing) BS-280 R10 BeamSpot Moving Head... -
Page 32: Plug And Connection Assignments
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suit‐ able XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) BS-280 R10 BeamSpot Moving Head... -
Page 33: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. BS-280 R10 BeamSpot Moving Head... - Page 34 Notes BS-280 R10 BeamSpot Moving Head...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
