torque
Achieving proper torque is vital to
ensuring the safe performance and
function of the SNIPER frame. Failure
to do so could result in sub-optimal
performance of your frame as well as
premature wear and tear of individual
parts.
additional reference
In addition to this chart, all torque
values are laser etched onto
corresponding hardware for your
reference.

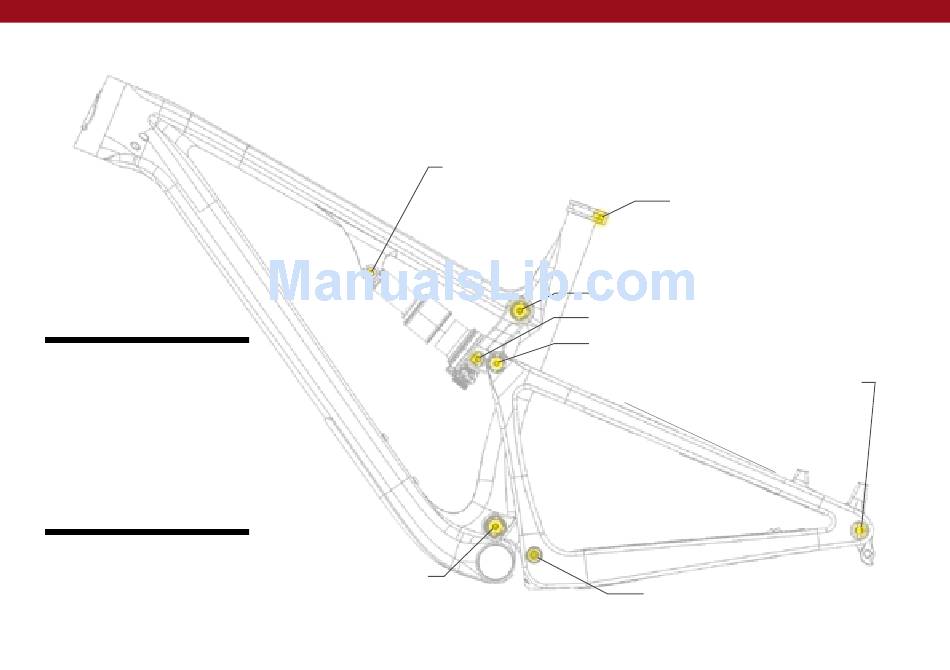

torque chart

10 Nm / 88 in/lbs
12 Nm / 106 in/lbs
4 Nm / 35.5 in/lbs
12 Nm / 106 in/lbs
16 Nm / 140 in/lbs
16 Nm / 140 in/lbs
Derailleur Cap: 11 Nm / 100 in/lbs
Axle (non-drive side): 10 Nm / 88 in/lbs
M8 HEX 7 Nm / 60 in/lbs
M5 HEX 14 Nm / 125 in/lbs
