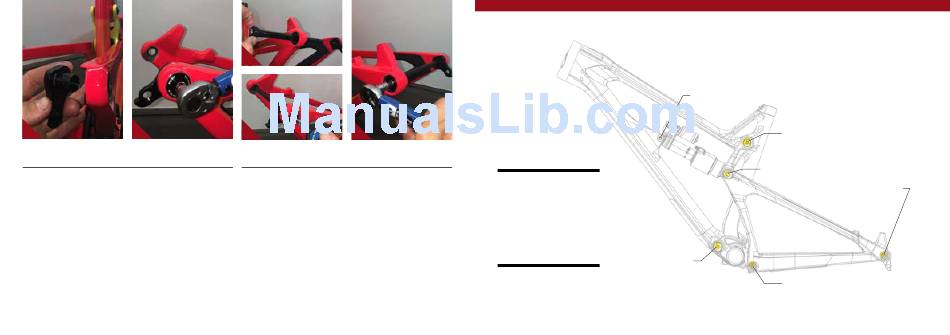

INSTALLING DERAILLEUR HANGER //
A B
Apply a thin layer of grease to the Install derailleur cap (#130798) using
derailleur hanger (#130790) shank and a 6MM allen key and torque to 11 NM /
install into the keyed insert on the drive 100 in/lbs (IMAGE #23).
side of the rear triangle (IMAGE #22).
1 2 / / t r a c e r c a r b o n u s e r
24
25 26
R E A R A X L E //
A C
Insert 148 x 12MM rear axle (#130757) Back on the non-drive side, use the
into axle opening on non-drive side 5MM allen wrench to torque the cone
(IMAGE #24). adjuster (#130807) with the M6 x 22MM
(#410032) down to 14 NM / 125 in/lbs
B
From drive side, insert 5MM allen key (IMAGE #26).
through the derailleur cap to reach the
5MM HEX interface on the axle. Turn
wrench in a counter clockwise direction
to tighten and clockwise to loosen. Torque
to 11 NM / 100 in/lbs (IMAGE #25).
m a n u a l
torque
Achieving proper torque is vital to
ensuring the safe performance and
function of the tracer carbon frame.
Failure to do so could result in sub-
optimal performance of your frame
as well as premature wear and tear
of individual parts.
20 Nm / 175 in/lbs
additional reference
In addition to this chart, all torque
values are laser etched onto
corresponding hardware for your
reference.

torque chart

14 Nm / 125 in/lbs
20 Nm / 175 in/lbs
16 Nm / 140 in/lbs
Derailleur Cap: 11 Nm / 100 in/lbs
Axle (drive side): 11 Nm / 100 in/lbs
Axle (non-drive side): 14 Nm / 125 in/lbs
M8 HEX 7 Nm / 60 in/lbs
M6 HEX 14 Nm / 125 in/lbs
