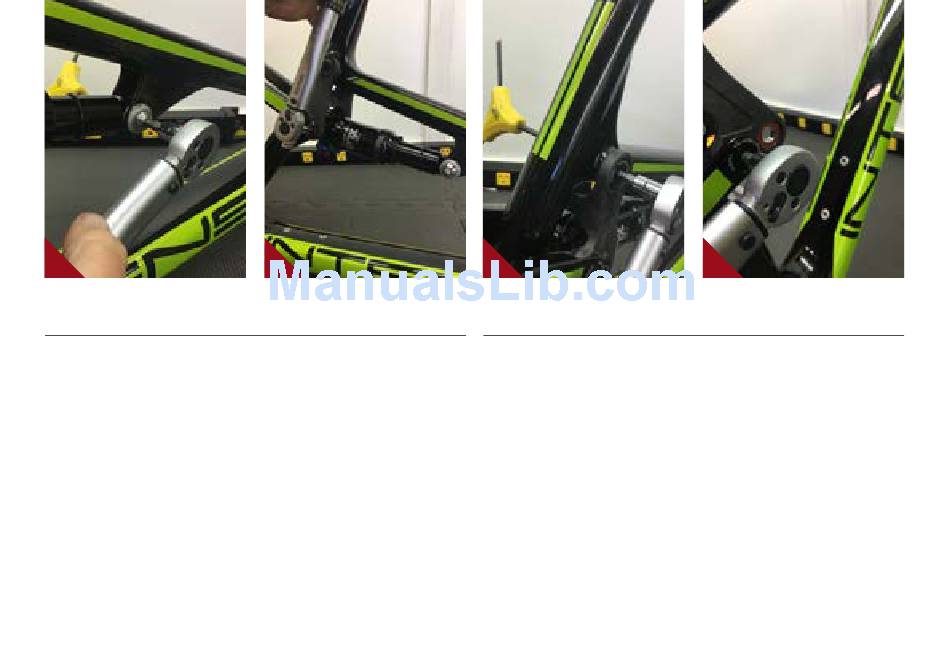

S H O C K T O R Q U E P R O C E D U R E //
A
Using a 5mm hex key and a 5mm hex
bit on a torque wrench, tighten shock
bolt (#410066 &410067) to 10 nm /
88 in-lbs (IMAGE #22).
1 4 / / S N I P E R
23
B
Using a 5mm hex bit on a torque
wrench, tighten trunnion bolts (#130833)
to 16 nm / 140 in-lbs (IMAGE #23).
u s e r m a n u a l
24
T O P L I N K T O R Q U E P R O C E D U R E //
A
First step here is to tighten the top link
pivot axle (#130828 & #130829). Using
a 6mm hex wrench and a 5mm hex bit
on a torque wrench, tighten to 12 nm /
106 in-lbs (IMAGE #24).
25
B
Next we will tighten the clevis bolt
(#130834). Using a 5mm hex bit on a
torque wrench, tighten to 16 nm / 140
in-lbs (IMAGE #25).
