sNIPer trail

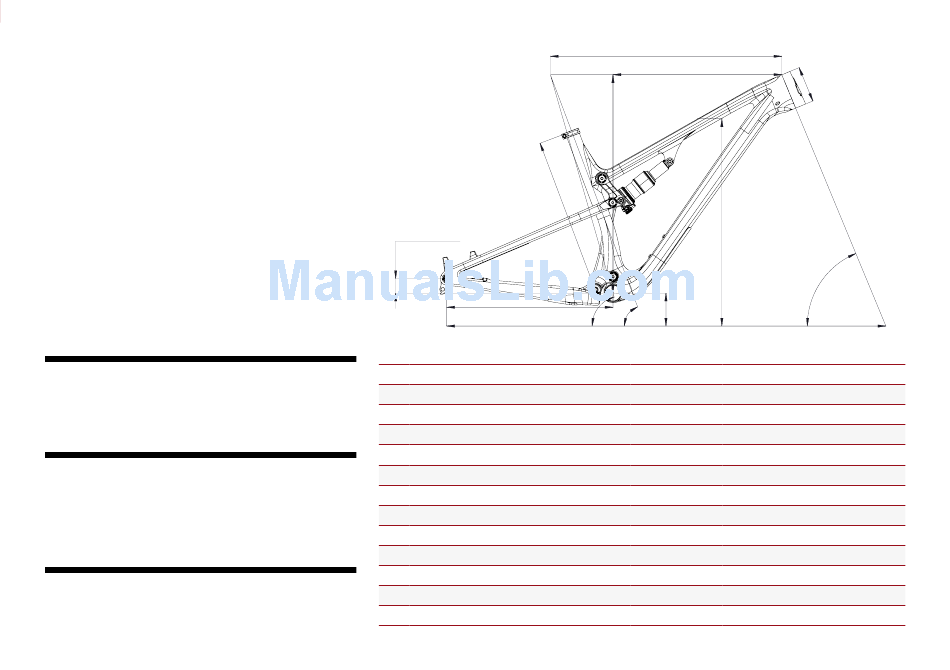

Geometry
GEOMETRY NOTEs
GEOMETRY TAKEN AT TOP OUT WITH 527.1MM axle to crown LENGTH
AND 51MM FORK OFFSET.
Component spec NOTE
the sniper trail is designed around the use of a single chain
ring only. Use of a double or triple ring set will not allow
proper clearance with the frame.
Warning
NOT INTENDED FOR USE WITH FORKS LARGER THAN 120MM OF TRAVEL.
K
BB Drop
C
A
A Wheel Base: 1142 mm / 45"
B Top Tube Length: 584 mm / 23.0"
C Chain Stay Length: 439 mm / 17.3"
D Head Tube Length: 90 mm / 3.54"
E Head Tube Angle:
F Reach: 421 mm / 16.6"
G Stack: 570 mm / 22.45"
H BB Height: 338 mm / 13.3"
BB Drop 38 mm / 1.50"
I Seat Tube Angle (Effective):
J Seat Tube Angle (Actual):
K Seat Tube Length: 406 mm / 16"
L Standover Height: 779 mm / 30.7"
F
B
G
H L
I J
SMALL MEDIUM
1168 mm / 46" 1195 mm / 47"
609 mm / 24.0" 635 mm / 25"
439 mm / 17.3" 439 mm / 17.3"
95 mm / 3.7" 105 mm / 4.13"
66.5˚ 66.5˚
444.5 mm / 17.5" 468 mm / 18.4"
575 mm / 22.6" 584 mm / 23"
338 mm / 13.3" 338 mm / 13.3"
38 mm / 1.50" 38 mm / 1.50"
73˚ 73˚
68.4˚ 68.4˚
437 mm / 17.2" 488 mm / 19.2"
781 mm / 30.76" 786 mm / 31"
I N T E N S E
D
E
LARGE XLARGE
1221 mm / 48"
660 mm / 26"
439 mm / 17.3"
115 mm / 4.5"
66.5˚ 66.5˚
490 mm / 19.3"
593 mm / 23.4"
330 mm / 13.0"
38 mm / 1.50"
73˚ 73˚
68.4˚ 68.4˚
538 mm / 21.2"
791 mm / 31.2"
C Y C L E S / / 7
