Intense Cycles Sniper Trail User Manual page 12

7
8

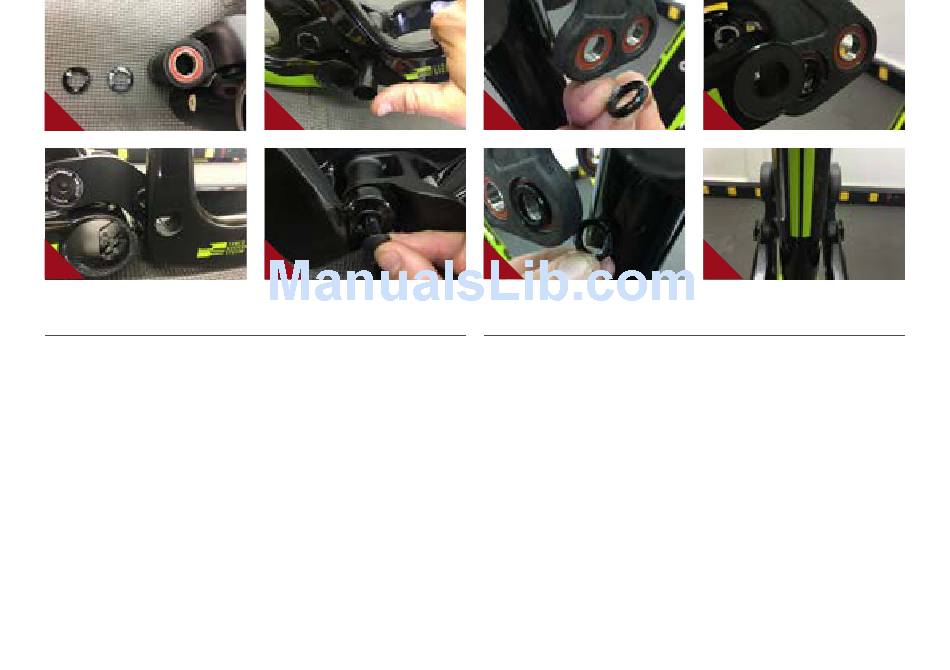

C O N N E C T I N G R E A R T R I A N G L E T O L O W E R L I N K //
A
Put a small dab of grease on the
outside bearing race as well as on
the contacting surface of the bearing
cap (#130765). This will help hold the
bearing caps in place during installation
(IMAGE #7).
B
Slide rear triangle over the lower link
and line up the pivot point over the
bearing caps (IMAGE #8).
1 2 / / S N I P E R
9
10
C
Insert greased main pivot bolt
(#130791) into non-drive side of lower
link. Insert 8mm hex wrench and tighten
till lightly snug. We will return with a
torque wrench after completed frame
assembly (IMAGE #9).
D
Insert push rivet (#140038) on the
drive side in the pivot axle (IMAGE #10).
u s e r m a n u a l
11
12
C O N N E C T I N G R E A R T R I A N G L E T O T O P L I N K //
A
Put a small dab of grease on the
outside/inside bearing races as well as
on the contacting surface of the bearing
spacers (#130832). Be sure to place a
greased bearing spacer on both the
outside and inside bearing faces. You
will use a total of 4 spacers for this
step (IMAGE #11 and #12).
13
14
B
Swing the rear triangle up to line up
pivot point with upper link bearing cap
(IMAGE #13).
C
Insert clevis bolts (#130834) into
drive side and non-drive side seat stays.
Tighten by hand until snug. We will come
back with 5mm hex torque wrench after
complete frame assembly (IMAGE #14).
