Intense Cycles Sniper Trail User Manual page 13

15
16

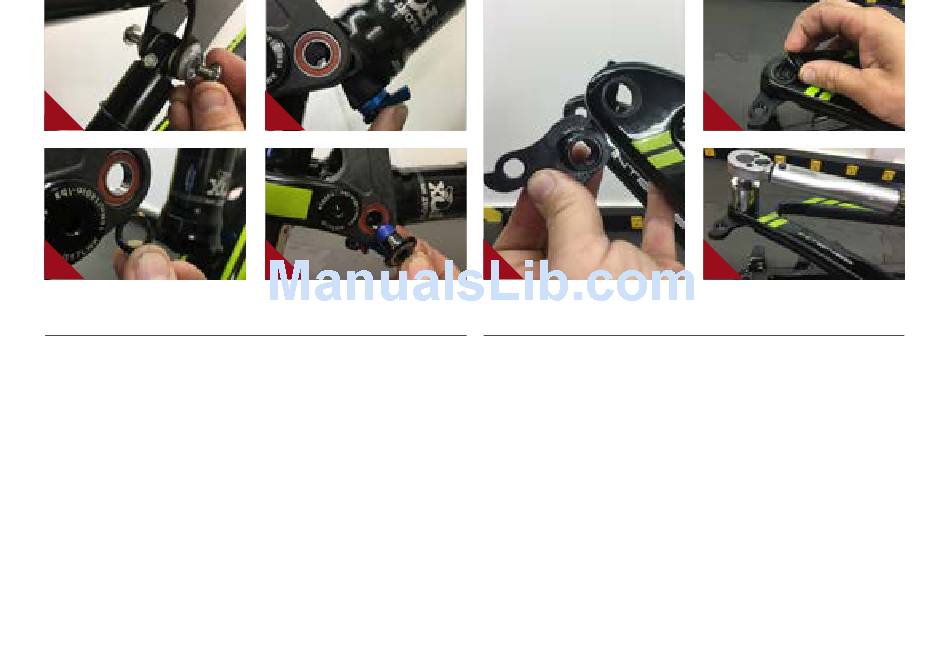

I N S TA L L I N G R E A R S H O C K //
A
Holding the shock with the shaft and
eyelet pointing towards the front of the
bike, align shock eyelet with shock tab.
Insert shock shoulder bolt (#410067) from
non-drive side and thread in shock shoulder
bolt (#410066) on drive side (IMAGE #15).
Tighten until snug by hand and we will
return with a 5mm hex key and torque
wrench after completed frame assembly.
17
18
B
Put a small dab of grease on the bearing
spacer (#130832) and place on inside
facing bearing race. You will be using 2
bearing spacers for this step. Then gently
pivot shock trunnion mount tabs into place
and align (IMAGE #16 and #17).
C
Insert and thread in trunnion bolt
(#130833) on drive side and non-drive
side and tighten by hand until snug. We
will return with a 5mm hex key torque
wrench after completed frame assembly
(IMAGE #18).
19
INSTALLING DERAILLEUR HANGER //
A
Apply a thin layer of grease to the
derailleur hanger (#130826) shank and
install into the keyed insert on the drive
side of the rear triangle (IMAGE #19).
I N T E N S E
20
21
B
Install derailleur hanger nut (#130827)
using a 19mm socket, torque to 11 nm /
100 in-lbs (IMAGE #20 and #21).
C Y C L E S / / 1 3
