Summary of Contents for Cozy N Safe ETNA i-Size

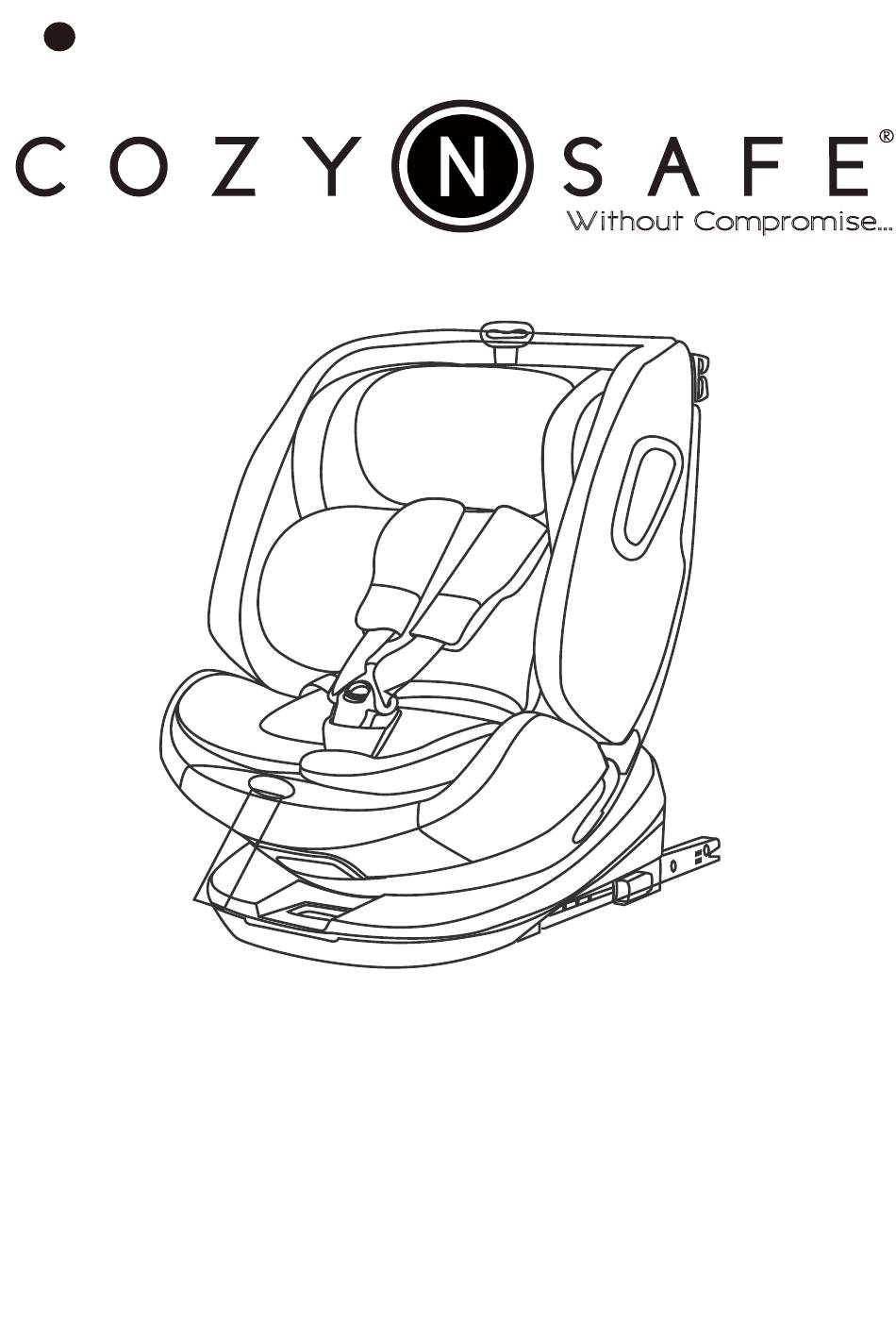

- Page 1 40cm-150cm Without Compromise... E T N A i-Size EST - 839 Instruction Manual...
- Page 2 ..............................www.cozynsafe.com Cozy N Safe Oxford Street, Wolverhampton, West Midlands, WV14 7DP, UK...
- Page 3 USER'S MANUAL We are honored that our child safety seat can accompany your child safely through a new stage of life. To ensure your child's safety, please install and use this child safety seat correctly as described in this manual. Please feel free to contact us if you have any questions about use.
- Page 4 Safety instructions 1. Please read this manual carefully, otherwise improper installation will lead to serious injury.In this case, the manufacturer will not be held liable 2.This ECRS is suitable for children of 40-150cm height. 3. For use with Vehicle seat belts, only apply if the applicable model is equipped with 3-point belt with retractor as required by ECE R129 4.(a) Child restraint systems shall not be used without Seat covers.
- Page 5 Warning: 1.As an important part of the child restraint system to protect the safety of children, the belt should ensure that it can well restrain the pelvic region when worn (see the installation instructions on the following page). 2. For ISOFIX type child restraint systems, the user must read the description of ISOFIX fixing points in the automobile manufacturer's manual 3.
- Page 6 2. Components of safety seat: 01 headrest adjusting handle 02 shoulder strap guide hook 03 head restraint 04 shoulder sheath 05 inner liner 06 shoulder strap 07 snap 08 snap pad 09 quick adjustment button 10 adjusting belt 11 angle adjustment handle 12 rotary adjustment handle...
- Page 7 3. Precautions for vehicle use Warning: under no circumstances should the child restraint system be used on the car seat with airbag enabled. correct installation /Applicable Wrong installation/Not Applicable Vehicle seat belt -Shoulder belt Vehicle seat belt-Lap Belt Allowed to Install The seat may not be installed in the area of effect of an airbag Not allowed to Install...
- Page 8 3. Precautions for vehicle use Before using ISOFIX and TT straps, check whether the car seat is equipped with ISOFIX fixed anchor points and whether the size category matches. The car seat is equipped with ISOFIX fixed anchor points and ISOFIX size category match before using.
- Page 9 4.Baby car seat installation About 4-1 Rearward facing 40-105cm Birth- 3 yeas ISOFIX +Top tether + Harness 1. Hold the Angle and rotate the adjusting handle 11, then rotate the seat to the car's Rear, the child seat is in reverse mode, facing back. 2.
- Page 10 2. Hold down ISOFIX lock button 16 and ISOFIX lock release button 17, and pull ISOFIX18 to the end position 3. The left and right ISOFIX18 buckle to the ISOFIX fixed point J of the car, hear the "click" sound, ISOFIX left and right sides,It shows "green", which means it is closed. 4.
- Page 11 2. Pull Top Tether 13 through car headrest. 3. Hook the top tether hook 15 to the fixed point of the car seat according to the car manual, and tighten the top tether 13(when it is tightened, the button will display "green"...
- Page 12 4-2 Forward facing About 18 months 76-105cm to 3 years ISOFIX+ Top tether+ Harness 180° 1. Hold the Angle and rotate the adjusting handle 11, then rotate the seat to the car's Forward, the child seat is in forward mode, facing forward. 2.
- Page 13 2 Hold down ISOFIX double lock button 16 and ISOFIX release button 17 at the same time, and pull ISOFIX18 backward to the final position. 3. The left and right ISOFIX18 buckle to the ISOFIX fixed point J of the car, hear the "click"...
- Page 14 2. Pull belt 13 through car headrest. 3. Hook the top tether hook 15 to the fixed point of the car seat according to the car manual, and tighten the top tether 13(when the pull-up belt adjust button 14 show "green") 4.
- Page 15 4-3 Forward facing About 100-150cm 3-12 years lSOFIX +Adult safety belt Hide your own 5-point safety belt when using vehicle safety belt (see 4-4 for details) Angle adjustment Pull the Angle of the seat and rotate the adjusting handle 11 to adjust the seat to the upright position.
- Page 16 3. Buckle both sides M-FIT18 to the ISOFIX fixed point J of the car, hear the sound of "click", the both sides of ISOFIX above the display of "green", indicating that the buckle. 4. Push the seat inward so that the back of the child seat is against the back of the car.
- Page 17 Notice 1. Check and tighten the vehicle shoulder belt and lap belt to ensure that the seat and children are firmly fixed. 2. The shoulder strap and lap belt of the vehicle safety belt should not be twisted or wound. 3.
- Page 18 Vehicle seat belt fix the child car seat 1. Place the child in the child car seat 2. Pass the Vehicle seat belt S through the strap guide hook and around the child's shoulder. 3. The car cut the belt belt T through the lap belt guide12, and around the child's pelvis.
- Page 19 4-5 Remove ISOFIX and top tether ISOFIX removing car seat Press ISOFIX release button 17 and ISOFIX double lock button 16 at the same time and hear the "click" to remove ISOFIX18 from the car seat. Top Tether dismount Press the adjustable button 14 of top tether first to loosen the top tether 13, and then remove the pull-up belt 15 from the fixed pot...
- Page 20 5.Adjustment of child car seat 5-1 5 point belt adjustment Loosen: press the quick regulator button 9 at the front with one hand, grab the two shoulder straps 6 with one hand (do not pull shoulder jacket 4), and pull them towards the front of the seat. Tighten: hold the adjusting belt 10 and slowly pull it forward.
- Page 21 5-2 car seat recline angle adjustment reverse angle adjustment 1. Grasp the Angle and rotation adjustment handle 11, and then rotate the seat to the rear of the car, so that the child car seat is in rearward mode, facing backward. 2.
- Page 22 Reverse angle adjustment 1. Grasp the Angle and rotation adjustment handle 11, and then rotate the seat to the front of the car, so that the child safety seat is in forward mode, facing forward. 2. Pull the Angle of the seat and rotate the adjusting handle 11 to adjust the seat to the most appropriate position.
- Page 23 Up: pull the head pillow at the top of the seat to adjust the handle 2 and lift up. Down: one hand hold the head pillow at the top of the seat to adjust handle 2, lift up, one hand hold the head pillow 1, press down, you can lower the head pillow.
- Page 24 5-4 Buckle adjustment Reminder Press the red button on the buckle to release it Insert the left and right buckle inserts B together into buckle 7. "click" sound is heard, indicating that the buckle is fastened. 5-5 use of cushion Cushion is suitable for children of 40-75cm height.
- Page 25 7. Cleaning and maintenance mportant note: Seat Fabric cover is an important part of car child car seat , do not use the car without seat fabric cover also do not use other products to replace the original seat cover, this will put the child in danger Risks.Be- cause other products can not protect the child as the original one Washing instructions: seat cover cleaning: removable, can be washed in water temperature...
- Page 26 8.Matters need attention EST-839 40-150cm About 0-12years NOTICE regarding i-Size category Enhanced Child Restraint Systems (40-105cm) This is an i-Size En hanced Child Restraint System. It is approved according to UN Regulation No. 129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufac- turers in the vehicle users' manual.
