Summary of Contents for HMS FLB 3271

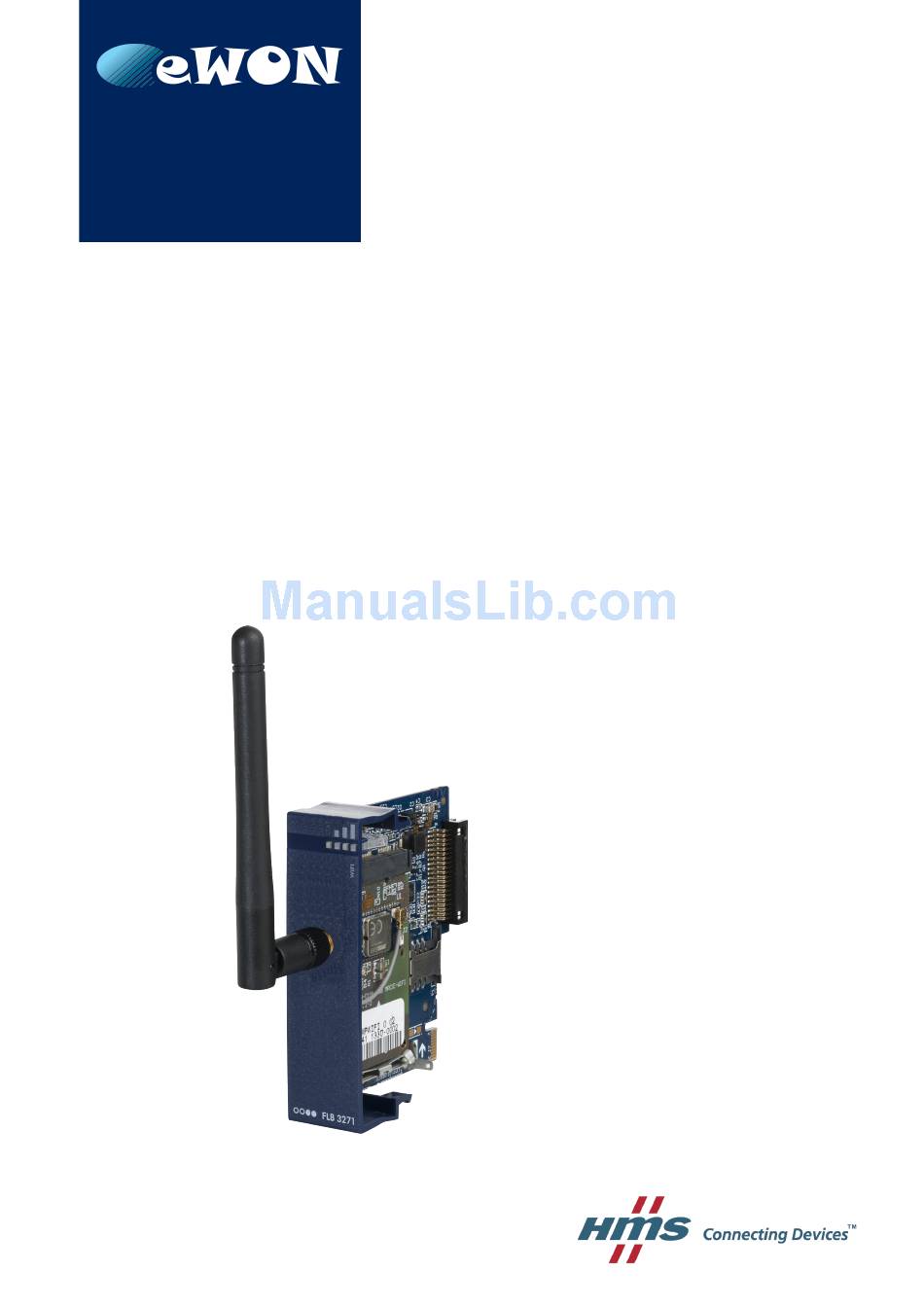

- Page 1 FLB 3271 - Wi-Fi Extension Card INSTALLATION GUIDE IG-0020-00 1.6 ENGLISH...
- Page 2 Important User Information Liability Every care has been taken in the preparation of this document. Please inform HMS Industrial Networks SA of any inaccuracies or omissions. The data and illustrations found in this document are not binding. We, HMS Industrial Networks SA, reserve the right to modify our products in line with our policy of continuous product development.
-
Page 3: Table Of Contents
Hardware Description ....................7 Mechanical Layout and Interfaces ...................7 Extension Card Label .....................7 Front Panel LEDs......................8 Specifications of the FLB 3271 extension card ..............9 eWON Flexy Extension Card Environmental Conditions............9 Plugging the Extension Card into the Base Unit..............10 Extension Card Insertion ....................11 Powering on the Base Unit with its Extension Cards .......... - Page 4 This page intentionally left blank...
-
Page 5: Preface
CTS IG-0026-00 Trademark Information eWON ® is a registered trademark of HMS Industrial Networks SA. All other trademarks men- tioned in this document are the property of their respective holders. FLB 3271 - Wi-Fi Extension Card Installation Guide IG-0020-00 1.6... -
Page 6: Product Summary
4 (16) Product Summary The present Installation Guide is focusing on the FLB 3271 - Wi-Fi extension card which, as such, needs to be inserted in one of the Flexy base units to work. The base units have their own Installation Guide which can be found in the Related Documents. -
Page 7: Safety, Environmental & Regulatory Information
The FLB 3271 extension card complies with the Radio Equipment Directive (RE-D) 2014/53/EU and the FCC regulations related to the wireless modems. The FLB 3271 extension card inserted in a base unit belongs to class A Information Technology Equipment (ITE). In a domestic environment this product may cause radio interference in which case the user may be required to take appropriate measures. -
Page 8: Official Modem Identification
Safety, Environmental & Regulatory Information 6 (16) 3.3.3 FCC compliance The FLB 3271 extension card complies with Part 15B, 22H, 24E and 27 of the FCC Rules. Op- erating is subject to the following two conditions: • This product may not cause harmful interference •... -
Page 9: Hardware Description
Label Location and Included Information The identification label of the extension cards is placed on the solder side of the PCB. The different parts of the label are described below: FLB 3271 - Wi-Fi Extension Card Installation Guide IG-0020-00 1.6... -
Page 10: Front Panel Leds
●●●● Any slots XXXX_00 The FLB 3271 extension card. The suffix _00 is used for software options. The suffix might have an optional “/” character It might also be blank or include “S” character => Indicates compliance with the UL/IEC/EN 60950 standard. -
Page 11: Specifications Of The Flb 3271 Extension Card
Characteristics Value Operating Temperature -25 to +70°C Storage temperature -40 to +70°C Relative humidity 10 to 95% non-condensing Operating altitude Up to maximum 2000m Storage altitude Up to maximum 3000m FLB 3271 - Wi-Fi Extension Card Installation Guide IG-0020-00 1.6... -
Page 12: Plugging The Extension Card Into The Base Unit
Information) 4.6.2 Base Unit Slot Compatibility The FLB 3271 extension card must be inserted in one of the “B” slots of the base unit. The Flexy base units feature two types of slot: • The A slots are the first two slots starting from the left. -
Page 13: Extension Card Insertion
Therefore, the unit will not be accessible through its LAN interface. The slot error is returned by the USR LED. (red ON 1 sec, OFF 0.5 sec). FLB 3271 - Wi-Fi Extension Card Installation Guide IG-0020-00 1.6... - Page 14 An additional card of the same type will be ignored. Contrary to what happens when it is inserted in a wrong slot, the FLB 3271 extension card in ex- cess will not alter proper operation of the base unit and other extension cards.
-
Page 15: Powering On The Base Unit With Its Extension Cards
Extension card : None If the USR LED of the base unit is flashing red, it might be because the extension card was improperly inserted (for example in a wrong slot). FLB 3271 - Wi-Fi Extension Card Installation Guide IG-0020-00 1.6... -
Page 16: Check Card Detection On The Embedded Web Page
Once connected to the embedded web pages of the eWON device, go to theSystem page which allows the verification of the system’s status including detected extension cards. To ac- cess the system status summary, click on Diagnostic > Status > System Info > System. FLB 3271 - Wi-Fi Extension Card Installation Guide IG-0020-00 1.6... -
Page 17: A Configure The Wi-Fi Connection
Setup > Communication > Networking > Internet Connection > WIFI – WAN. If the FLB 3271 extension card is plugged-in and correctly detected, the available networks in the area are shown in the drop-down field near the Network Name field Select the network, supply the Network Passphrase and finish by clicking Update. - Page 18 © 2017 HMS Industrial Networks AB Box 4126 300 04 Halmstad, Sweden info@hms.se IG-0020-00 1.6.5477 / 2017-09-29T09:01:04...
