SELECT ENTER
Status Information
StA
Setup Options
OPS
Setup Change
CHG
SELECT Selects an active window
ENTER Enters menu/sub-menu
ESC Quits menu/sub-menu
Scrolls options forward
Scrolls options backward
18
ENTER
Password
PASS
Basic Setup
bASc
Port Setup
Port
Pulsing Setpoints
E PulS
Alarm/Event Setpoints
SetP
Relay Operation
rELo
Display Setup
diSP
Reset Functions
rSt
Selectable Options
OPtS
P E
Access Control
AccS

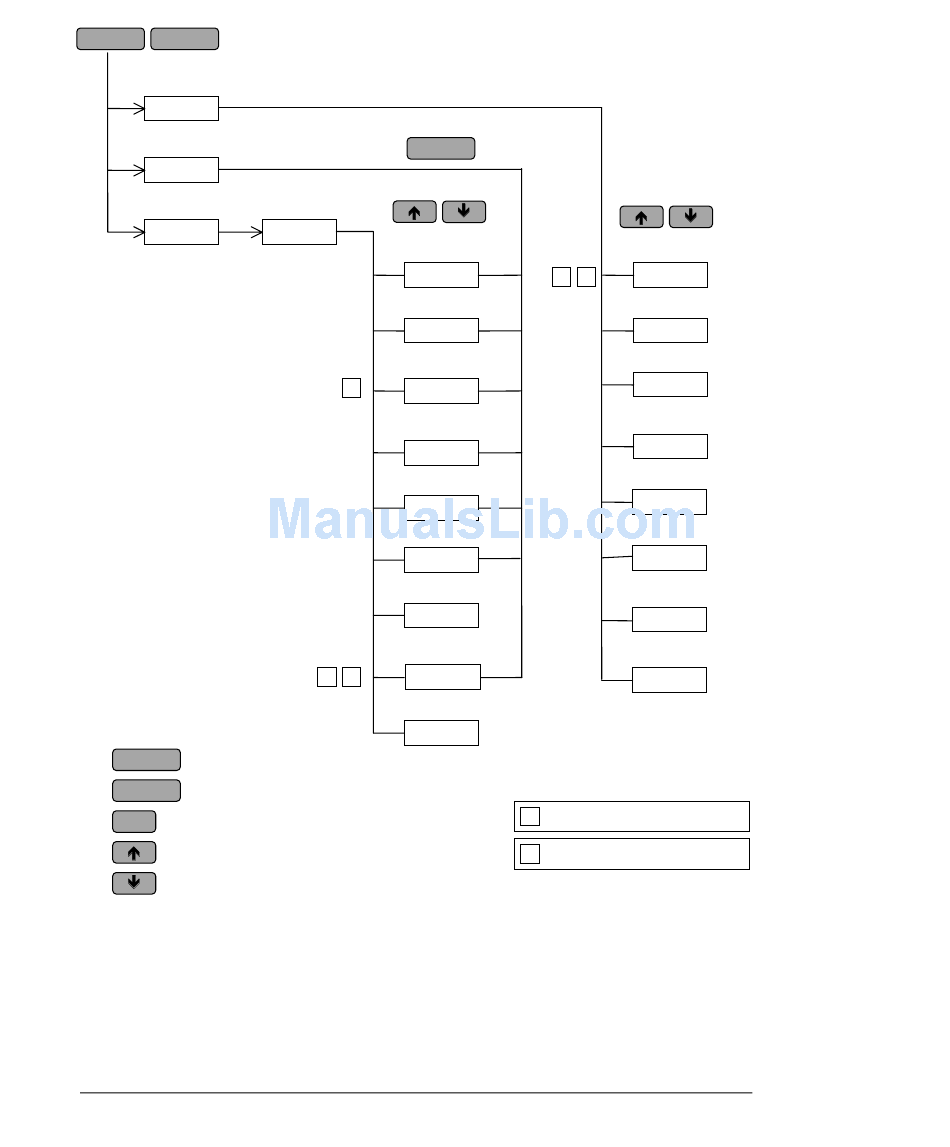

Figure 3-1 Menu Structure
Phase Rotation
PHAS
P E
Relay Status
rEL
Counter #1
Cnt.1
Counter #2
Cnt.2
Counter #3
Cnt.3
Counter #4
Cnt.4
Port status
Port
Alarm status
ALAr
available in the PM130P
P
available in the PM130E
E
Chapter 3 Using the Menus
