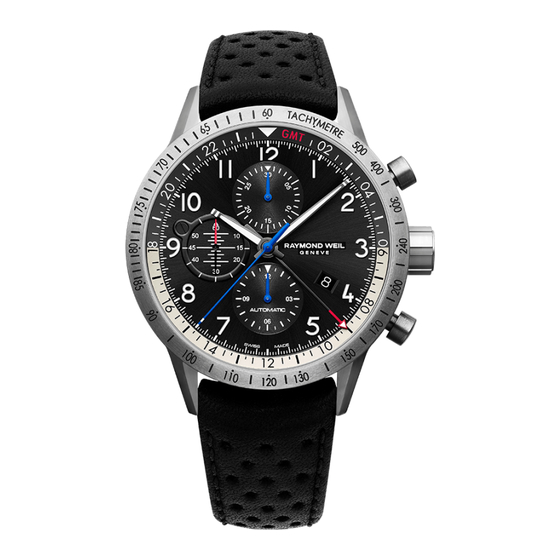

Raymond Weil 7754-TIC-05209 Instructions For Use

RAPID ADJUSTMENT OF THE DATE AND 24 HOURS HAND
Important: please do not make any rapid adjustment of the
date or the 24 hours hand between 8 p.m. and 2 a.m. as this may
damage the mechanism.
1. Unscrew the crown and pull it out to position (II).
2. Turn the crown clockwise until the desired date is displayed.
3. Turn the crown anticlockwise to set the 24 hours hand.
4. Push the crown back and screw it in to position (0).
CHRONOGRAPH
Note: Before starting a timing, check that the crown is pushed back
and screwed in to position (0) and return the hands of the counters
to zero by pressing button while the chronograph is stopped.
C
Simple or added timing
1. Press button to start the chronograph.
B
2. Press button
again to stop the chronograph. The elapsed
B
time or the first partial time is indicated by the hands of the
counters 5, 6 and 7.
3. Repeat these two steps for each additional timing. At the end
of the last timing, the chronograph will indicate the total time,
in other words the cumulative time of all the partial timings
added together.
4. Push button to return the counters to zero.
C
TACHYMETER*
Scale allowing measurement of average speed, for instance of a
vehicle over a distance of 1 kilometer or 1 mile.
Example: Start the chronograph at the beginning of a 1 kilometer
or 1 mile distance and stop it when this distance has been covered.
If the distance took 20 seconds to travel, the average speed is
180 km/h or 180 mph.
Note: Measurement is limited to 60 seconds.
*According to model
RAYMOND WEIL S.A.
Avenue Eugène-Lance 36-38
P.O. Box 1569
1211 Geneva 26
Switzerland
Tel +41 (0) 22 884 00 55
Fax +41 (0) 22 884 00 50
GE NER AL IN FO RMAT I O N
info@raymond-weil.ch
AFT ER S A LES S E RVI C E
customer-service@raymond-weil.ch
W EB SI TE
raymond-weil.com
I N ST R U C TI O N S F O R U SE
Cali ber 7 7 5 4
SELF-WINDING
CHRONOGRAPH WATCHES
